XKBN-00071
1
2
3
4
5
6
7
8
9
11
12
13
14
15
16
17
Позиция на иллюстрации
Заводской номер детали
Название детали
XKBN-00071
XKBN-00071

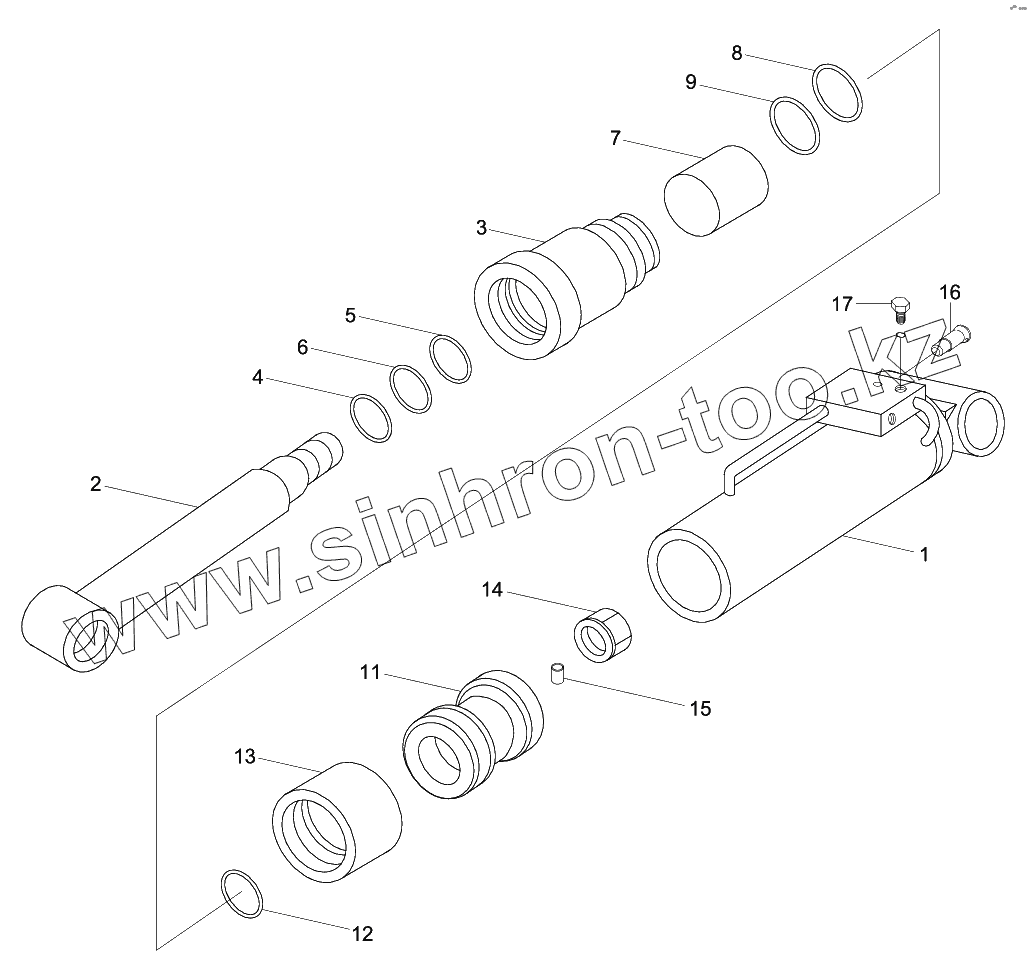

Cylinder Assy
1
XKBN-00117
Tube
2
XKBN-00118
Rod
3
XKBN-00119
Cover-Rod
4
XKBN-00120
Wiper-Dust
5
XKBN-00121
U-Packing
6
XKBN-00122
Ring-Back Up
7
XKBN-00123
Bush-Du
8
XKBN-00124
O-Ring
9
XKBN-00125
Ring-Back Up
11
XKBN-00126
Piston
12
XKBN-00127
O-RING
13
XKBN-00128
Seal-Compact
14
XKBN-00129
Nut-Tefron
15
XKBN-00130
Pin-Spring
16
XKBN-00131
CHECK VALVE-PILOT
17
XKBN-00132
BOLT-SOCKET PLUG
