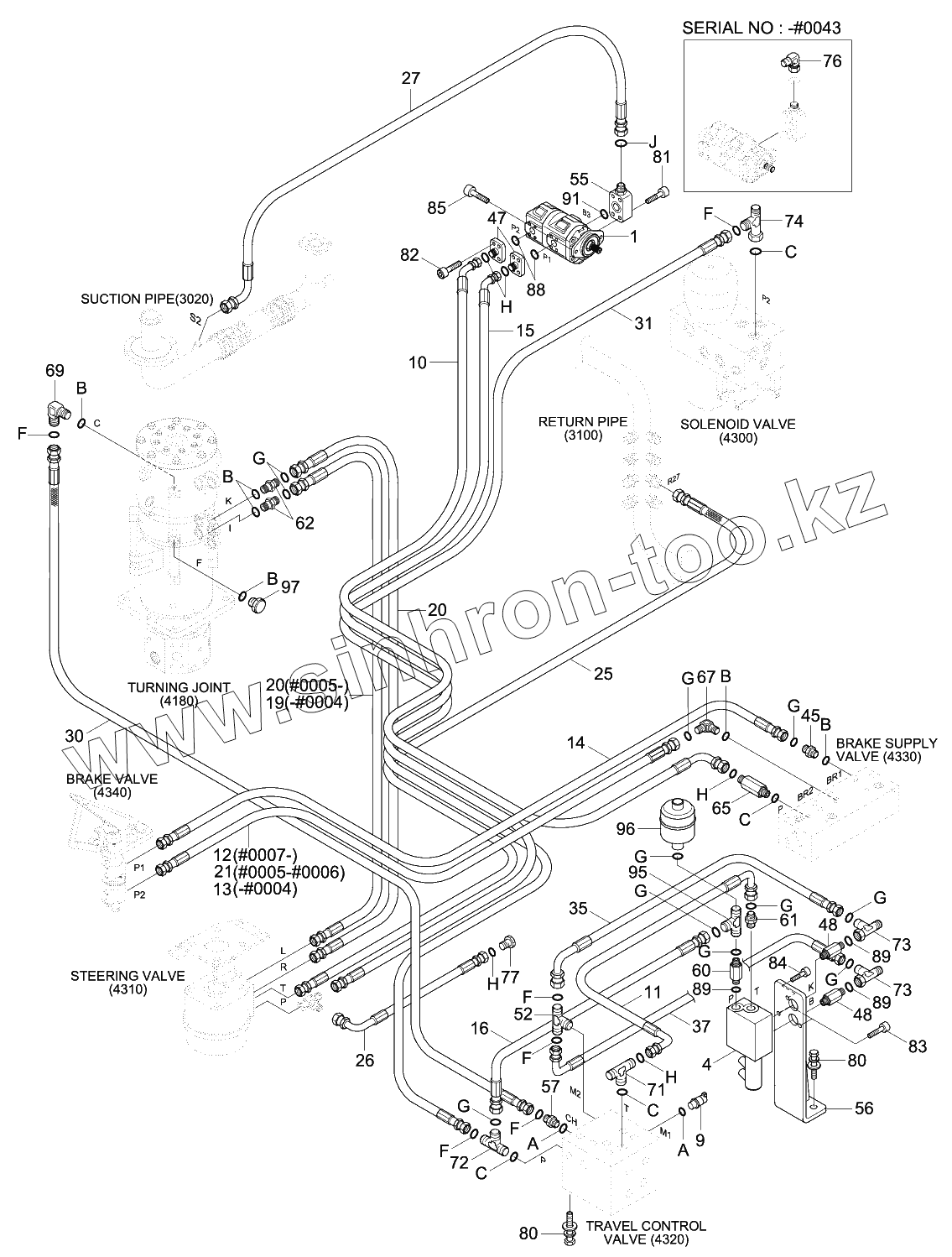

Каталог запасных частей к технике: Hyundai R140W-9. POWER TRAIN HYD PIPING 1
13
1
9
10
15
25
27
27
31
1
4
9
10
11
12
14
15
16
19
20
20
21
25
26
27
30
31
35
37
45
47
48
48
52
55
56
57
60
61
62
65
67
69
71
72
73
73
74
76
77
80
80
81
82
83
84
85
88
89
89
89
91
95
96
97
A
A
B
B
B
B
B
C
C
C
C
F
F
F
F
F
F
G
G
G
G
G
G
G
G
G
G
H
H
H
H
J
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 13 | P910-066047 | Hose Assy-Orfs 0x0 | |
| 1 | 31Q5-30030 | Power Train Pump | |
| 9 | 31Q4-40830 | SENSOR-PRESSURE | |
| 10 | 31Q4-30230 | Hose Assy | |
| 15 | P920-087087 | Hose Assy-Orfs 0x45 | |
| 25 | P910-082049 | Hose Assy-Orfs 0x0 | |
| 27 | P930-162019 | Hose Assy-Orfs 0x90 | |
| 27 | 31Q4-30260 | Hose Assy | |
| 31 | P910-082048 | Hose Assy-Orfs 0x0 | |
| 1 | 31Q5-30020 | Power Train Pump | |
| 4 | 31N4-30130 | Tcv Valve | |
| 9 | 31Q8-40520 | Sensor-Pressure | |
| 10 | 31N4-30241 | Hose Assy | |
| 11 | 31N4-30320 | Hose Assy-Orfs 90x90 | |
| 12 | P910-066047 | Hose Assy-Orfs 0x0 | |
| 14 | P910-066048 | Hose Assy-Orfs 0x0 | |
| 15 | P920-087083 | Hose Assy-Orfs 0x45 | |
| 16 | P910-062008 | Hose Assy-Orfs 0x0 | |
| 19 | P910-066043 | Hose Assy-Orfs 0x0 | |
| 20 | P910-066040 | Hose Assy-Orfs 0x0 | |
| 21 | P930-066040 | Hose Assy-Orfs 0x90 | |
| 25 | P930-082043 | Hose Assy-Orfs 0x90 | |
| 26 | P930-087008 | Hose Assy-Orfs 0x90 | |
| 27 | 31Q4-30250 | Hose Assy | |
| 30 | X400-042037 | Hose Assy-Synflex, Orfs | |
| 31 | P910-082051 | HOSE ASSY-ORFS 0X0 | |
| 35 | X420-042008 | HOSE ASSY-ORFS 0X90 | |
| 37 | X420-042010 | HOSE ASSY-ORFS 0X90 | |
| 45 | 31N1-40130 | ELBOW-90,LONG,ORFS | |
| 47 | 31N4-30290 | Flange-Pipe | |
| 48 | 31N4-31280 | Connector | |
| 52 | 31N6-24120 | Tee-Shuttle | |
| 55 | 31Q4-30220 | Flange | |
| 56 | 31Q4-31030 | Bracket-Tcv | |
| 57 | X500-110001 | CONNECTOR-ORFS | |
| 60 | X500-210005 | Connector-Orfs | |
| 61 | X500-210006 | Connector-Orfs | |
| 62 | X500-120002 | Connector-Orfs | |
| 65 | X511-108533 | Connector-Orfs, Long | |
| 67 | X520-110002 | ELBOW-90,ORFS | |
| 69 | X520-110012 | ELBOW-90,ORFS | |
| 71 | X810-085253 | Tee-B/Type,Orfs | |
| 72 | X820-085253 | Tee-R/Type,Orfs | |
| 73 | X840-525152 | TEE-R/TYPE,SWIVEL,ORFS | |
| 74 | X820-085351 | Tee-R/Type,Orfs | |
| 76 | X850-555500 | Elbow-90,Swivel,Orfs | |
| 77 | X700-100104 | Plug-Orfs | |
| 80 | S037-102526 | BOLT-W/WASHER | |
| 81 | S109-060756 | Bolt-Socket | |
| 82 | S109-080256 | BOLT-SOCKET | |
| 83 | S109-080456 | Bolt-Socket | |
| 84 | S109-080506 | Bolt-Socket | |
| 85 | S109-100406 | BOLT-SOCKET | |
| 88 | S631-022001 | O-Ring | |
| 89 | Y161-016001 | O-Ring | |
| 91 | S631-025004 | O-Ring | |
| 95 | 31N4-22330 | Tee-R/Type,Swivel | |
| 96 | 31E3-3187 | Accumulator | |
| 97 | P220-110103 | PLUG-HEX | |
| A | S631-011004 | O-RING | |
| B | S631-014004 | O-RING | |
| C | S631-018004 | O-RING | |
| F | S621-011001 | O-RING | |
| G | S621-012001 | O-RING | |
| H | S621-014001 | O-RING | |
| J | S621-021001 | O-RING | |
| 1-1 | XKAG-00017 | Seal Kit |
