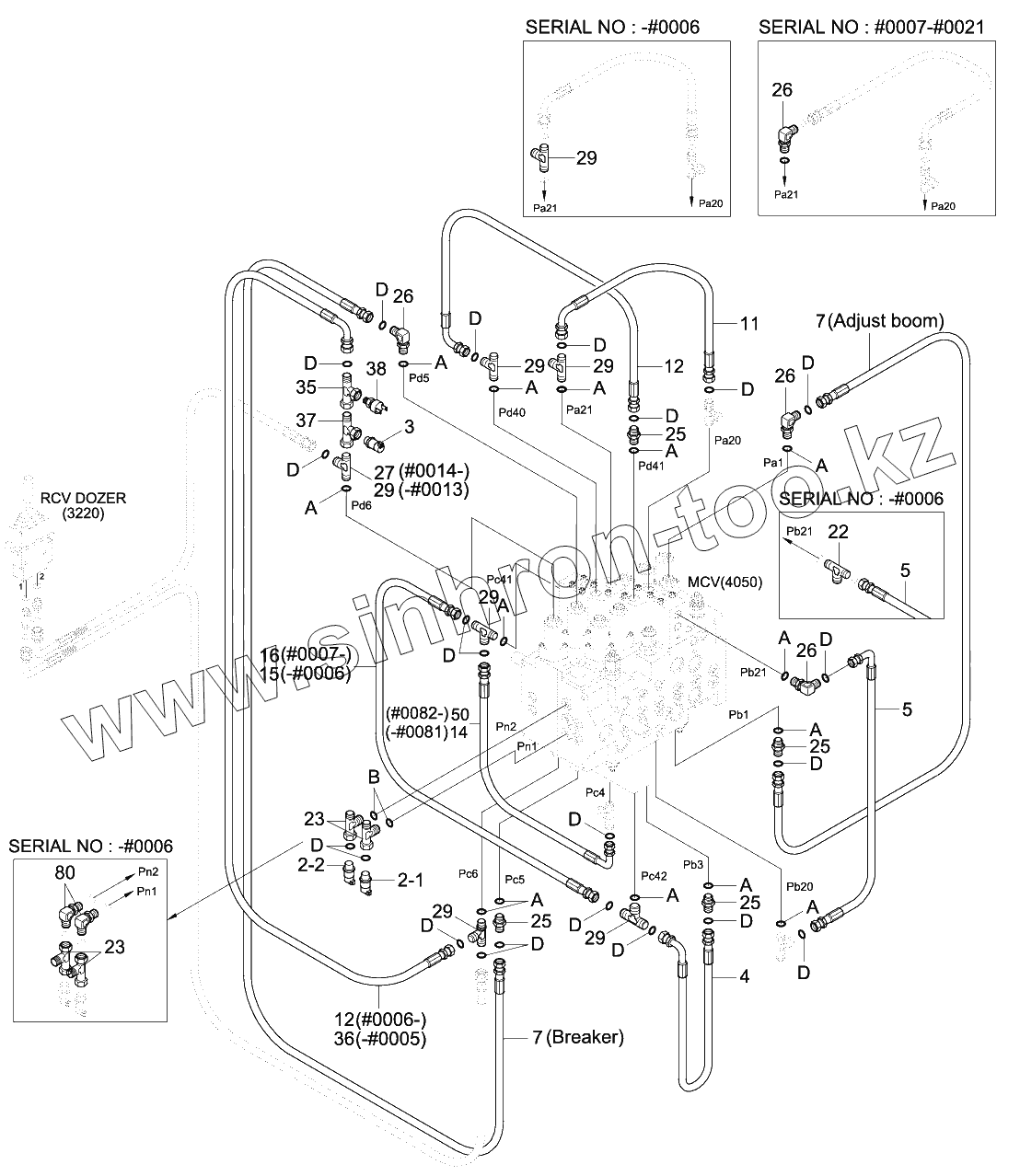

Каталог запасных частей к технике: Hyundai R140W-9. PILOT HYD PIPING (CONTROL 2)
2-2
2-2
14
50
2-1
3
5
5
5
5
23
2-1
3
4
5
5
7
7
11
12
12
15
16
22
23
23
25
25
25
25
26
26
26
26
27
29
29
29
29
29
29
29
35
36
37
38
80
A
A
A
A
A
A
A
A
A
A
A
A
A
B
D
D
D
D
D
D
D
D
D
D
D
D
D
D
D
D
D
D
D
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 2-2 | 31Q8-40510 | Sensor-Pressure | |
| 2-2 | 31Q4-40820 | SENSOR-PRESSURE | |
| 14 | X420-042022 | Hose Assy-Orfs 0x90 | |
| 50 | X420-042022 | Hose Assy-Orfs 0x90 | |
| 2-1 | 31Q4-40820 | SENSOR-PRESSURE | |
| 3 | 31Q4-40830 | SENSOR-PRESSURE | |
| 5 | X420-042022 | Hose Assy-Orfs 0x90 | |
| 5 | X400-042022 | HOSE ASSY-SYNF,ORFS | |
| 23 | 31QA-22310 | Tee-Branch Type | |
| 2-1 | 31Q8-40510 | Sensor-Pressure | |
| 3 | 31Q8-40520 | Sensor-Pressure | |
| 4 | X400-042007 | Hose Assy-Synf,Orfs | |
| 5 | X400-042020 | Hose Assy-Synf, Orfs | |
| 7 | X400-042021 | HOSE ASSY-SYNF,ORFS | |
| 11 | X420-042009 | Hose Assy-Orfs 0x90 | |
| 12 | X420-042012 | Hose Assy-Orfs 0x90 | |
| 15 | X420-042023 | Hose Assy-Orfs 0x90 | |
| 16 | X400-042023 | Hose Assy-Synf, Orfs | |
| 22 | 31N6-24120 | Tee-Shuttle | |
| 23 | 31N6-66080 | TEE-BRENCH TEST | |
| 25 | X500-110001 | CONNECTOR-ORFS | |
| 26 | X520-110001 | ELBOW-90,ORFS | |
| 27 | X810-045151 | Tee-B/Type, Orfs | |
| 29 | X820-045151 | TEE-R/TYPE,ORFS | |
| 35 | 31N5-10410 | Tee-Shuttle | |
| 36 | X420-042021 | HOSE ASSY-ORFS 0X90 | |
| 37 | 31Q4-20160 | Tee, With Test Port | |
| 38 | 31E5-40540 | Switch-Pressure | |
| 80 | X520-110012 | ELBOW-90,ORFS | |
| A | S631-011004 | O-RING | |
| B | S631-014004 | O-RING | |
| D | S621-011001 | O-RING |
