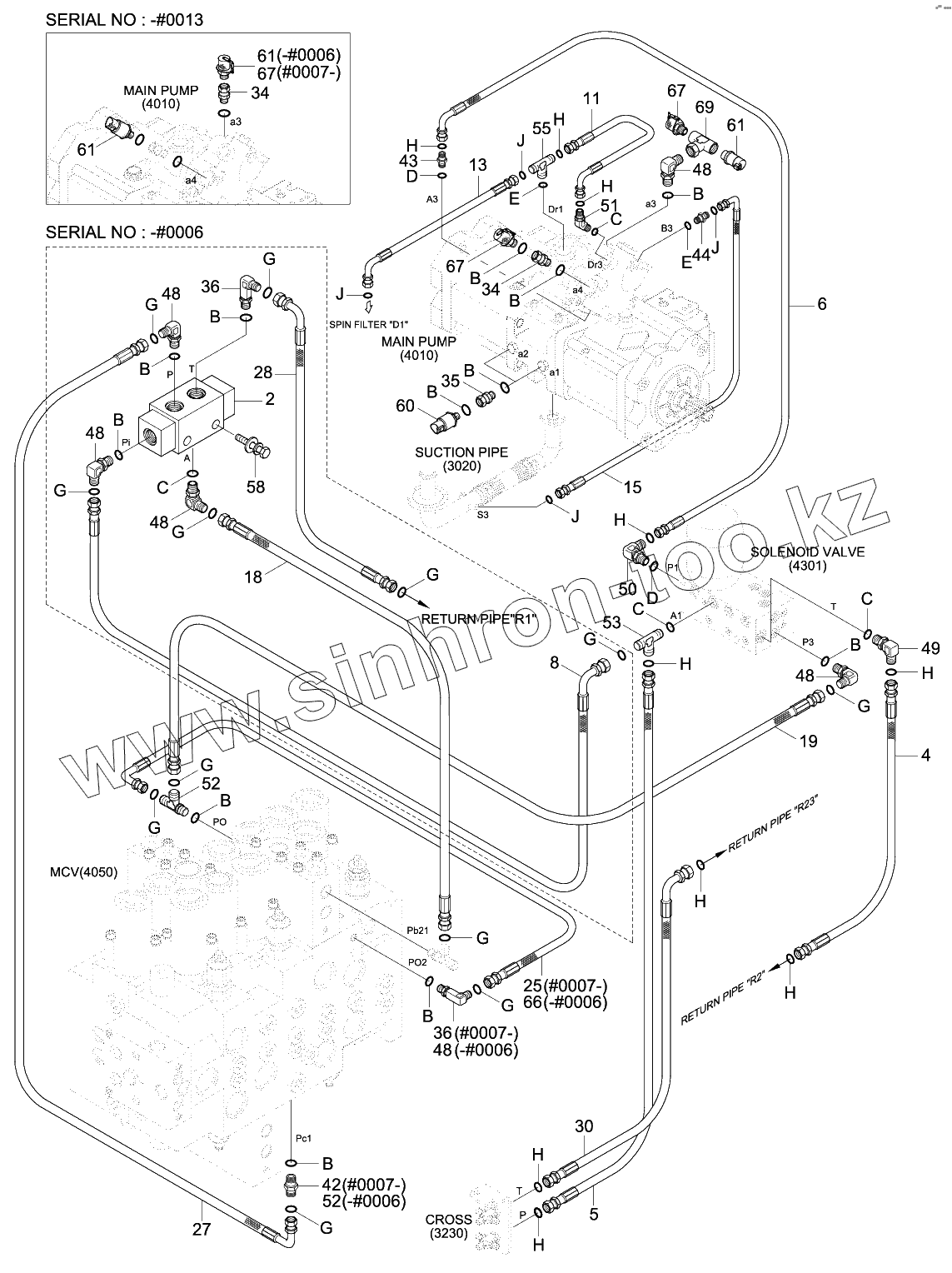

Каталог запасных частей к технике: Hyundai R140W-9. PILOT HYD PIPING (BASE 2)
13
28
30
43
60
61
61
61
2
4
5
6
8
11
13
15
18
19
25
27
28
30
34
34
35
36
36
42
43
44
48
48
48
48
48
48
49
50
51
52
52
53
55
58
60
61
61
61
66
67
67
67
69
B
B
B
B
B
B
B
B
B
B
B
B
C
C
C
C
D
D
E
E
G
G
G
G
G
G
G
G
G
G
G
G
H
H
H
H
H
H
H
H
H
H
J
J
J
J
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 13 | P930-122010 | Hose Assy-Orfs 0x90 | |
| 28 | X400-042038 | Hose Assy-Synflex, Orfs | |
| 30 | X420-062026 | Hose Assy-Orfs 0x90 | |
| 43 | X530-110003 | Elbow-45, Orfs | |
| 60 | 31Q4-40800 | SENSOR-PRESSURE | |
| 61 | 31Q4-40830 | SENSOR-PRESSURE | |
| 2 | 31Q6-20150 | Select Valve | |
| 4 | P910-062040 | Hose Assy-Orfs 0x0 | |
| 5 | P910-062060 | Hose Assy-Orfs 0x0 | |
| 6 | P910-082017 | Hose Assy-Orfs 0x0 | |
| 8 | P930-042022 | Hose Assy-Orfs 0x90 | |
| 11 | P930-062009 | Hose Assy-Orfs 0x90 | |
| 13 | P930-122009 | Hose Assy-Orfs 0x90 | |
| 15 | P930-122023 | Hose Assy-Orfs 0x90 | |
| 18 | X400-042039 | Hose Assy-Synf,Orfs | |
| 19 | X400-042040 | Hose Assy-Synflex, Orfs | |
| 25 | X420-042010 | HOSE ASSY-ORFS 0X90 | |
| 27 | X420-042029 | Hose Assy-Orfs 0x90 | |
| 28 | X420-042038 | Hose Assy-Orfs 0x90 | |
| 30 | X420-062027 | Hose Assy-Orfs 0x90 | |
| 34 | 31E5-11110 | ADAPTER | |
| 35 | 31E9-22120 | Connector | |
| 36 | 31N6-25110 | ELBOW-90,LONG | |
| 42 | X500-110001 | CONNECTOR-ORFS | |
| 43 | X500-110003 | CONNECTOR-ORFS | |
| 44 | X500-110004 | CONNECTOR-ORFS | |
| 48 | X520-110001 | ELBOW-90,ORFS | |
| 49 | X520-110002 | ELBOW-90,ORFS | |
| 50 | X520-110003 | ELBOW-90,ORFS | |
| 51 | X530-110002 | Elbow-45,Orfs | |
| 52 | X820-045151 | TEE-R/TYPE,ORFS | |
| 53 | 31N5-30100 | Tee | |
| 55 | X820-125452 | Tee-R/Type,Orfs | |
| 58 | S035-082526 | BOLT-W/WASHER | |
| 60 | 31Q8-40500 | Sensor-Pressure | |
| 61 | 31Q8-40520 | Sensor-Pressure | |
| 66 | X420-042014 | Hose Assy-Orfs 0x90 | |
| 67 | 31EK-11130 | COUPLING-SCREW | |
| 69 | 31Q4-20170 | TEE-TEST PORT | |
| B | S631-011004 | O-RING | |
| C | S631-014004 | O-RING | |
| D | S631-018004 | O-RING | |
| E | S631-024004 | O-RING | |
| G | S621-011001 | O-RING | |
| H | S621-012001 | O-RING | |
| J | S621-018001 | O-RING |
