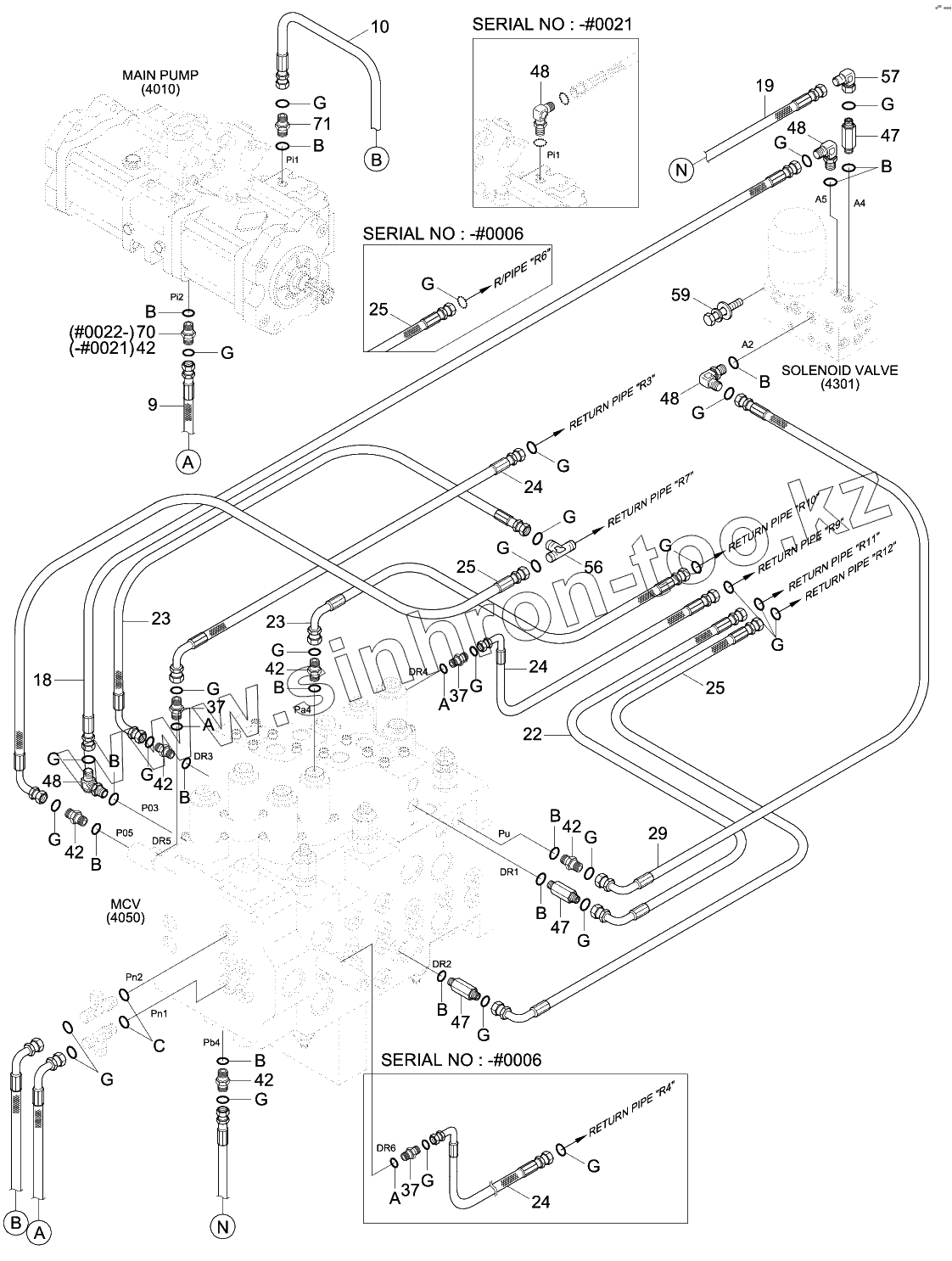

Каталог запасных частей к технике: Hyundai R140W-9. PILOT HYD PIPING (BASE 1)
9
10
10
18
19
19
9
10
18
19
22
23
23
24
24
24
25
25
25
29
37
37
37
42
42
42
42
42
42
47
47
47
48
48
48
48
56
57
59
70
71
A
A
A
B
B
B
B
B
B
B
B
B
B
B
B
C
G
G
G
G
G
G
G
G
G
G
G
G
G
G
G
G
G
G
G
G
G
G
G
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 9 | P930-043044 | Hose Assy-Orfs 0x90 | |
| 10 | P930-043048 | Hose Assy-Orfs 0x90 | |
| 10 | P930-043050 | Hose Assy-Orfs 0x90 | |
| 18 | X400-042038 | Hose Assy-Synflex, Orfs | |
| 19 | X400-042037 | Hose Assy-Synflex, Orfs | |
| 19 | X420-042040 | Hose Assy-Orfs 0x90 | |
| 9 | P930-043045 | Hose Assy-Orfs 0x90 | |
| 10 | P930-043052 | Hose Assy-Orfs 0x90 | |
| 18 | X400-042039 | Hose Assy-Synf,Orfs | |
| 19 | X400-042040 | Hose Assy-Synflex, Orfs | |
| 22 | X420-042006 | Hose Assy-Orfs 0x90 | |
| 23 | X420-042007 | HOSE ASSY-ORFS 0X90 | |
| 24 | X420-042008 | HOSE ASSY-ORFS 0X90 | |
| 25 | X420-042010 | HOSE ASSY-ORFS 0X90 | |
| 29 | X420-042042 | Hose Assy-Orfs 0x90 | |
| 37 | 31Q6-20210 | Connector-Orfs | |
| 42 | X500-110001 | CONNECTOR-ORFS | |
| 47 | X511-104513 | CONNECTOR-LONG,ORFS | |
| 48 | X520-110001 | ELBOW-90,ORFS | |
| 56 | X840-515151 | Tee-R/Type, Swivel, Orfs | |
| 57 | X850-515100 | ELBOW-90 SWIVEL,ORFS | |
| 59 | S017-101206 | Bolt-Hex | |
| 70 | 31N6-25060 | FILTER-LAST GUARD | |
| 71 | 31Q4-25050 | Filter-Last Guard | |
| A | S631-008004 | O-Ring | |
| B | S631-011004 | O-RING | |
| C | S631-014004 | O-RING | |
| G | S621-011001 | O-RING |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
