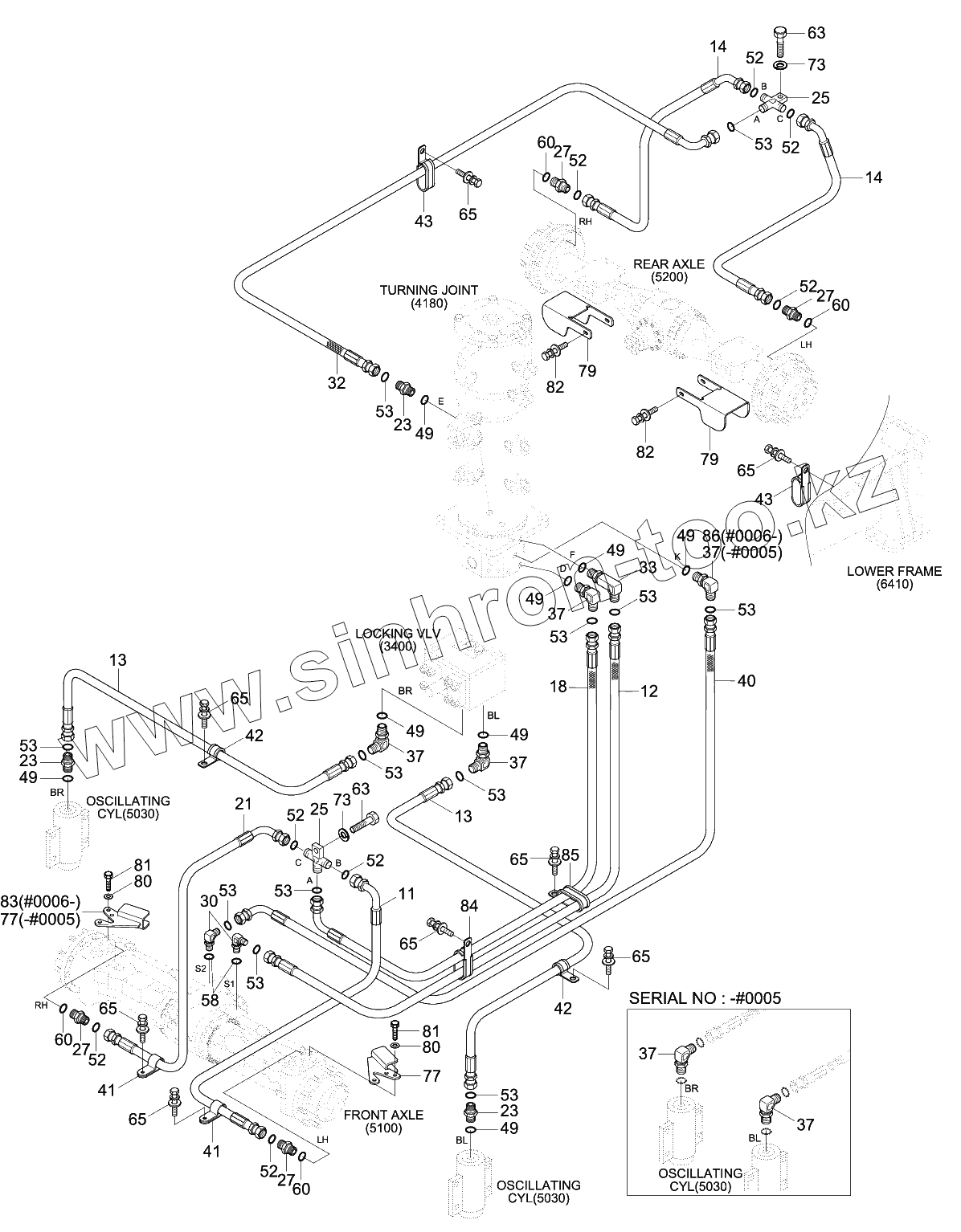

Каталог запасных частей к технике: Hyundai R140W-9. LOWER HYD PIPING 2 (-#0073)
11
11
12
12
13
13
13
14
14
14
18
21
21
23
23
23
25
25
27
27
27
27
30
32
33
37
37
37
37
37
37
40
40
41
41
42
42
43
43
49
49
49
49
49
49
49
49
52
52
52
52
52
52
52
52
53
53
53
53
53
53
53
53
53
53
53
53
58
60
60
60
60
63
63
65
65
65
65
65
65
65
65
73
73
77
77
77
79
79
79
80
80
81
81
82
82
83
83
84
85
86
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 11 | P933-047025 | Hose Assy-Orfs 0x90 | |
| 11 | P933-047023 | Hose Assy-Orfs 0x90 | |
| 12 | P933-066037 | Hose Assy-Orfs 0x90 | |
| 12 | P933-066038 | Hose Assy-Orfs 0x90 | |
| 13 | P933-067018 | Hose Assy-Orfs 0x90 | |
| 13 | P913-067018 | Hose Assy-Orfs 0x0 | |
| 14 | P923-047016 | Hose Assy-Orfs 0x45 | |
| 14 | P923-047018 | Hose Assy-Orfs 0x45 | |
| 18 | P933-067029 | Hose Assy-Orfs 0x90 | |
| 21 | P913-047026 | Hose Assy-Orfs 0x0 | |
| 21 | P933-047026 | Hose Assy-Orfs 0x90 | |
| 23 | X500-110002 | CONNECTOR-ORFS | |
| 25 | 31N5-41030 | Tee-Mountingg | |
| 27 | X500-210002 | Connector-Orfs | |
| 30 | 31N4-12120 | Elbow-90 | |
| 32 | P933-067028 | Hose Assy-Orfs 0x90 | |
| 33 | 31N1-40130 | ELBOW-90,LONG,ORFS | |
| 37 | X520-110002 | ELBOW-90,ORFS | |
| 40 | P933-066039 | Hose Assy-Orfs 0x90 | |
| 40 | P933-066042 | Hose Assy-Orfs 0x90 | |
| 41 | 31L7-10190 | CLAMP-TUBE | |
| 42 | 31L7-10200 | CLAMP-TUBE | |
| 43 | 31L7-10230 | CLAMP | |
| 49 | S631-014004 | O-RING | |
| 52 | S621-011001 | O-RING | |
| 53 | S621-012001 | O-RING | |
| 58 | P392-180000 | Washer-Copper | |
| 60 | Y161-014001 | O-RING | |
| 63 | S017-100356 | Bolt-Hex | |
| 65 | S037-101526 | BOLT-W/WASHER | |
| 73 | S411-100006 | WASHER-SPRING | |
| 77 | 31Q4-41160 | Cover Wa-Front | |
| 77 | 31N4-41161 | Cover Wa-Front | |
| 79 | 31Q4-41200 | Cover-Brake Hose | |
| 79 | 31N4-41200 | Cover-Brake Hose | |
| 80 | S441-120006 | Washer-Hardened | |
| 81 | S018-120506 | Bolt-Hex | |
| 82 | S037-102526 | BOLT-W/WASHER | |
| 83 | 31N6-41170 | Connector-Long,Orfs | |
| 83 | 31Q4-41170 | Cover Wa-Front | |
| 84 | 31L7-10240 | CLAMP-TUBE INS | |
| 85 | 31L7-10270 | CLAMP-TUBE | |
| 86 | X530-110002 | Elbow-45,Orfs |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
