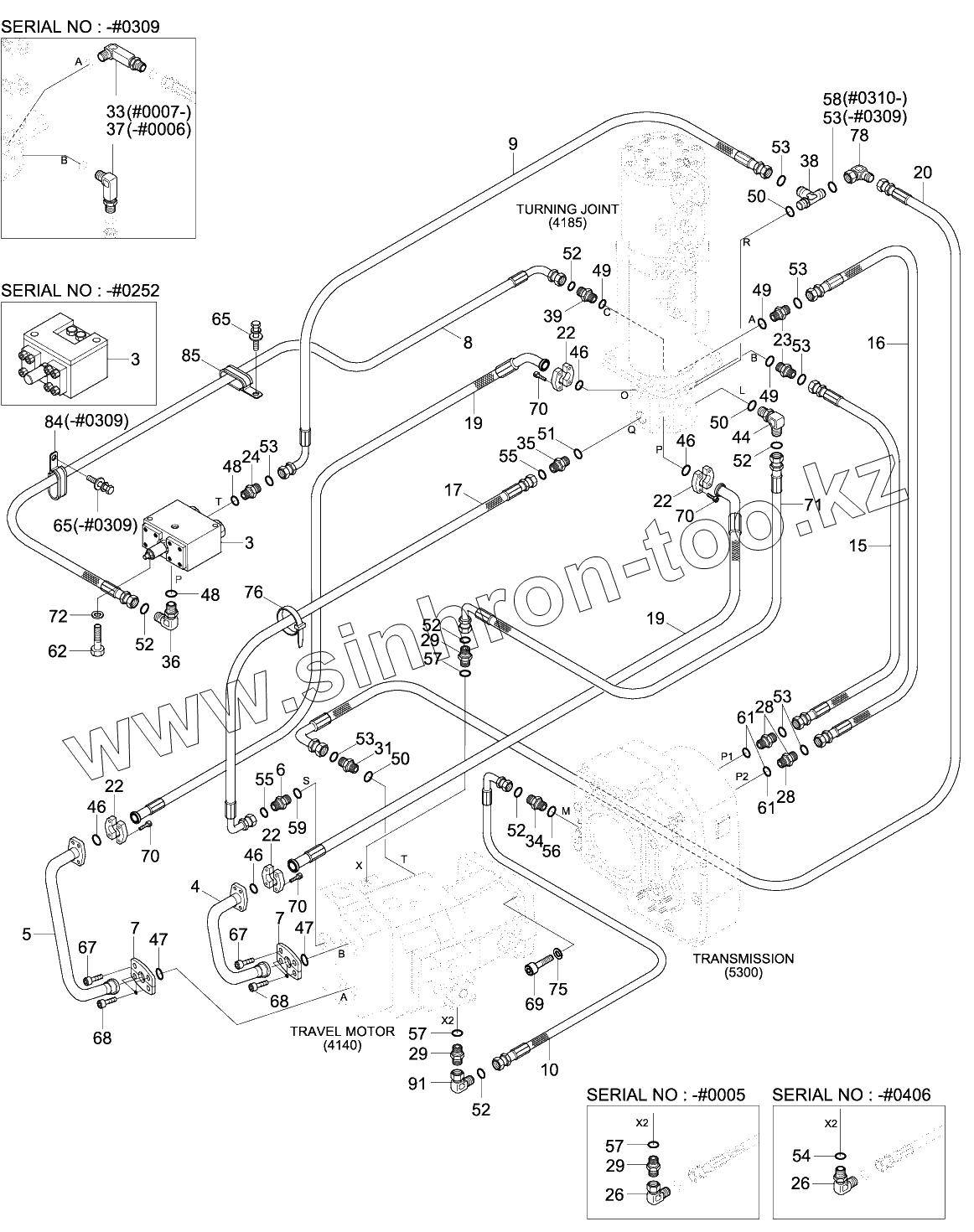

Каталог запасных частей к технике: Hyundai R140W-9. LOWER HYD PIPING 1
3
3
3
4
5
6
7
7
8
8
8
9
9
9
10
15
16
16
16
17
17
19
19
19
19
20
20
20
22
22
22
22
23
24
26
26
26
28
28
29
29
29
31
31
33
34
34
35
36
37
38
38
39
39
44
46
46
46
46
47
47
48
48
49
49
49
50
50
50
51
51
52
52
52
52
52
52
53
53
53
53
53
53
53
54
55
55
56
56
57
57
57
58
59
61
61
62
65
65
67
67
68
68
69
70
70
70
70
71
71
72
75
76
78
84
85
91
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| P913-062012 | P913-062012 | Hose Assy-Orfs 0x0 | |
| 3 | 81E3-0014 | Valve-Locking | |
| 3 | 31Q4-43610 | Valve-Locking | |
| 4 | 31Q4-31011 | Pipe Assy | |
| 5 | 31Q4-31021 | Pipe Assy | |
| 6 | 31Q4-41090 | Connector-Orfs | |
| 7 | P174-160115 | FLANGE-SPLIT | |
| 8 | P913-047026 | Hose Assy-Orfs 0x0 | |
| 8 | P913-047028 | Hose Assy-Orfs 0x0 | |
| 8 | P933-047026 | Hose Assy-Orfs 0x90 | |
| 9 | P933-062025 | Hose Assy-Orfs 0x90 | |
| 9 | P933-062029 | Hose Assy-Orfs 0x90 | |
| 9 | P933-062028 | Hose Assy-Orfs 0x90 | |
| 10 | P933-042015 | Hose Assy-Orfs 0x90 | |
| 15 | P913-062006 | Hose Assy-Orfs 0x0 | |
| 16 | P913-062007 | Hose Assy-Orfs 0x0 | |
| 16 | P923-062012 | Hose Assy-Orfs 0x45 | |
| 16 | P913-062009 | Hose Assy-Orfs 0x0 | |
| 17 | P933-162021 | Hose Assy-Orfs 0x90 | |
| 17 | P933-162022 | Hose Assy-Orfs 0x90 | |
| 19 | 31Q4-43070 | Hose Assy-Flg 0x45 | |
| 19 | 31Q4-43070-01 | Hose Assy-Flg 0x45 | |
| 19 | P693-128417 | Hose Assy-Flg 0x45 | |
| 20 | P933-062017 | Hose Assy-Orfs 0x90 | |
| 20 | P933-082020 | Hose Assy-Orfs 0x90 | |
| 20 | P933-062020 | Hose Assy-Orfs 0x90 | |
| 22 | P174-120102 | Flange-Hyd, Split | |
| 23 | X500-110002 | CONNECTOR-ORFS | |
| 24 | X500-110011 | CONNECTOR-ORFS | |
| 26 | X850-515100 | ELBOW-90 SWIVEL,ORFS | |
| 26 | X520-210001 | Elbow-90,Orfs | |
| 28 | X500-210005 | Connector-Orfs | |
| 29 | X500-220002 | Connector-Orfs | |
| 31 | X500-110015 | Connector-Orfs | |
| 31 | X500-110003 | CONNECTOR-ORFS | |
| 33 | 31N1-40130 | ELBOW-90,LONG,ORFS | |
| 34 | 31Q4-43210 | Connector | |
| 34 | 31Q4-43060 | Connector | |
| 35 | X500-110005 | CONNECTOR-ORFS | |
| 36 | X520-110001 | ELBOW-90,ORFS | |
| 37 | X520-110002 | ELBOW-90,ORFS | |
| 38 | X820-085352 | Tee-R/Type,Orfs | |
| 38 | X820-085252 | Tee-R/Type, Orfs | |
| 39 | X520-110012 | ELBOW-90,ORFS | |
| 39 | X500-110013 | CONNECTOR-ORFS | |
| 41 | S411-120006 | WASHER-SPRING | |
| 44 | X520-110012 | ELBOW-90,ORFS | |
| 46 | Y171-019004 | O-RING | |
| 47 | Y171-024004 | O-RING | |
| 48 | S631-011004 | O-RING | |
| 49 | S631-014004 | O-RING | |
| 50 | S631-018004 | O-RING | |
| 51 | S631-029004 | O-RING | |
| 51 | S631-027004 | O-Ring | |
| 52 | S621-011001 | O-RING | |
| 53 | S621-012001 | O-RING | |
| 54 | Y161-014001 | O-RING | |
| 55 | S621-021001 | O-RING | |
| 56 | Y161-010001 | O-Ring | |
| 56 | P392-100000 | Washer-Copper | |
| 57 | P392-140000 | Washer-Copper | |
| 58 | S621-014001 | O-RING | |
| 59 | P392-270000 | Washer-Copper | |
| 61 | Y161-016001 | O-Ring | |
| 62 | S015-080806 | Bolt-Hex | |
| 64 | S017-120506 | BOLT-HEX | |
| 65 | S037-101526 | BOLT-W/WASHER | |
| 67 | S109-120406 | BOLT-SOCKET | |
| 68 | S109-121106 | Bolt-Socket | |
| 69 | S109-160506 | Bolt-Socket | |
| 70 | S109-100356 | BOLT-SOCKET | |
| 71 | P933-042019 | Hose Assy-Orfs 0x90 | |
| 71 | P933-042021 | Hose Assy-Orfs 0x90 | |
| 72 | S411-080006 | WASHER-SPRING | |
| 75 | S411-160006 | WASHER-SPRING | |
| 76 | S541-160002 | Clamp-Tube | |
| 78 | X850-525200 | ELBOW-90,SWIVEL,ORFS | |
| 84 | 31L7-10250 | CLAMP-TUBE,INS SINGLE | |
| 85 | 31L7-10270 | CLAMP-TUBE | |
| 91 | X850-515100 | ELBOW-90 SWIVEL,ORFS |
