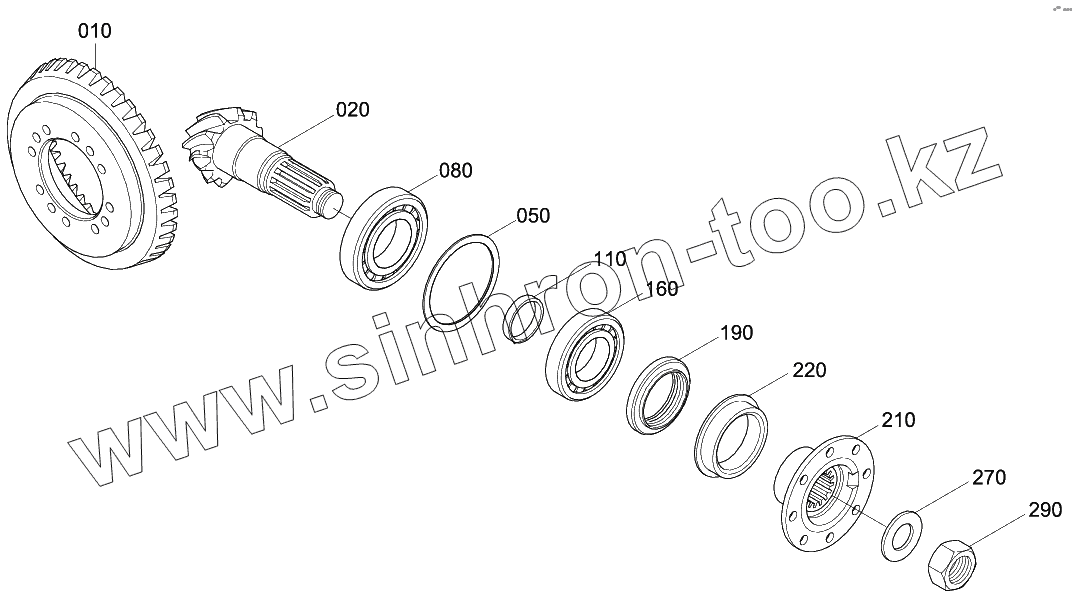

Каталог запасных частей к технике: Hyundai R140W-9. FRONT AXLE INPUT GROUP (#0074-)

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
10
20
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
80
110
110
110
110
110
110
110
110
110
110
110
110
110
110
110
110
110
110
110
110
110
110
110
110
110
110
110
110
110
110
110
110
110
110
110
110
110
110
110
110
110
110
110
110
160
190
210
220
270
290
Позиция на иллюстрации Заводской номер детали Название детали
10 ZGAQ-02874 Crown Wheel
20 ZGAQ-02875 Pinion
50 ZGAQ-01120 Shim
50 ZGAQ-01119 Shim
50 ZGAQ-01118 Shim
50 ZGAQ-01144 Shim
50 ZGAQ-01143 Shim
50 ZGAQ-01142 Shim
50 ZGAQ-01141 Shim
50 ZGAQ-01140 Shim
50 ZGAQ-01139 Shim
50 ZGAQ-01138 Shim
50 ZGAQ-01137 Shim
50 ZGAQ-01136 Shim
50 ZGAQ-01135 Shim
50 ZGAQ-01133 Shim
50 ZGAQ-01132 Shim
50 ZGAQ-01131 Shim
50 ZGAQ-01130 Shim
50 ZGAQ-01129 Shim
50 ZGAQ-01128 Shim
50 ZGAQ-01127 Shim
50 ZGAQ-01126 Shim
50 ZGAQ-01125 Shim
50 ZGAQ-01124 Shim
50 ZGAQ-01134 Shim
50 ZGAQ-01121 Shim
50 ZGAQ-01123 Shim
50 ZGAQ-01122 Shim
80 ZGAQ-03875 Bearing-Taper Roller
110 ZGAQ-01179 Ring
110 ZGAQ-01180 Ring
110 ZGAQ-01181 Ring
110 ZGAQ-01182 Ring
110 ZGAQ-01183 Ring
110 ZGAQ-01184 Ring
110 ZGAQ-01185 Ring
110 ZGAQ-01186 Ring
110 ZGAQ-01187 Ring
110 ZGAQ-01168 Ring
110 ZGAQ-01188 Ring
110 ZGAQ-01189 Ring
110 ZGAQ-01190 Ring
110 ZGAQ-01191 Ring
110 ZGAQ-01192 Ring
110 ZGAQ-01193 Ring
110 ZGAQ-01194 Ring
110 ZGAQ-01195 Ring
110 ZGAQ-01196 Ring
110 ZGAQ-01153 Ring
110 ZGAQ-01177 Ring
110 ZGAQ-01154 Ring
110 ZGAQ-01155 Ring
110 ZGAQ-01156 Ring
110 ZGAQ-01157 Ring
110 ZGAQ-01158 Ring
110 ZGAQ-01159 Ring
110 ZGAQ-01160 Ring
110 ZGAQ-01161 Ring
110 ZGAQ-01162 Ring
110 ZGAQ-01163 Ring
110 ZGAQ-01164 Ring
110 ZGAQ-01166 Ring
110 ZGAQ-01178 Ring
110 ZGAQ-01176 Ring
110 ZGAQ-01175 Ring
110 ZGAQ-01174 Ring
110 ZGAQ-01173 Ring
110 ZGAQ-01172 Ring
110 ZGAQ-01171 Ring
110 ZGAQ-01170 Ring
110 ZGAQ-01169 Ring
110 ZGAQ-01167 Ring
110 ZGAQ-01165 Ring
160 ZGAQ-01146 Bearing-Taper Roller
190 ZGAQ-02303 Seal-Shaft
192 ZGAQ-03876 Spirit
210 ZGAQ-02876 Flange-Input
220 ZGAQ-03579 Sheet-Screen
270 ZGAQ-01151 Washer
290 ZGAQ-02304 Nut-Hex
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
