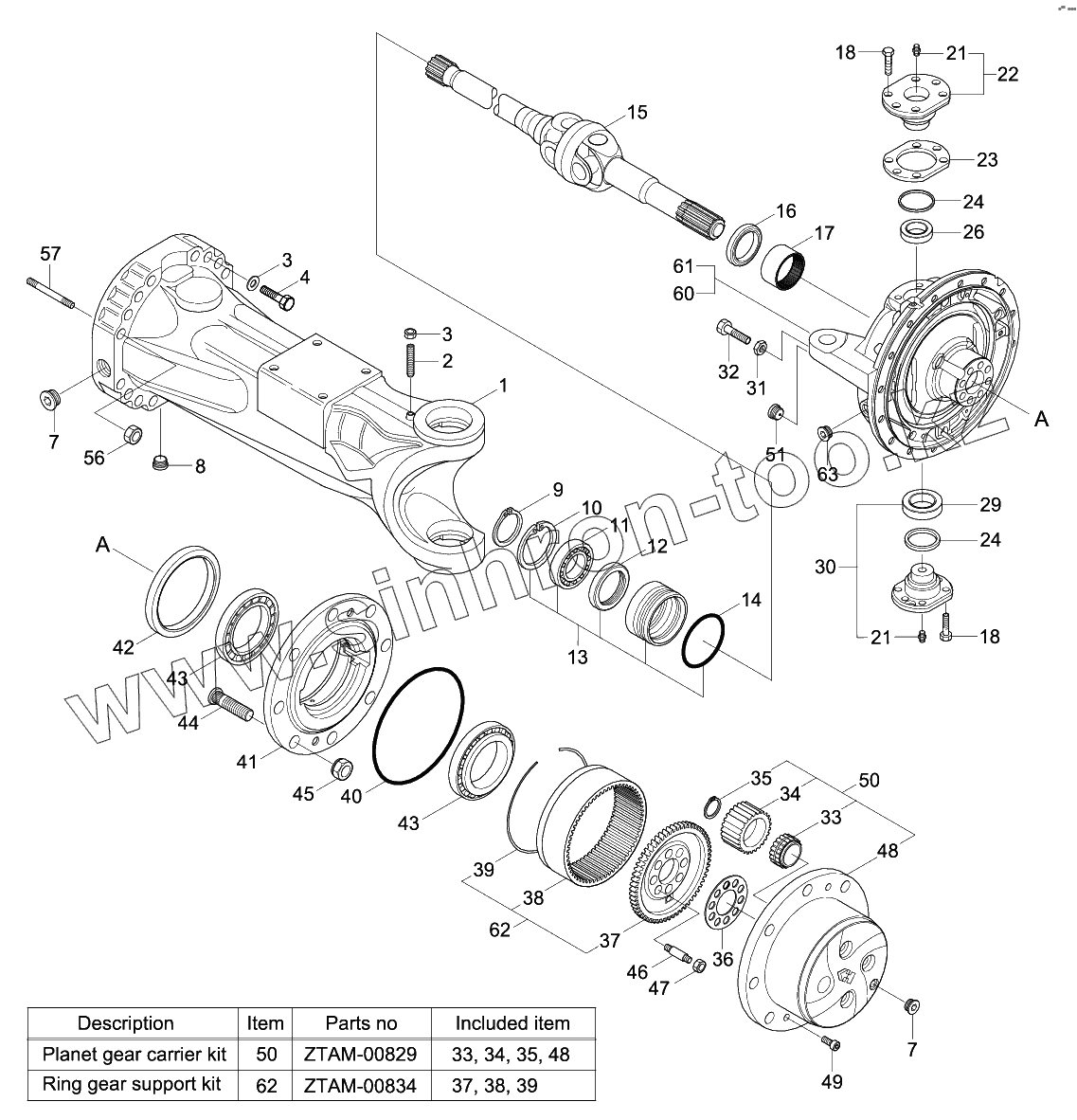

Каталог запасных частей к технике: Hyundai R140W-9. FRONT AXLE HUB REDUCTION (-#0073)
ZTAM-00829
ZTAM-00834
1
2
3
3
4
7
7
8
9
10
11
12
13
14
15
16
17
18
18
21
21
22
23
23
24
24
26
29
30
31
32
33
33
34
34
35
35
36
37
37
38
38
39
39
40
41
42
43
43
44
45
46
47
48
48
49
50
50
56
57
60
61
62
62
63
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| ZTAM-00829 | ZTAM-00829 | Carrier Kit-Planet Gear | |
| ZTAM-00834 | ZTAM-00834 | Support Kit-Ring Gear | |
| 1 | ZTAM-00818 | Case-Axle | |
| 2 | ZTAM-00041 | Adjust Bolt-Steering | |
| 3 | ZTAM-00040 | Nut | |
| 4 | ZTAM-00044 | Bolt | |
| 7 | ZTAM-00006 | Plug | |
| 8 | ZTAM-00570 | Plug-Magnet | |
| 9 | ZTAM-00048 | Circlip | |
| 10 | ZTAM-00008 | Circlip | |
| 11 | ZTAM-00049 | Bearing-Ball | |
| 12 | ZTAM-00046 | Seal | |
| 13 | ZTAM-00045 | Bushing-Reduction | |
| 14 | ZTAM-00050 | O-Ring | |
| 15 | ZTAM-00819 | Universal Joint-Double | |
| 16 | ZTAM-00062 | Seal | |
| 17 | ZTAM-00052 | Bushing-Thrust | |
| 18 | ZTAM-00019 | Bolt | |
| 21 | ZTAM-00056 | Fitting-Grease | |
| 22 | ZTAM-00860 | Pivot Pin | |
| 23 | ZTAM-00582 | Shim | |
| 23 | ZTAM-00580 | Shim | |
| 24 | ZTAM-00820 | Excluder-Dust | |
| 26 | ZTAM-00821 | Bushing | |
| 29 | ZTAM-00060 | Bearing | |
| 30 | ZTAM-00822 | Pivot Pin | |
| 31 | ZTAM-00081 | Nut | |
| 32 | ZTAM-00823 | Adjust Bolt-Steering | |
| 33 | ZTAM-00073 | Bearing | |
| 34 | ZTAM-00072 | Gear-Planet | |
| 35 | ZTAM-00071 | Circlip | |
| 36 | ZTAM-00824 | Plate-Locking | |
| 37 | ZTAM-00825 | Support-Ring Gear | |
| 38 | ZTAM-00069 | Gear-Ring | |
| 39 | ZTAM-00079 | Circlip | |
| 40 | ZTAM-00068 | O-Ring | |
| 41 | ZTAM-00826 | Hub-Wheel | |
| 42 | ZTAM-00827 | Seal | |
| 43 | ZTAM-00065 | Bearing | |
| 44 | ZTAM-00066 | Stud-Wheel | |
| 45 | ZTAM-00074 | Nut | |
| 46 | ZTAM-00077 | Stud | |
| 47 | ZTAM-00078 | Nut | |
| 48 | ZTAM-00828 | Carrier-Planet Gear | |
| 49 | ZTAM-00075 | Bolt-Countersunk | |
| 50 | ZTAM-00829 | Carrier Kit-Planet Gear | |
| 56 | ZTAM-00830 | Nut | |
| 57 | ZTAM-00831 | Stud | |
| 60 | ZTAM-00832 | Case 1-Steering | |
| 61 | ZTAM-00833 | Case 2-Steering | |
| 62 | ZTAM-00834 | Support Kit-Ring Gear | |
| 63 | ZTAM-00835 | Plug |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
