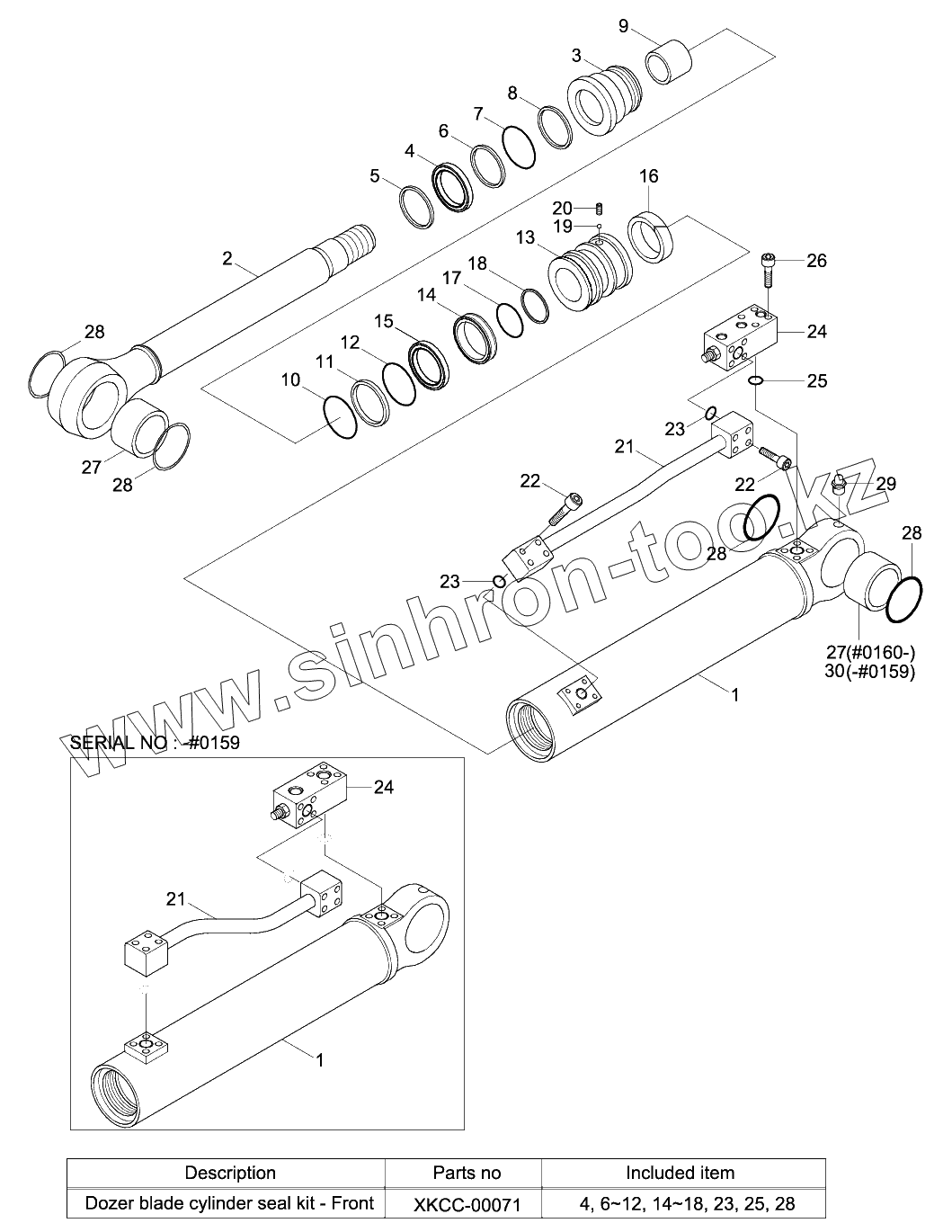

Каталог запасных частей к технике: Hyundai R140W-9. DOZER BLADE CYLINDER-FRONT
31Q4-70140
31Q4-70141
XKCC-00071
31Q4-70131
31Q4-70130
1
1
1
1
1
2
3
4
4
4
5
6
6
6
7
8
8
9
10
11
12
12
13
14
14
14
14
15
16
16
17
18
18
19
20
21
21
21
21
21
22
22
23
23
23
24
24
24
24
24
25
25
26
27
27
28
28
28
28
28
29
30
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 31Q4-70140 | 31Q4-70140 | Dozer Blade Cyl-Fr,Rh | |
| 31Q4-70141 | 31Q4-70141 | Dozer Blade Cyl-Fr,Rh | |
| XKCC-00071 | XKCC-00071 | Seal Kit | |
| 31Q4-70131 | 31Q4-70131 | Dozer Blade Cyl-Fr,Lh | |
| 31Q4-70130 | 31Q4-70130 | Dozer Blade Cyl-Fr,Lh | |
| 1 | XKCD-02439 | Tube Assy | |
| 1 | XKCD-02440 | Tube Assy-Lh | |
| 1 | XKCD-02441 | Tube Assy-Rh | |
| 1 | XKCC-00042 | Tube Assy | |
| 2 | XKCC-00043 | Rod Assy | |
| 3 | XKCC-00044 | Gland | |
| 4 | XKCC-00045 | Wiper-Dust | |
| 4 | XKCC-00854 | Wiper-Dust | |
| 5 | XKCC-00046 | Retaining Ring | |
| 6 | XKCC-00766 | Rod Seal | |
| 6 | XKCC-00047 | Seal-Rod | |
| 7 | XKCC-00048 | Ring-Backup | |
| 8 | XKCC-00855 | Ring-Buffer | |
| 8 | XKCC-00049 | Ring-Buffer | |
| 9 | XKCC-00050 | Dd2 Bush | |
| 10 | XKCC-00051 | O-Ring | |
| 11 | XKCC-00052 | Ring-Back Up | |
| 12 | XKCC-00053 | O-Ring | |
| 13 | XKCC-00054 | Piston | |
| 14 | XKCC-01188 | Seal-Piston | |
| 14 | XKCD-02442 | Seal-Piston | |
| 14 | XKCC-00055 | SEAL-PISTON | |
| 15 | XKCC-00039 | Ring-Dust | |
| 16 | XKCC-01204 | Wear Ring | |
| 16 | XKCC-00056 | Ring-Wear | |
| 17 | XKCC-00057 | O-Ring | |
| 18 | XKCC-00058 | Back Up Ring | |
| 19 | XKCC-00059 | BALL-STEEL | |
| 20 | XKCC-00060 | Screw-Set | |
| 21 | XKCC-00061 | Pipe Assy, Lh | |
| 21 | XKCC-01206 | Pipe Assy-Rh | |
| 21 | XKCC-00072 | Pipe Assy, Rh | |
| 21 | XKCC-01205 | Pipe Assy-Lh | |
| 22 | XKCC-00062 | Bolt-Socket | |
| 23 | XKCC-00063 | O-RING | |
| 24 | 31Q6-70330 | Check Vlv-Double,Rh | |
| 24 | 31Q6-70320 | Check Vlv-Double,Rh | |
| 24 | 31Q6-70340 | Check Vlv-Double,Lh | |
| 24 | 31Q6-70310 | Deleted | |
| 25 | XKCC-00065 | O-RING | |
| 26 | XKCC-00066 | Bolt-Socket | |
| 27 | XKCC-00067 | Bushing-Pin | |
| 28 | XKCC-00068 | Seal-Dust | |
| 29 | XKCC-00069 | Nipple-Grease | |
| 30 | XKCC-00070 | Bushing-Pin |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
