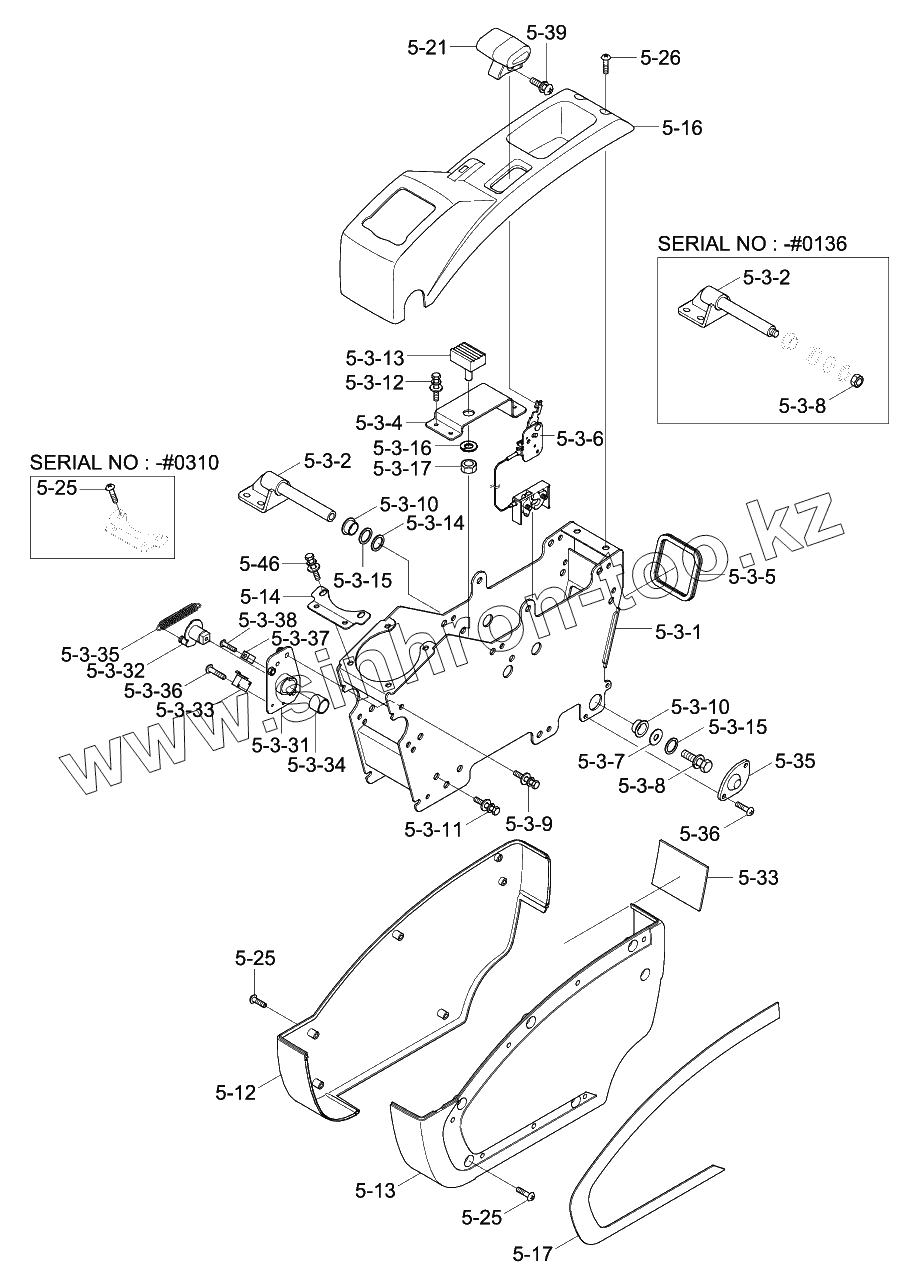

Каталог запасных частей к технике: Hyundai R140W-9. CONSOLE BOX 1 (LH)

Тип техники

Марка

Модель

Схема

5-3-14

5-3-6

5-12

5-13

5-16

5-21

5-35

5-3

5-3-1

5-3-2

5-3-3

5-3-4

5-3-5

5-3-6

5-3-7

5-3-8

5-3-9

5-3-10

5-3-11

5-3-12

5-3-13

5-3-15

5-3-16

5-3-17

5-3-31

5-3-32

5-3-33

5-3-34

5-3-35

5-3-36

5-3-37

5-3-38

5-12

5-13

5-14

5-16

5-17

5-21

5-25

5-26

5-33

5-35

5-36

5-39

Позиция на иллюстрации	Заводской номер детали	Название детали
5-3-14	71Q6-22631	Shim(10t)-Console
5-3-6	71Q4-22002	Latch Assy
5-12	71Q6-22050GG	Console Cover-Low, Rh
5-13	71Q6-22010GG	Console Cover-Low, Lh
5-16	71Q4-22060GG	Console Cover-Up,Lh
5-21	71Q4-22120GG	Knob-Latch
5-35	71Q6-23130GG	Cap-Console
5	BottomPlateSubAssy	Bottom Plate Sub Assy
5-3	71Q4-21001	Console Frame Assy-Lh
5-3-1	71Q4-21331	Frame Wa-Console
5-3-2	71Q6-21311	Bracket Wa-Console
5-3-3	71Q6-20920	BRACKET ASSY-SAFETY
5-3-4	71Q4-22070	Plate
5-3-5	71Q6-21420	Grommet
5-3-6	71Q4-22001	Latch Assy
5-3-7	71Q6-22690	Shim-Round
5-3-8	S275-12000B	Nut-Self Locking
5-3-9	71Q6-22631	Shim(10t)-Console
5-3-10	S731-020020	BUSHING-DU
5-3-11	S035-084526	Bolt-W/Washer
5-3-12	S132-061526	Screw-W/Washer
5-3-13	71Q4-22140	Damper-Console
5-3-15	71Q6-23080	Shim(10t)-Console
5-3-16	S403-082006	WASHER-PLAIN
5-3-17	S205-08100B	NUT-HEX
5-3-31	71Q6-20930	BRACKET-LOWER
5-3-32	71Q6-20960	BRACKET-UPPER
5-3-33	21N8-20300	SWITCH-MICRO
5-3-34	S731-020010	Bushing-Du
5-3-35	71N6-21610	SPRING
5-3-36	S161-030156	Screw-Cross R/Round
5-3-37	71Q6-22840	PLATE-STOPPER
5-3-38	S131-051526	SCREW-W/WASHER
5-12	71Q6-22050	Console Cover-Low,Rh
5-13	71Q6-22010	Console Cover-Low,Lh
5-14	71Q6-21610	BRACKET-CONSOLE UP
5-16	71Q4-22060	Console Cover-Up,Lh
5-17	71Q6-22031	CONSOLE COVER-TRIM
5-21	71Q4-22120	Knob-Latch
5-25	S002-06010B	SCREW-TRUS HEAD
5-26	S002-06015B	SCREW-TRUS HEAD
5-33	71Q6-22670	Protector
5-35	71Q6-23130	Cap-Console
5-36	S002-05015B	SCREW-TRUS HEAD
5-39	S131-040826	Screw-W/Washer

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
