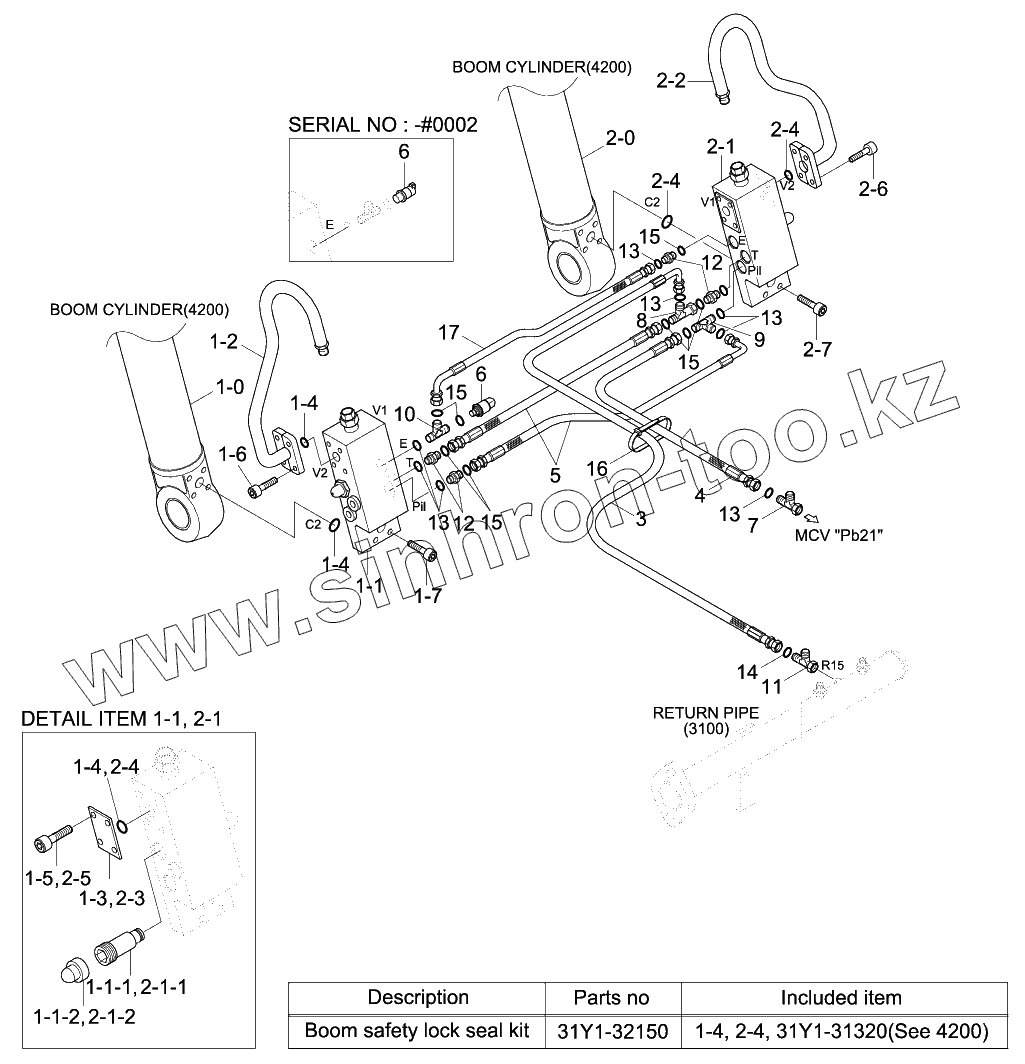

Каталог запасных частей к технике: Hyundai R140W-9. BOOM SAFETY LOCK SYSTEM

Тип техники

Марка

Модель

Схема

31Y1-31320

2-1

2-1

2-4

2-4

2-4

2-4

2-3

2-1-1

2-1-2

2-0

1

1

1

1-2

2

2

2

2-2

6

6

10

17

1

1-0

1-1

1-1-1

1-1-2

1-2

1-3

1-5

1-6

1-7

2

2-2

2-5

2-6

2-7

3

4

5

6

6

7

8

9

10

11

12

12

13

13

13

13

13

14

15

15

15

15

16

31Y1-32150

1-4

1-4

1-4

1-4

Позиция на иллюстрации	Заводской номер детали		Название детали
31Y1-31320	31Y1-31320		Seal Kit
2-1	31Q4-55010		Boom Safety Lock Valve
2-4	Y171-015004		O-Ring
2-3	P184-081112		Flange-Square
2-1-1	XKCH-00001		Valve-Relief
2-1-2	DCP-001A		Cap
2-0	BoomCylSubAssy		Boom Cyl Sub Assy
1	31Q4-52111		Boom Safety Cyl-Lh
1	31Q4-52910		Boom Safety Cyl-Lh
1	31Q4-52911		Boom Safety Cyl-Lh
1-2	31Y1-38310		Pipe Assy-Bv,Lh
2	31Q4-52121		Boom Safety Cyl-Rh
2	31Q4-52920		Boom Safety Cyl-Rh
2	31Q4-52921		Boom Safety Cyl-Rh
2-2	31Y1-38320		Pipe Assy-Bv,Rh
6	31Q4-40800		SENSOR-PRESSURE
10	31NB-20130		TEE-RUN TYPE/TEST
17	P920-048008		Hose Assy-Orfs 0x45
1	31Q4-52110		Boom Safety Cyl-Lh
1-0	BoomCylSubAssy		Boom Cyl Sub Assy
1-1	31Q4-55010		Boom Safety Lock Valve
1-1-1	DRV-100A		Relief Valve
1-1-2	DCP-001A		Cap
1-2	31Y1-31720		Pipe Assy-Bv,Lh
1-3	P184-081112		Flange-Square
1-5	S107-080306		Bolt-Socket
1-6	S107-080406		Bolt-Socket
1-7	S107-080456		Bolt-Socket
2	31Q4-52120		Boom Safety Cyl-Rh
2-2	31Y1-31730		Pipe Assy-Bv,Rh
2-5	S109-080306		BOLT-SOCKET
2-6	S109-080406		BOLT-SOCKET
2-7	S109-080456		Bolt-Socket
3	P930-062050		Hose Assy-Orfs 0x90
4	P910-042046		HOSE ASSY-ORFS 0X0
5	P930-048008		Hose Assy-Orfs 0x90
6	31Q8-40500		Sensor-Pressure
7	31N4-22150		Tee-Long, Orfs
8	31N4-41140		TEE-SWIVEL,ORFS
9	X820-045151		TEE-R/TYPE,ORFS
10	31N4-22170		TEE-RUN TYPE
11	X840-525252		Tee-R/Type, Swivel, Orfs
12	X500-110001		CONNECTOR-ORFS
13	S621-011001		O-RING
14	S621-012001		O-RING
15	S631-011004		O-RING
16	S552-020102		Clamp-Band
31Y1-32150	31Y1-32150		Seal Kit
1-4	Y171-015004		O-Ring
