  5. ARM CYLINDER

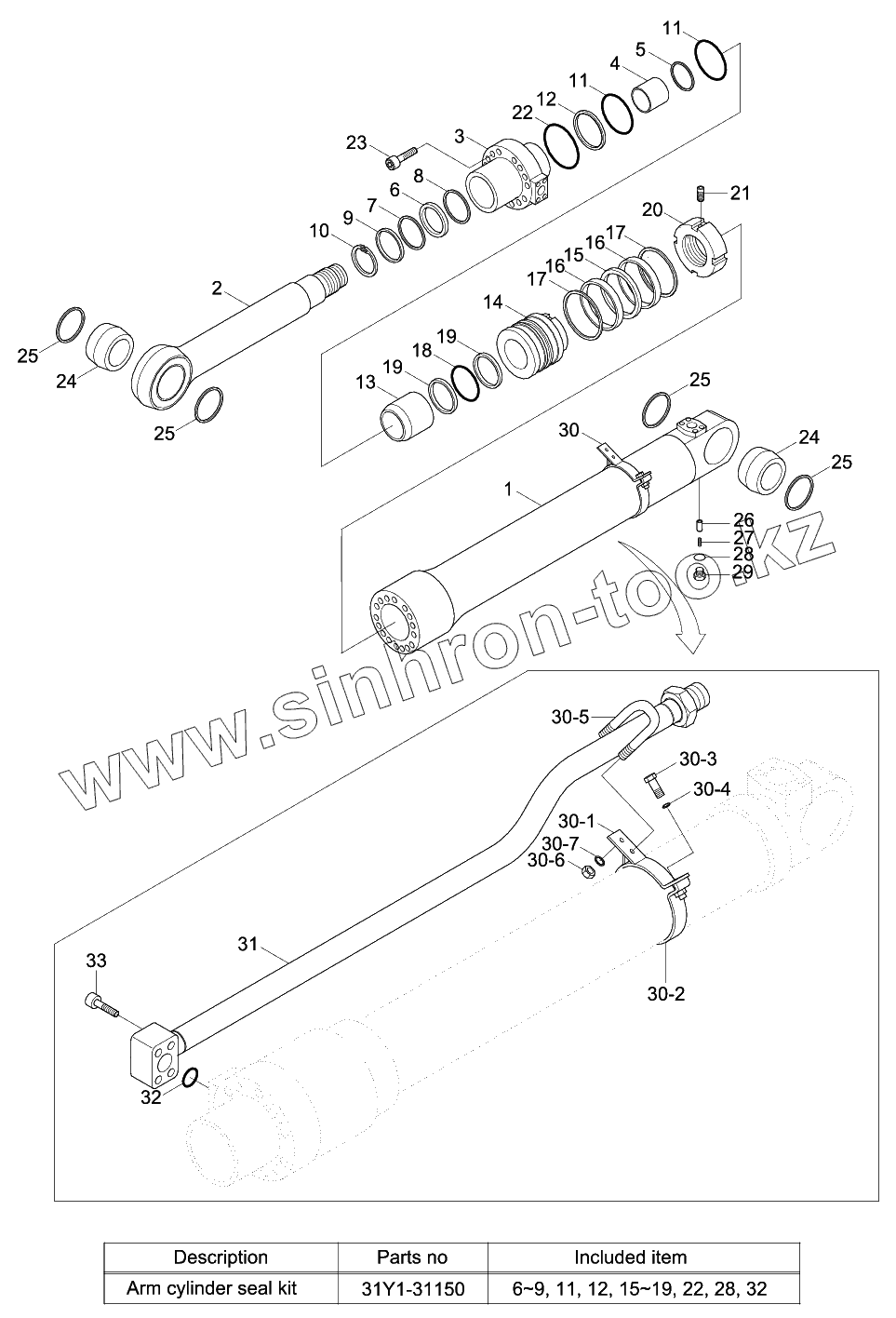

Каталог запасных частей к технике: Hyundai R140W-9. ARM CYLINDER

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
30-7
22
22
13
24
24
24
24
1
2
3
4
5
10
13
14
20
21
23
24
24
25
25
25
25
26
27
29
30
30-1
30-2
30-3
30-4
30-5
30-6
31
33
31Y1-31150
6
6
6
7
8
9
11
11
11
12
12
15
15
16
16
17
17
18
19
19
19
28
28
32
32
Позиция на иллюстрации Заводской номер детали Название детали
30-7 S411-100006 WASHER-SPRING
22 S632-060004 O-Ring
31Q4-50131 31Q4-50131 Arm Cylinder Assy
31Q4-50132 31Q4-50132 Arm Cylinder Assy
31Y1-30972 31Y1-30972 Arm Cyl Sub Assy
13 31YC-28051 Ring-Cushion
24 61Q6-98810 Bushing-Pin
24 61M9-90750 Bushing-Pin
31Q4-50130 31Q4-50130 Arm Cylinder Assy
31Y1-30971 31Y1-30971 Arm Cyl Sub Assy
1 31Y1-30980 Tube Assy
2 31Y1-31041 Rod Assy
3 31Y1-31091 Gland
4 S732-080030 Bushing-Dd2
5 Y191-086000 Ring-Snap
10 Y190-094000 Ring-Snap
13 31YC-26051 Ring-Cushion
14 31Y1-31130 Piston
20 31YC-68030 Nut-Lock
21 S114-080144 Screw-Set
23 S109-160754 Bolt-Socket
24 31YC-15080 Bushing-Pin
25 Y020-070000 Seal-Dust, Dli, Kpu
26 31YC-2A080 Valve-Check
27 31YC-99071 SPRING-COIL
29 P220-110103 PLUG-HEX
30 31Y1-31590 Band Assy
30-1 31Y1-31600 Band Sub Assy
30-2 31Y1-31610 Band Sub Assy
30-3 S011-100352 BOLT-HEX
30-4 S411-100002 WASHER-SPRING
30-5 S070-052738 U-Bolt
30-6 S205-101002 NUT-HEX
31 31Y1-31660 Pipe Assy-R
33 S107-100454 Bolt-Socket
31Y1-31150 31Y1-31150 Seal Kit
6 Y220-080013 Seal-Rod
7 Y180-080020 Ring-Back Up
8 Y240-080012 Ring-Buffer
9 Y110-080011 Wiper-Dust
11 S632-110004 O-Ring
12 S642-110003 Ring-Back Up
15 Y420-115002 Seal-Piston
16 Y310-115003 Ring-Wear
17 Y440-115000 Ring-Dust
18 S632-060004 O-Ring
19 S642-060003 Ring-Back Up
28 S631-014004 O-RING
32 Y171-019004 O-RING
