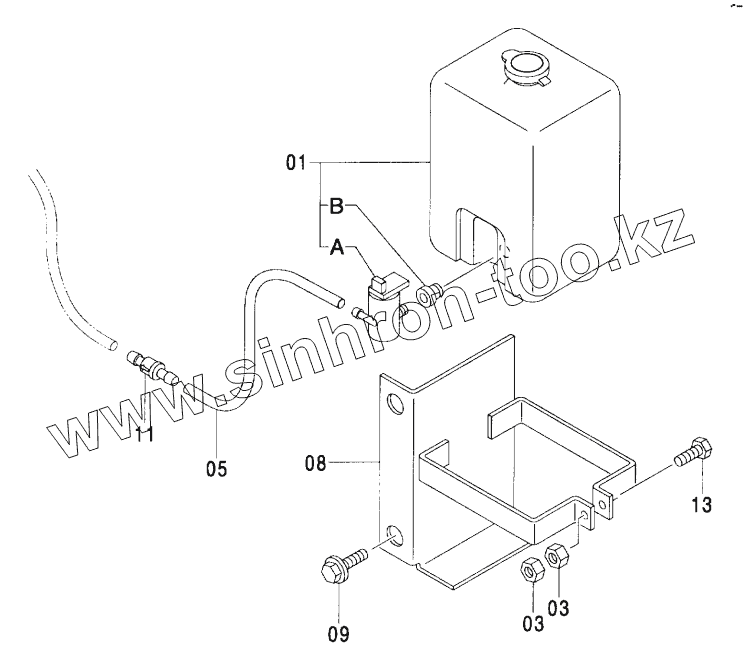

Каталог запасных частей к технике: Hitachi ZX-600. WINDOW WASHER

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано EX-100-2 (2000) EX-100-3 (2008) EX-100WD (2008) EX-120 (2008) EX-120-2 (2008) EX-160WD (2008) EX-200 (2008) EX-200-2 (2008) EX-200-3 EX-220 (2008) EX-220-2 (2008) EX-270 (2008) EX-300 (2008) EX-300-2 (2000) EX-400 Type A (2006) EX-400 Type B (2006) EX-60 (2003) EX-60-2 (2000) EX-60-3 (2008) EX-70 (2017) LX-110-7 (2008) LX-130-7 (2008) LX-150-2 (2008) LX-160-7 (2008) LX190-7/LX230-7 (2008) Zaxis 190-3 ZAXIS 200-5A (2018) ZAXIS 200LC-5A (2018) ZAXIS 210H-5A (2018) ZAXIS 210K-5A (2018) ZAXIS 210LCH-5A (2018) ZAXIS 210LCK-5A (2018) ZAXIS 330-5G (2017) ZAXIS 350H-5G (2017) ZAXIS 48U-5A (2020) ZAXIS 850-3 ZAXIS 870H-3 ZX-110 (2008) ZX-160W (2008) ZX-200 (2008) ZX-230 (2008) ZX-25 (2008) ZX-270 (2008) ZX-330 (2010) ZX-330-3 (Part № PIHH-I-3) (2008) ZX-330-3 (Part № PIHH-I-5) (2013) ZX-330-3G (2008) ZX-400R-3 (2010) ZX-450 (2006) ZX-600 (2007) Компоненты EX-100-2 (2000) Компоненты EX-100WD (2008) Компоненты EX-120 (2008) Компоненты EX-120-2 (2008) Компоненты EX-160WD (2008) Компоненты EX-200 (2008) Компоненты EX-200-2 (2008) Компоненты EX-200-3(LC, H) Компоненты EX-220 (2008) Компоненты EX-220-2 (2008) Компоненты EX-270 (2008) Компоненты EX-300 (2008) Компоненты EX-300-2 (2000) Компоненты EX-400 Type A (2006) Компоненты EX-400 Type B (2006) Компоненты EX-60 (2003) Компоненты EX-60-2 (2000) Компоненты EX-60-3 (2008) Компоненты ZAXIS 450, 470, 500, 520 (2010) Компоненты ZX-110 (2008) Компоненты ZX-120 (130) (2008) Компоненты ZX-160W (2008) Компоненты ZX-200 (2008) Компоненты ZX-230 (2008) Компоненты ZX-270 (2008) Компоненты ZX-330 (2008) Компоненты ZX-450 (2006)

Схема > Не выбрано FRAME (1) FRAME (2) FRAME (3) COUNTERWEIGHT ENGINE <STD> <USA> ENGINE <EU> ENGINE SUPPORT OIL FILTER PIPING ENGINE OIL DRAIN PIPING RADIATOR RADIATOR SUPPORT RESERVE TANK AIR CLEANER PRE CLEANER MUFFLER FUEL PIPING FUEL TANK FUEL FEED PUMP FUEL DOUBLE FILTER PUMP DEVICE TRANSMISSION (PUMP) PUMP DEVICE SUPPORT SWING DEVICE: RIGHT (1) SWING DEVICE: RIGHT (2) SWING DEVICE: LEFT (1) SWING DEVICE: LEFT (2) SWING DEVICE SUPPORT OIL TANK SUCTION PIPING DELIVERY PIPING RETURN PIPING (1) RETURN PIPING (2) DRAIN PIPING MAIN PIPING (1) MAIN PIPING (2) MAIN PIPING (3-1) MAIN PIPING (3-2) ENGINE CONTROL CABLE ENGINE CONTROL MOTOR ENGINE STOP CABLE CONTROL LEVER (FRONT & SWING) CONTROL LEVER (TRAVEL) LOCK LEVER PILOT PIPING (1) PILOT PIPING (2-1) PILOT PIPING (2-2) PILOT PIPING (3-1) PILOT PIPING (3-2) PILOT PIPING (4) PILOT PIPING (5-1) PILOT PIPING (5-2) PILOT PIPING (6-1) PILOT PIPING (6-2) PILOT PIPING (7-1) PILOT PIPING (7-2) CONSOLE CONSOLE COVER RIGHT COVER MONITOR RADIO (AM/FM) CONTROL UNIT ELECTRIC PARTS (1) ELECTRIC PARTS (2) ELECTRIC PARTS (3) ELECTRIC PARTS (4) ELECTRIC PARTS (5) ELECTRIC PARTS (6) ELECTRIC PARTS (7) <DOMESTIC> ELECTRIC PARTS (7) <EXPORT> CONSENT PARTS <EU> HEAD LAMP <600> OVER LOAD ALARM (1) <EU> OVER LOAD ARARM (2) <EU> MOTION ALARM AIR-CONDITIONER (1) AIR-CON. UNIT AIR-CONDITIONER (2-1) AIR-CONDITIONER (2-2) COMPRESSOR DUCT (AIR-CON.) DUCT (HEATER) REAR BOX (AIR-CON.) REAR BOX (12V POWER SUPPLY) CAB SUPPORT <600> CAB <600> <STD> <EU> CAB <600> <USA> CAB (1) <600> CAB (2) <600> CAB (3) <600> CAB (4) <600> CAB (5) <600> CAB (6) <600> <STD> <EU> CAB (6) <600> <USA> CAB (7) <600> CAB SUPPORT <H> CAB PARTS <H> CAB <H> CAB(1) <H> SASH <H> REAR WINDOW <H> CAB (2) <H> CAB(3) <H> CAB (4) <H> FRONT GUARD <H> SUNVISOR <H> REARVIEW MIRROR WINDOW WASHER FLOOR PARTS FLOOR PLATE SEAT SEAT BELT SEAT STAND <DOMESTIC> SEAT STAND <EXPORT> COVER FRAME COVER FRAME COVER (1) COVER (2) COVER (2) COVER (3) COVER (4) COVER (5) DUCT <STD> <USA> DUCT <EU> HEAT SHIELD COVER BATTERY COVER BATTERY COVER UNDER COVER <600> UNDER COVER <H> LUBRICATOR HANDRAIL TRACK FRAME (STD. TRACK) TRACK FRAME (LC TRACK) TRACK SIDE STEP <600> TRACK SIDE STEP <H> TRACK GUARD <600> TRACK GUARD <600LC> TRACK GUARD <650H,650LCH> FULL-LENGTH TRACK GUARD (STD. TRACK) FULL-LENGTH TRACK GUARD (LC TRACK) SWING BEARING TRAVEL DEVICE TRANSMISSION (TRAVEL) FRONT IDLER (STD. TRACK) FRONT IDLER (LC TRACK) ADJUSTER UPPER ROLLER (STD. TRACK) UPPER ROLLER (LC TRACK) LOWER ROLLER (STD. TRACK) LOWER ROLLER (LC TRACK) TRACK-LINK 600G (STD. TRACK) TRACK-LINK 600G (LC TRACK) TRACK-LINK 750G (STD. TRACK) TRACK-LINK 750G (LC TRACK) TRACK-LINK 900G (STD. TRACK) TRACK-LINK 900G (LC TRACK) CENTER JOINT TRAVEL PIPING (STD. TRACK) TRAVEL PIPING (LC TRACK) TRAVEL PIPING COVER (STD. TRACK) TRAVEL PIPING COVER (LC TRACK) LUBRICATE PIPING (SWING BEARING) STD. BOOM 7.6M HD BOOM 7.6M BE BOOM 6.6M LONG BOOM 9.2M BOOM PARTS STD. ARM 3.5M HD ARM 3.4M BE ARM 2.9M SHORT ARM 2.9M SEMI-LONG ARM 4.1M LONG ARM 5.2M BUCKET 2.0 [JIS94] BUCKET 2.3 [JIS 94] BUCKET 2.5 [JIS 94] BUCKET 2.7 [JIS 94] BUCKET 2.9 [JIS 94] ROCK BUCKET 2.8 [JIS 94] ROCK BUCKET 3.3 [JIS 94] RIPPER BUCKET 1.5 [JIS 94] ONE-POINT RIPPER FRONT PIPING (1) [STD. BOOM, HD BOOM] FRONT PIPING (2) [STD. BOOM, HD BOOM] FRONT PIPING (BE BOOM) FRONT PIPING (LONG BOOM) FRONT PIPING (LONG ARM) LUBRICATE PIPING (STD. BOOM. HD BOOM) LUBRICATE PIPING (BE BOOM) LUBRICATE PIPING (LONG BOOM) LUBRICATE PIPING (STD. ARM) LUBRICATE PIPING (HD ARM) LUBRICATE PIPING (SHORT ARM. BE ARM) LUBRICATE PIPING (SEMI-LONG ARM) AUTO. LUBRICATE SYSTEM (BASIC MACHINE) AUTO. LUBRICATE SYSTEM (STD. BOOM, HD BOOM) AUTO. LUBRICATE SYSTEM (BE BOOM) AUTO. LUBRICATE SYSTEM (STD. ARM) AUTO. LUBRICATE SYSTEM (HD ARM) AUTO. LUBRICATE SYSTEM (BE ARM) AUTO. LUBRICATE SYSTEM (SEMI-LONG ARM) HOSE RUPTURE VALVE PIPING (BOOM CYL.): 1 HOSE RUPTURE VALVE PIPING (BOOM CYL.): 2 HOSE RUPTURE VALVE PIPING (BOOM CYL.): 3 HOSE RUPTURE VALVE PIPING (ARM CYL.): 1 HOSE RUPTURE VALVE PIPING (ARM CYL.): 2 MAIN PIPING (BREAKER) FILTER (BREAKER) CONTROL PEDAL (BREAKER & CRUSHER) CONTROL PEDAL (BREAKER) <ACCELERATOR PEDAL TYPE> PILOT PIPING: 1 (BREAKER) PILOT PIPING: 2 (BREAKER & CRUSHER) PILOT PIPING: 2 (BREAKER) <ACCELERTOR PEDAL TYPE> PILOT PIPING: 3 (BRAKER & CRUSHER) ELECTRIC PARTS (BREAKER) HOUR METER (BREAKER) OKADA/FURUKAWA BREAKER PIPING (BOOM) NPK BREAKER PIPING (BOOM) BREAKER PIPING (ARM) COMMON PIPING (BREAKER & CRUSHER) COUNTERWEIGHT (REMOVAL DEVICE) COUNTERWEIGHT LIFTING DEVICE CYLINDER (REMOVAL DEVICE) CONTROL SYSTEM (REMOVAL DEVICE) PILOT PIPING (REMOVAL DEVICE) HIGH-PRESSURE PIPING (REMOVAL DEVICE) TOOLS

01

01A

01B

03

03

05

08

09

11

13

Позиция на иллюстрации	Заводской номер детали		Название детали
01	4325519		TANK, WATER
01A	4326095		MOTOR
01B	4386343		PACKING
03	M500605		NUT
05	4334203		HOSE, VINYL
08	7025226		BRACKET
09	J021230		BOLT, SEMS
11	4273335		VALVE
13	J900630		BOLT

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
