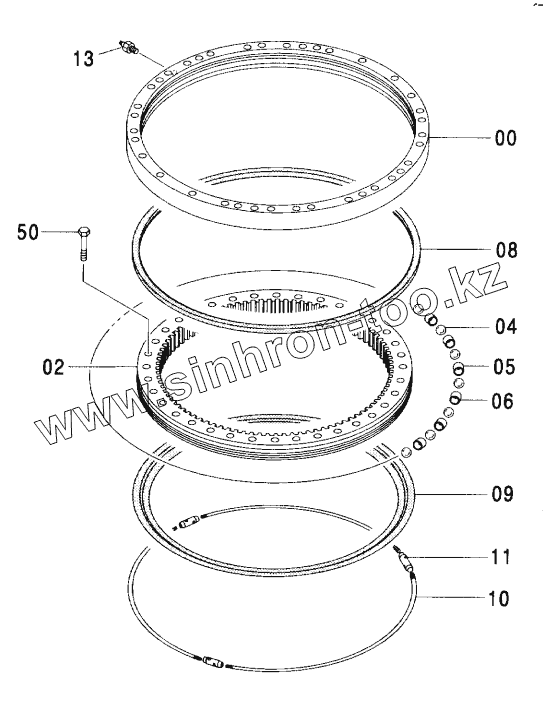

6016584
RАСЕ
2
4
5
6
8
9
10
11
13
50
Позиция на иллюстрации
Заводской номер детали
Название детали
6016584
6016584
BRG., SWINGCIRCL
RАСЕ
RАСЕ
RАСЕ
2
RАСЕ
RАСЕ
4
4292676
BALL
5
4153982
SUPPORT
6
4153983
SUPPORT
8
4293266
SEAL
9
4338459
SEAL
10
4338464
ROD
11
4245212
TURNBUCKLE
13
J75481
FITTING, GREASE
50
J833011
BOLT
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
