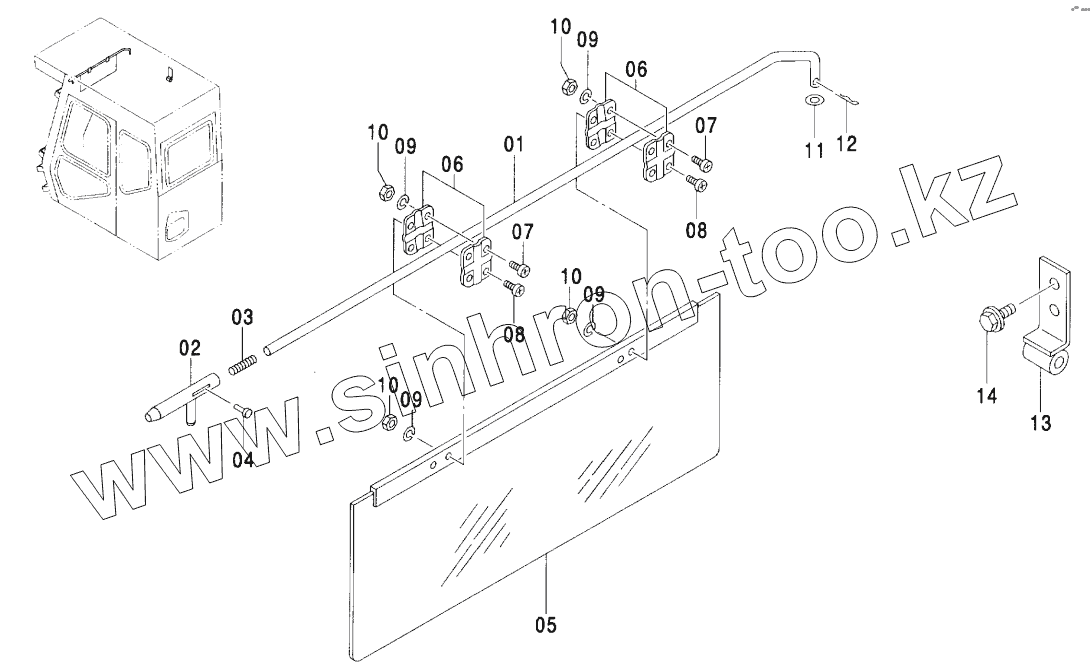

4396000
1
2
3
4
5
6
6
7
7
8
8
9
9
9
9
10
10
10
10
11
12
13
14
Позиция на иллюстрации
Заводской номер детали
Название детали
4396000
4396000
SUNVISOR
1
4400757
STAY
2
4301509
STRIKER
3
4301510
SPRING
4
4301511
RIVET
5
4301512
BOARD
6
4301513
BRACKET
7
И430513
SCREW
8
M430516
SCREW
9
A590905
WASHER, SPRING
10
M500504
NUT
11
4301514
WASHER, PLANE
12
4301515
PIN, SPLIT
13
4396813
BRACKET
14
J010614
BOLT
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
