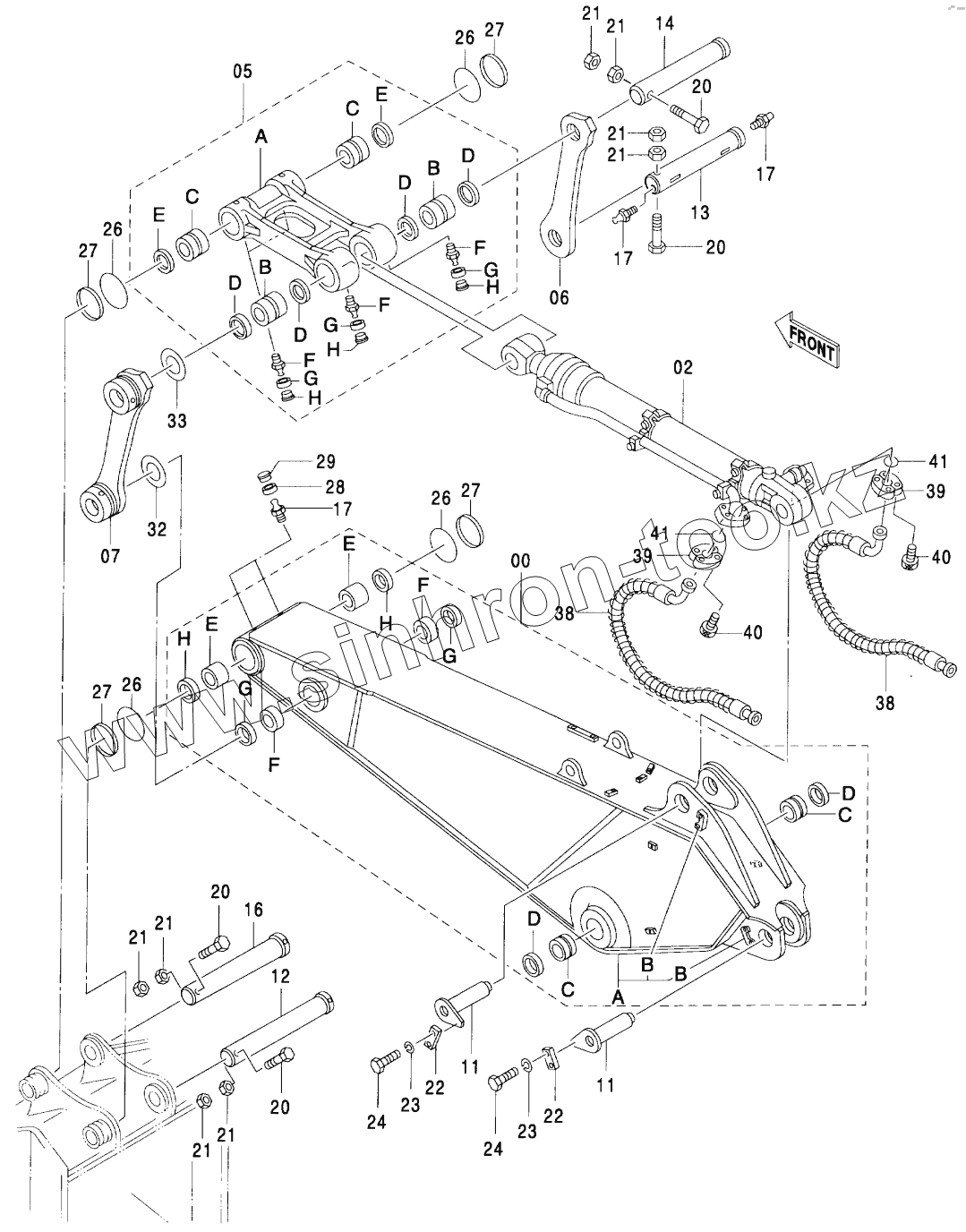

Каталог запасных частей к технике: Hitachi ZX-600. SHORT ARM 2.9M
00
00A
00B
00B
00C
00C
00D
00D
00E
00E
00F
00F
00G
00G
00H
00H
02
05
05A
05B
05B
05C
05C
05D
05D
05D
05D
05E
05E
05F
05F
05F
05G
05G
05G
05H
05H
05H
06
07
11
11
12
13
14
16
17
17
17
20
20
20
20
21
21
21
21
21
21
21
21
22
22
23
23
24
24
26
26
26
26
27
27
27
27
28
29
32
33
38
38
39
39
40
40
41
41
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 00 | 9177382 | ARM ASSY | |
| 00A | 5004138 | ARM | |
| 00B | 4297643 | STOPPER | |
| 00C | 3060580 | BUSHING | |
| 00D | 4251767 | SEAL, DUST | |
| 00E | 3079231 | BUSHING | |
| 00F | 4295981 | BUSHING | |
| 00G | 4251212 | SEAL DUST | |
| 00H | 4324194 | SEAL, DUST | |
| 001 | 4454761 | NAME-PLATE | |
| 00J | M492564 | SCREW, DRIVE | |
| 02 | 4440151 | CYL., BUCKET | |
| 05 | 9206476 | LINК | |
| 05A | 1029884 | LINK | |
| 05B | 3060583 | BUSHING | |
| 05C | 3093142 | BUSHING | |
| 05D | 4251767 | SEAL, DUST | |
| 05E | 4251752 | SEAL, DUST | |
| 05F | J75481 | FITTING, GREASE | |
| 05G | 4130686 | COLLAR | |
| 05H | 4105912 | CAP | |
| 06 | 8049555 | LINK | |
| 07 | 8050377 | LINK | |
| 11 | 8053519 | PIN | |
| 12 | 3079227 | PIN | |
| 13 | 3060596 | PIN | |
| 14 | 3060595 | PIN | |
| 16 | 3093323 | PIN | |
| 17 | J75481 | FITTING, GREASE | |
| 20 | 4295167 | BOLT | |
| 21 | J951020 | NUT | |
| 22 | 4122729 | PLATE | |
| 23 | A590920 | WASHER, SPRING | |
| 24 | J912045 | BOLT | |
| 26 | 4102191 | O-RING | |
| 27 | 4148825 | RING | |
| 28 | 4130686 | COLLAR | |
| 29 | 4105912 | CAP | |
| 32 | 4143607 | SHIM 1.2 | |
| 33 | 4296540 | SHIM 1.0 | |
| 38 | 4326995 | HOSE | |
| 39 | 4085560 | FLANGE | |
| 40 | M341240 | BOLT, SOCKET | |
| 41 | 966993 | O-RING |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
