9143093
7030393
4295642
4295642
4152347
2
2
3
3
5
6
7
7
11
12
14
14
15

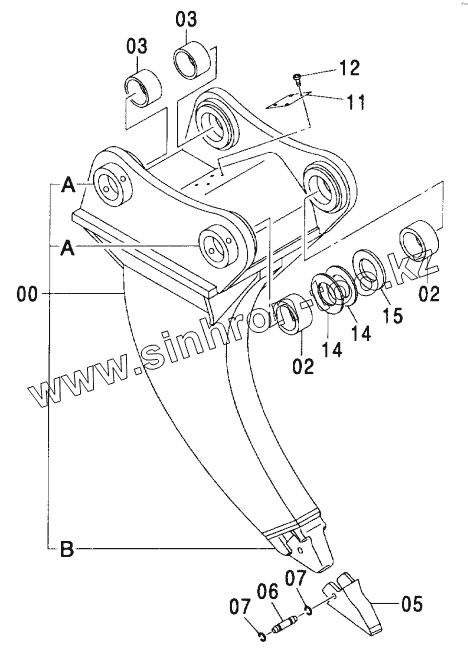

Позиция на иллюстрации
Заводской номер детали
Название детали
9143093
9143093
ONE-POINT RIPPER
7030393
7030393
RIPPER
4295642
4295642
STOPPER
4152347
4152347
NOSE, RIPPER
2
4354354
BUSHING
3
4295980
BUSHING
5
4173556
РОINТ, RIРРЕR
6
4152349
PIN, LOCK
7
4152350
RING, RETAINING
11
4209534
NAME-PLATE
12
M492564
SCREW, DRIVE
14
4139196
SHIM 1.0
15
4139197
SHIM 1.6
