LOWER ROLLER (STD. TRACK)

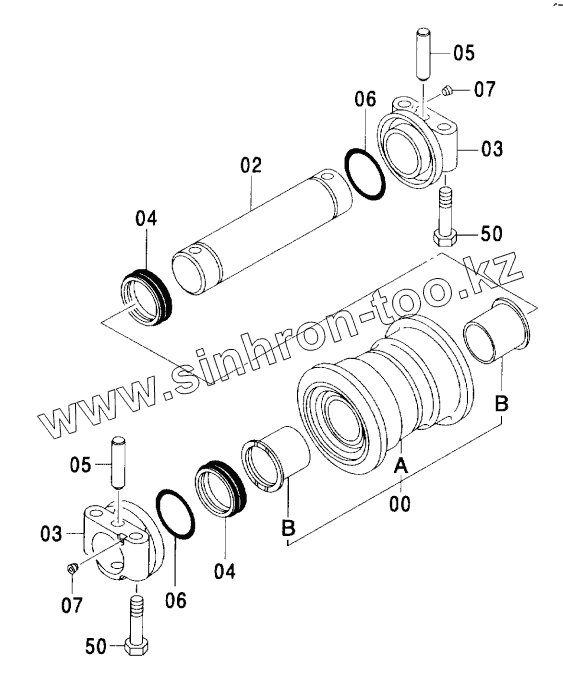

Каталог запасных частей к технике: Hitachi ZX-600. LOWER ROLLER (STD. TRACK)
zoom-in
zoom-out
enlarge
shrink
circle-right
circle-left
file-text2
info
cart
Тип техники
Не выбрано
Легковые автомобили
Грузовые автомобили и прицепы
Автобусы
Сельхозтехника
Спецтехника
Двигатели
Мототехника
Марка
Не выбрано
Ammann
BOMAG
CARMIX
CASE IH
Changlin
ChengGong
Dimex
Doosan
DYNAPAC
Foton
HAMM
Hidromek
Hitachi
Hyundai
JCB
JLG
John Deere
Komatsu
LIEBHERR
LiuGong
Lonking (LongGong)
Luneng
MANITOU
Mitsuber
New Holland
PENGPU
RM-Terex
SANY
SDLG
SEM
Shantui
Shehwa HBXG
Soosan
TIGARBO
VOGELE
Volvo
WAY
WIRTGEN
XCMG
XGMA
Xiamen
YTO
Yuchai
Zoomlion
Автокран
АЗСМ
Алтайлесмаш
Амкодор
АОМЗ
Атек
АТЗ
Балканкар Рекорд
БелАЗ
Беловеж
Борекс
Брянский Арсенал
Булат
ВЭКС
ГАЗ
Геомаш
Гидромаш
Донекс
Дормаш
Дормашина
Дорэлектромаш
ДЭЗ
ЕлАЗ
ЗЗГТ
Ижнефтемаш
Канаш-электрокар
КЗКТ
ККЗ
Клевер
Клинцовский автокрановый завод
КМЗ
КМЗ 1 Мая
Ковровец
Коммаш
Кранэкс
КЭЗ
КЭМЗ
ЛЗА
МАЗ
МЗИК
МЗКМ
МЗКТ
Михневский РМЗ
МоАЗ
Мозырский МЗ
МТЗ
ОЗП
Онежец
ПАО "ТЗА"
ППС Детва
Промтрактор
ПТЗ
Раскат
СпецАгрегат
ТВЭКС
ТТМ
УВЗ
Угличмаш
УЗТМ
ХТЗ
ЧЗКМ
ЧСДМ
ЧТЗ
ЭКСКО
ЭКСМАШ
ЮрМаш
Модель
Не выбрано
EX-100-2 (2000)
EX-100-3 (2008)
EX-100WD (2008)
EX-120 (2008)
EX-120-2 (2008)
EX-160WD (2008)
EX-200 (2008)
EX-200-2 (2008)
EX-200-3
EX-220 (2008)
EX-220-2 (2008)
EX-270 (2008)
EX-300 (2008)
EX-300-2 (2000)
EX-400 Type A (2006)
EX-400 Type B (2006)
EX-60 (2003)
EX-60-2 (2000)
EX-60-3 (2008)
EX-70 (2017)
LX-110-7 (2008)
LX-130-7 (2008)
LX-150-2 (2008)
LX-160-7 (2008)
LX190-7/LX230-7 (2008)
Zaxis 190-3
ZAXIS 200-5A (2018)
ZAXIS 200LC-5A (2018)
ZAXIS 210H-5A (2018)
ZAXIS 210K-5A (2018)
ZAXIS 210LCH-5A (2018)
ZAXIS 210LCK-5A (2018)
ZAXIS 330-5G (2017)
ZAXIS 350H-5G (2017)
ZAXIS 48U-5A (2020)
ZAXIS 850-3
ZAXIS 870H-3
ZX-110 (2008)
ZX-160W (2008)
ZX-200 (2008)
ZX-230 (2008)
ZX-25 (2008)
ZX-270 (2008)
ZX-330 (2010)
ZX-330-3 (Part № PIHH-I-3) (2008)
ZX-330-3 (Part № PIHH-I-5) (2013)
ZX-330-3G (2008)
ZX-400R-3 (2010)
ZX-450 (2006)
ZX-600 (2007)
Компоненты EX-100-2 (2000)
Компоненты EX-100WD (2008)
Компоненты EX-120 (2008)
Компоненты EX-120-2 (2008)
Компоненты EX-160WD (2008)
Компоненты EX-200 (2008)
Компоненты EX-200-2 (2008)
Компоненты EX-200-3(LC, H)
Компоненты EX-220 (2008)
Компоненты EX-220-2 (2008)
Компоненты EX-270 (2008)
Компоненты EX-300 (2008)
Компоненты EX-300-2 (2000)
Компоненты EX-400 Type A (2006)
Компоненты EX-400 Type B (2006)
Компоненты EX-60 (2003)
Компоненты EX-60-2 (2000)
Компоненты EX-60-3 (2008)
Компоненты ZAXIS 450, 470, 500, 520 (2010)
Компоненты ZX-110 (2008)
Компоненты ZX-120 (130) (2008)
Компоненты ZX-160W (2008)
Компоненты ZX-200 (2008)
Компоненты ZX-230 (2008)
Компоненты ZX-270 (2008)
Компоненты ZX-330 (2008)
Компоненты ZX-450 (2006)
Схема
>
Не выбрано
FRAME (1)
FRAME (2)
FRAME (3)
COUNTERWEIGHT
ENGINE <STD> <USA>
ENGINE <EU>
ENGINE SUPPORT
OIL FILTER PIPING
ENGINE OIL DRAIN PIPING
RADIATOR
RADIATOR SUPPORT
RESERVE TANK
AIR CLEANER
PRE CLEANER
MUFFLER
FUEL PIPING
FUEL TANK
FUEL FEED PUMP
FUEL DOUBLE FILTER
PUMP DEVICE
TRANSMISSION (PUMP)
PUMP DEVICE SUPPORT
SWING DEVICE: RIGHT (1)
SWING DEVICE: RIGHT (2)
SWING DEVICE: LEFT (1)
SWING DEVICE: LEFT (2)
SWING DEVICE SUPPORT
OIL TANK
SUCTION PIPING
DELIVERY PIPING
RETURN PIPING (1)
RETURN PIPING (2)
DRAIN PIPING
MAIN PIPING (1)
MAIN PIPING (2)
MAIN PIPING (3-1)
MAIN PIPING (3-2)
ENGINE CONTROL CABLE
ENGINE CONTROL MOTOR
ENGINE STOP CABLE
CONTROL LEVER (FRONT & SWING)
CONTROL LEVER (TRAVEL)
LOCK LEVER
PILOT PIPING (1)
PILOT PIPING (2-1)
PILOT PIPING (2-2)
PILOT PIPING (3-1)
PILOT PIPING (3-2)
PILOT PIPING (4)
PILOT PIPING (5-1)
PILOT PIPING (5-2)
PILOT PIPING (6-1)
PILOT PIPING (6-2)
PILOT PIPING (7-1)
PILOT PIPING (7-2)
CONSOLE
CONSOLE COVER
RIGHT COVER
MONITOR
RADIO (AM/FM)
CONTROL UNIT
ELECTRIC PARTS (1)
ELECTRIC PARTS (2)
ELECTRIC PARTS (3)
ELECTRIC PARTS (4)
ELECTRIC PARTS (5)
ELECTRIC PARTS (6)
ELECTRIC PARTS (7) <DOMESTIC>
ELECTRIC PARTS (7) <EXPORT>
CONSENT PARTS <EU>
HEAD LAMP <600>
OVER LOAD ALARM (1) <EU>
OVER LOAD ARARM (2) <EU>
MOTION ALARM
AIR-CONDITIONER (1)
AIR-CON. UNIT
AIR-CONDITIONER (2-1)
AIR-CONDITIONER (2-2)
COMPRESSOR
DUCT (AIR-CON.)
DUCT (HEATER)
REAR BOX (AIR-CON.)
REAR BOX (12V POWER SUPPLY)
CAB SUPPORT <600>
CAB <600> <STD> <EU>
CAB <600> <USA>
CAB (1) <600>
CAB (2) <600>
CAB (3) <600>
CAB (4) <600>
CAB (5) <600>
CAB (6) <600> <STD> <EU>
CAB (6) <600> <USA>
CAB (7) <600>
CAB SUPPORT <H>
CAB PARTS <H>
CAB <H>
CAB(1) <H>
SASH <H>
REAR WINDOW <H>
CAB (2) <H>
CAB(3) <H>
CAB (4) <H>
FRONT GUARD <H>
SUNVISOR <H>
REARVIEW MIRROR
WINDOW WASHER
FLOOR PARTS
FLOOR PLATE
SEAT
SEAT BELT
SEAT STAND <DOMESTIC>
SEAT STAND <EXPORT>
COVER FRAME
COVER FRAME
COVER (1)
COVER (2)
COVER (2)
COVER (3)
COVER (4)
COVER (5)
DUCT <STD> <USA>
DUCT <EU>
HEAT SHIELD COVER
BATTERY COVER
BATTERY COVER
UNDER COVER <600>
UNDER COVER <H>
LUBRICATOR
HANDRAIL
TRACK FRAME (STD. TRACK)
TRACK FRAME (LC TRACK)
TRACK SIDE STEP <600>
TRACK SIDE STEP <H>
TRACK GUARD <600>
TRACK GUARD <600LC>
TRACK GUARD <650H,650LCH>
FULL-LENGTH TRACK GUARD (STD. TRACK)
FULL-LENGTH TRACK GUARD (LC TRACK)
SWING BEARING
TRAVEL DEVICE
TRANSMISSION (TRAVEL)
FRONT IDLER (STD. TRACK)
FRONT IDLER (LC TRACK)
ADJUSTER
UPPER ROLLER (STD. TRACK)
UPPER ROLLER (LC TRACK)
LOWER ROLLER (STD. TRACK)
LOWER ROLLER (LC TRACK)
TRACK-LINK 600G (STD. TRACK)
TRACK-LINK 600G (LC TRACK)
TRACK-LINK 750G (STD. TRACK)
TRACK-LINK 750G (LC TRACK)
TRACK-LINK 900G (STD. TRACK)
TRACK-LINK 900G (LC TRACK)
CENTER JOINT
TRAVEL PIPING (STD. TRACK)
TRAVEL PIPING (LC TRACK)
TRAVEL PIPING COVER (STD. TRACK)
TRAVEL PIPING COVER (LC TRACK)
LUBRICATE PIPING (SWING BEARING)
STD. BOOM 7.6M
HD BOOM 7.6M
BE BOOM 6.6M
LONG BOOM 9.2M
BOOM PARTS
STD. ARM 3.5M
HD ARM 3.4M
BE ARM 2.9M
SHORT ARM 2.9M
SEMI-LONG ARM 4.1M
LONG ARM 5.2M
BUCKET 2.0 [JIS94]
BUCKET 2.3 [JIS 94]
BUCKET 2.5 [JIS 94]
BUCKET 2.7 [JIS 94]
BUCKET 2.9 [JIS 94]
ROCK BUCKET 2.8 [JIS 94]
ROCK BUCKET 3.3 [JIS 94]
RIPPER BUCKET 1.5 [JIS 94]
ONE-POINT RIPPER
FRONT PIPING (1) [STD. BOOM, HD BOOM]
FRONT PIPING (2) [STD. BOOM, HD BOOM]
FRONT PIPING (BE BOOM)
FRONT PIPING (LONG BOOM)
FRONT PIPING (LONG ARM)
LUBRICATE PIPING (STD. BOOM. HD BOOM)
LUBRICATE PIPING (BE BOOM)
LUBRICATE PIPING (LONG BOOM)
LUBRICATE PIPING (STD. ARM)
LUBRICATE PIPING (HD ARM)
LUBRICATE PIPING (SHORT ARM. BE ARM)
LUBRICATE PIPING (SEMI-LONG ARM)
AUTO. LUBRICATE SYSTEM (BASIC MACHINE)
AUTO. LUBRICATE SYSTEM (STD. BOOM, HD BOOM)
AUTO. LUBRICATE SYSTEM (BE BOOM)
AUTO. LUBRICATE SYSTEM (STD. ARM)
AUTO. LUBRICATE SYSTEM (HD ARM)
AUTO. LUBRICATE SYSTEM (BE ARM)
AUTO. LUBRICATE SYSTEM (SEMI-LONG ARM)
HOSE RUPTURE VALVE PIPING (BOOM CYL.): 1
HOSE RUPTURE VALVE PIPING (BOOM CYL.): 2
HOSE RUPTURE VALVE PIPING (BOOM CYL.): 3
HOSE RUPTURE VALVE PIPING (ARM CYL.): 1
HOSE RUPTURE VALVE PIPING (ARM CYL.): 2
MAIN PIPING (BREAKER)
FILTER (BREAKER)
CONTROL PEDAL (BREAKER & CRUSHER)
CONTROL PEDAL (BREAKER) <ACCELERATOR PEDAL TYPE>
PILOT PIPING: 1 (BREAKER)
PILOT PIPING: 2 (BREAKER & CRUSHER)
PILOT PIPING: 2 (BREAKER) <ACCELERTOR PEDAL TYPE>
PILOT PIPING: 3 (BRAKER & CRUSHER)
ELECTRIC PARTS (BREAKER)
HOUR METER (BREAKER)
OKADA/FURUKAWA BREAKER PIPING (BOOM)
NPK BREAKER PIPING (BOOM)
BREAKER PIPING (ARM)
COMMON PIPING (BREAKER & CRUSHER)
COUNTERWEIGHT (REMOVAL DEVICE)
COUNTERWEIGHT LIFTING DEVICE
CYLINDER (REMOVAL DEVICE)
CONTROL SYSTEM (REMOVAL DEVICE)
PILOT PIPING (REMOVAL DEVICE)
HIGH-PRESSURE PIPING (REMOVAL DEVICE)
TOOLS
4473719
9147735
4478098
7025473
4478112
3059751
3059751
4478113
4478113
9109493
955021
2
2
3
3
3
4
4
4
5
5
5
6
6
7
7
7
50
50
Позиция на иллюстрации
Заводской номер детали
Название детали
4473719
4473719
LOWER ROLLER ASSY
9147735
9147735
ROLLER
4478098
4478098
ROLLER
7025473
7025473
ROLLER
4478112
4478112
ROLLER
3059751
3059751
BUSHING
4478113
4478113
BUSHING
9109493
9109493
LOWER ROLLER ASSY
955021
955021
O-RING
2
2038579
AXLE
2
4478100
AXLE
3
1017552
COLLAR
3
4478101
COLLAR
4
4283636
SEAL, GROUP
4
4478102
SEAL, GROUP
5
4291848
PIN
5
4478105
PIN
6
4478111
O-RING
7
4315607
PLUG
7
4478084
PLUG
50
J932409
BOLT
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
