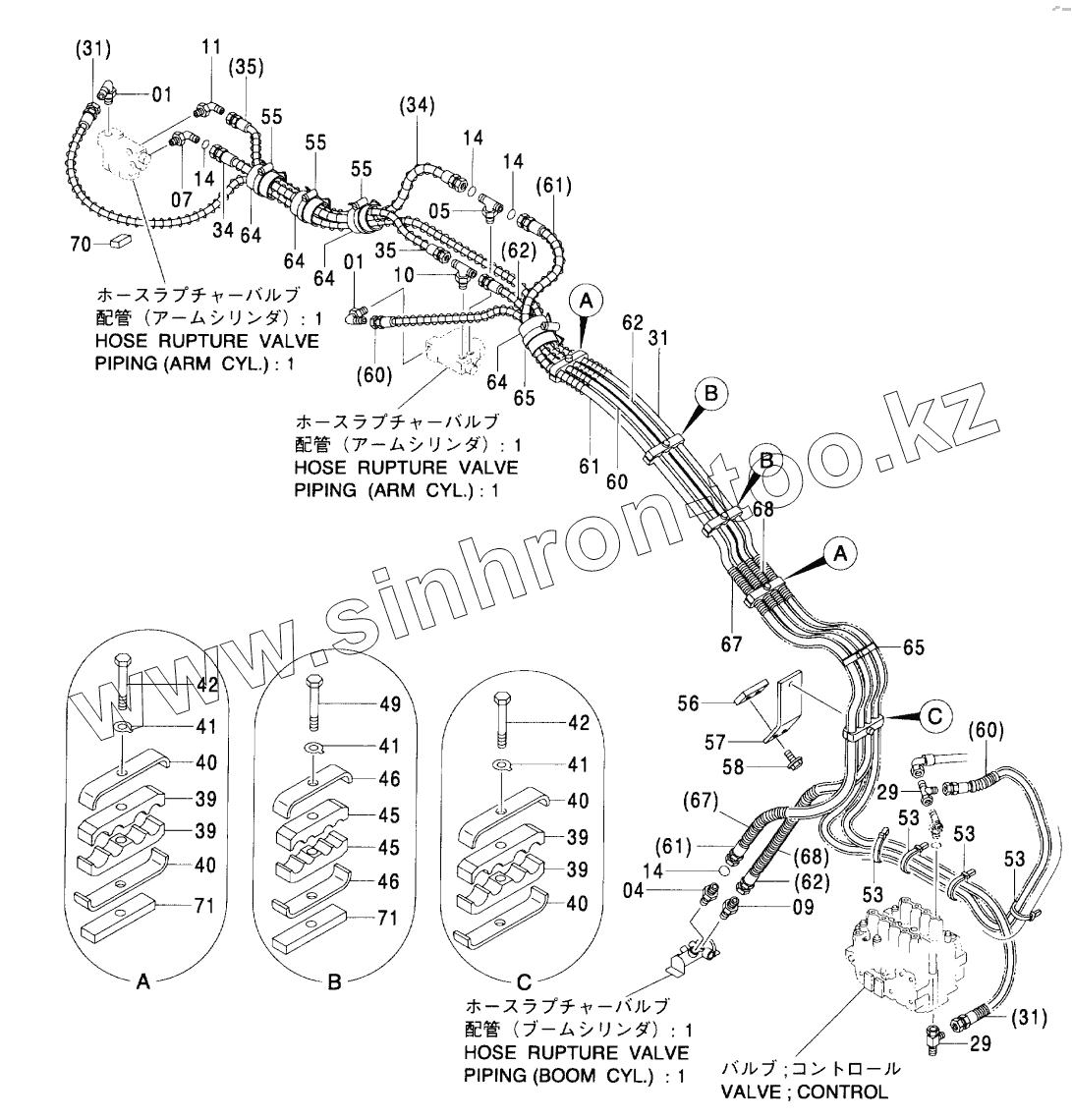

Каталог запасных частей к технике: Hitachi ZX-600. HOSE RUPTURE VALVE PIPING (ARM CYL.): 2
01
01
04
05
07
09
10
11
14
14
14
14
29
29
31
31
31
34
34
35
35
39
39
39
39
40
40
40
40
41
41
41
42
42
45
45
46
46
49
53
53
53
53
55
55
55
56
57
58
60
60
60
61
61
61
62
62
62
64
64
64
64
65
65
67
67
68
68
70
71
71
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 01 | A852333 | ELBOW S | |
| 01A | 4509180 | O-RING | |
| 04 | A853186 | ADAPTERS | |
| 04A | 4506429 | O-RING | |
| 05 | A853566 | TEE, S | |
| 05A | 4506424 | O-RING | |
| 07 | A853366 | ELBOW | |
| 07A | 4506424 | O-RING | |
| 09 | А852144 | ADAPTER, S | |
| 09A | 4506418 | O-RING | |
| 10 | A852534 | TEE, S | |
| 10A | 4509180 | O-RING | |
| 11 | A852334 | ELBOW, S | |
| 11A | 4509180 | O-RING | |
| 14 | 4187308 | O-RING | |
| 29 | 4246672 | UNION, M | |
| 31 | 4360661 | HOSE | |
| 34 | 4360633 | HOSE | |
| 35 | 4360634 | HOSE | |
| 39 | 4335756 | CLAMP, HOSE | |
| 40 | 4335755 | CLAMP | |
| 41 | A590412 | WASHER, TONGUED | |
| 42 | J901270 | BOLT | |
| 45 | 4321237 | CLAMP, HOSE | |
| 46 | 4287587 | CLAMP | |
| 49 | J901265 | BOLT | |
| 53 | 4121859 | CLIP, BAND | |
| 55 | 4507512 | CLAMP, HOSE | |
| 56 | 4238980 | SEAT, SCREW | |
| 57 | 4356570 | BRACKET | |
| 58 | J011235 | BOLT, SEMS | |
| 60 | 4360660 | HOSE | |
| 61 | 4360631 | HOSE | |
| 62 | 4360632 | HOSE | |
| 64 | 4155962 | RUBBER | |
| 65 | 4351923 | CLAMP, HOSE | |
| 67 | 4358014 | TUBE | |
| 68 | 4358013 | TUBE | |
| 70 | 4377942 | STOPPER | |
| 71 | 4154926 | SEAT, SCREW |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
