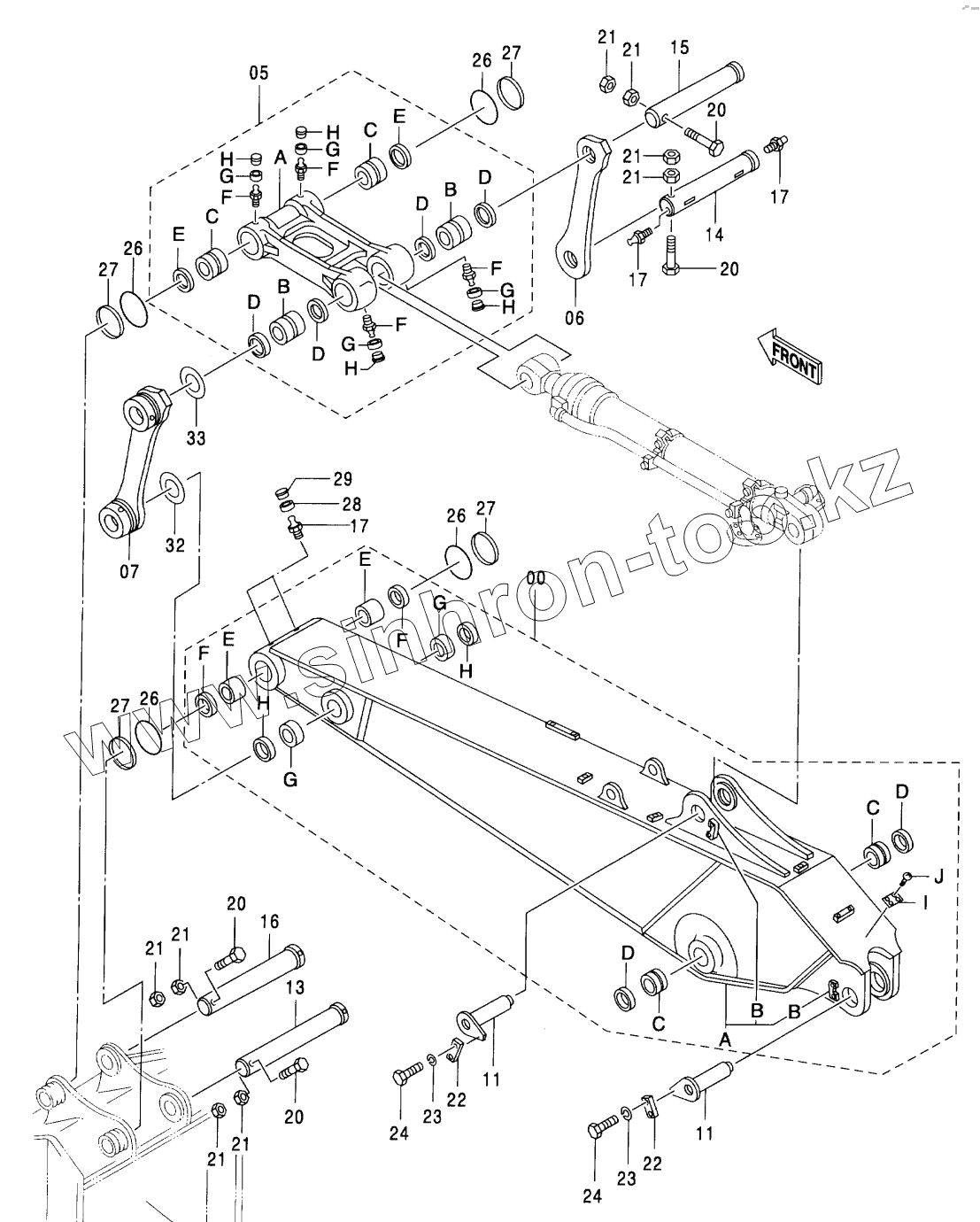

Каталог запасных частей к технике: Hitachi ZX-600. HD ARM 3.4M
5007956
4105912
4105912
4105912
4105912
4130686
4130686
4130686
4130686
J75481
J75481
J75481
J75481
4251752
4251752
4251767
4251767
3093142
3093142
3060583
3060583
1029884
M492564
4251212
4251212
4295981
4295981
4251752
4251752
3079228
3079228
4251767
4251767
4251767
4251767
3060580
3060580
4297643
4297643
9206474
4454761
5
6
7
11
11
13
14
15
16
17
17
17
20
20
20
20
21
21
21
21
21
21
21
21
22
22
23
23
24
24
26
26
26
26
27
27
27
27
28
29
32
33
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 5007956 | 5007956 | ARM | |
| 4105912 | 4105912 | CAP | |
| 4130686 | 4130686 | COLLAR | |
| J75481 | J75481 | FITTING, GREASE | |
| 4251752 | 4251752 | SEAL, DUST | |
| 4251767 | 4251767 | SEAL, DUST | |
| 3093142 | 3093142 | BUSHING | |
| 3060583 | 3060583 | BUSHING | |
| 1029884 | 1029884 | LINK | |
| M492564 | M492564 | SCREW, DRIVE | |
| 4251212 | 4251212 | SEAL DUST | |
| 4295981 | 4295981 | BUSHING | |
| 4251752 | 4251752 | SEAL, DUST | |
| 3079228 | 3079228 | BUSHING | |
| 4251767 | 4251767 | SEAL, DUST | |
| 3060580 | 3060580 | BUSHING | |
| 4297643 | 4297643 | STOPPER | |
| 9206474 | 9206474 | ARM ASSY | |
| 4454761 | 4454761 | NAME-PLATE | |
| 5 | 9206476 | LINК | |
| 6 | 8049555 | LINK | |
| 7 | 8050377 | LINK | |
| 11 | 8053519 | PIN | |
| 13 | 3079227 | PIN | |
| 14 | 3060596 | PIN | |
| 15 | 3060595 | PIN | |
| 16 | 3093323 | PIN | |
| 17 | J75481 | FITTING, GREASE | |
| 20 | 4295167 | BOLT | |
| 21 | J951020 | NUT | |
| 22 | 4122729 | PLATE | |
| 23 | A590920 | WASHER, SPRING | |
| 24 | J912045 | BOLT | |
| 26 | 4102191 | O-RING | |
| 27 | 4148825 | RING | |
| 28 | 4130686 | COLLAR | |
| 29 | 4105912 | CAP | |
| 32 | 4143607 | SHIM 1.2 | |
| 33 | 4296540 | SHIM 1.0 |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
