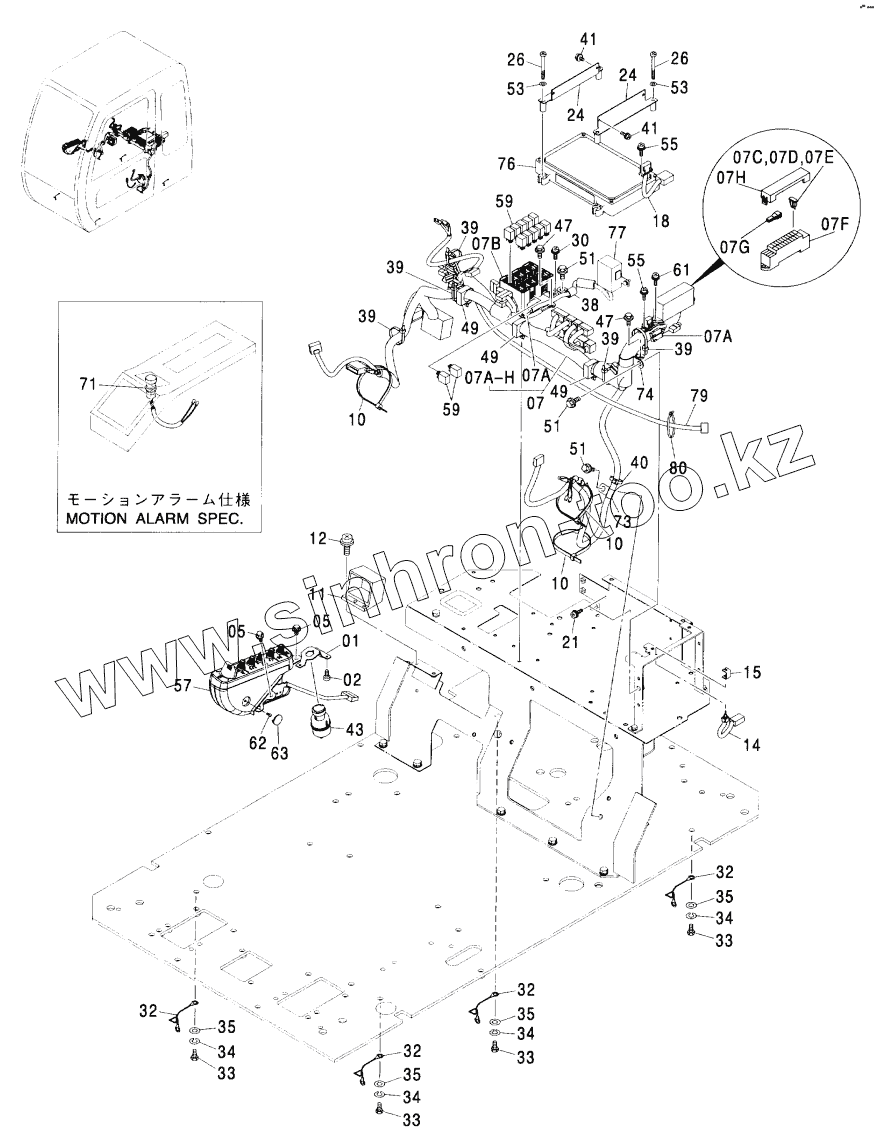

Каталог запасных частей к технике: Hitachi ZX-600. ELECTRIC PARTS (7) <EXPORT>
01
02
05
05
07
07A
07A
07B
07C
07D
07E
07F
07G
07H
10
10
10
11
12
14
15
18
21
24
24
26
26
30
32
32
32
32
33
33
33
33
34
34
34
34
35
35
35
35
38
39
39
39
39
39
40
41
41
43
47
47
49
49
49
51
51
51
53
53
55
55
57
59
59
61
62
63
71
73
74
76
77
79
80
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 01 | 3087882 | BRACKET | |
| 02 | 4361800 | SCREW, TAPPING | |
| 05 | J010814 | BOLT, SEMS | |
| 07 | 0003800 | HARNESS, WIRE | |
| 07A | 4456778 | DIODE | |
| 07B | 4427429 | BOX, RELAY | |
| 07C | 4428910 | FUSE | |
| 07D | 4428911 | FUSE | |
| 07E | 4436736 | FUSE | |
| 07F | 4456735 | BOX, FUSE | |
| 07G | 4436737 | PULLER | |
| 07H | 4443490 | COVER | |
| 10 | 4121859 | CLIP, BAND | |
| 11 | 4431090 | CONNECTOR | |
| 12 | J460620 | SCREW, SEMS | |
| 14 | 4359384 | SWITCH | |
| 15 | 4367375 | BRACKET | |
| 18 | 4439897 | HARNESS, WIRE | |
| 21 | J460616 | SCREW, SEMS | |
| 24 | 8082329 | BRACKET | |
| 26 | M430660 | SCREW | |
| 30 | J460620 | SCREW, SEMS | |
| 32 | 4281293 | HARNESS, WIRE | |
| 33 | J901016 | BOLT | |
| 34 | A590910 | WASHER, SPRING | |
| 35 | A590110 | WASHER, PLANE | |
| 38 | 4190253 | CLIP | |
| 39 | 4055312 | CLIP, BAND | |
| 40 | 4055311 | CLIP, BAND | |
| 41 | J460510 | SCREW, SEMS | |
| 43 | SWITCH | WORKING LAMP SWITCH | |
| 47 | J020816 | BOLT, SEMS | |
| 49 | 4449019 | CLIP | |
| 51 | J011020 | BOLT, SEMS | |
| 53 | A590106 | WASHER | |
| 55 | J460310 | SCREW, SEMS | |
| 57 | 4454518 | BOX, SWITCH | |
| 59 | 4436534 | RELAY | |
| 61 | J460620 | SCREW, SEMS | |
| 62 | 4381572 | SCREW | |
| 63 | 4426354 | CAP | |
| 71 | 4384758 | SWITCH, M/A | |
| 73 | 4190275 | CLIP | |
| 74 | 4190264 | CLIP | |
| 76 | 4456423 | CONTROLLER | |
| 77 | 4452160 | CONTROLLER | |
| 79 | 4468981 | НАRNЕSS, WIRЕ | |
| 80 | 4055312 | CLIP, BAND |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
