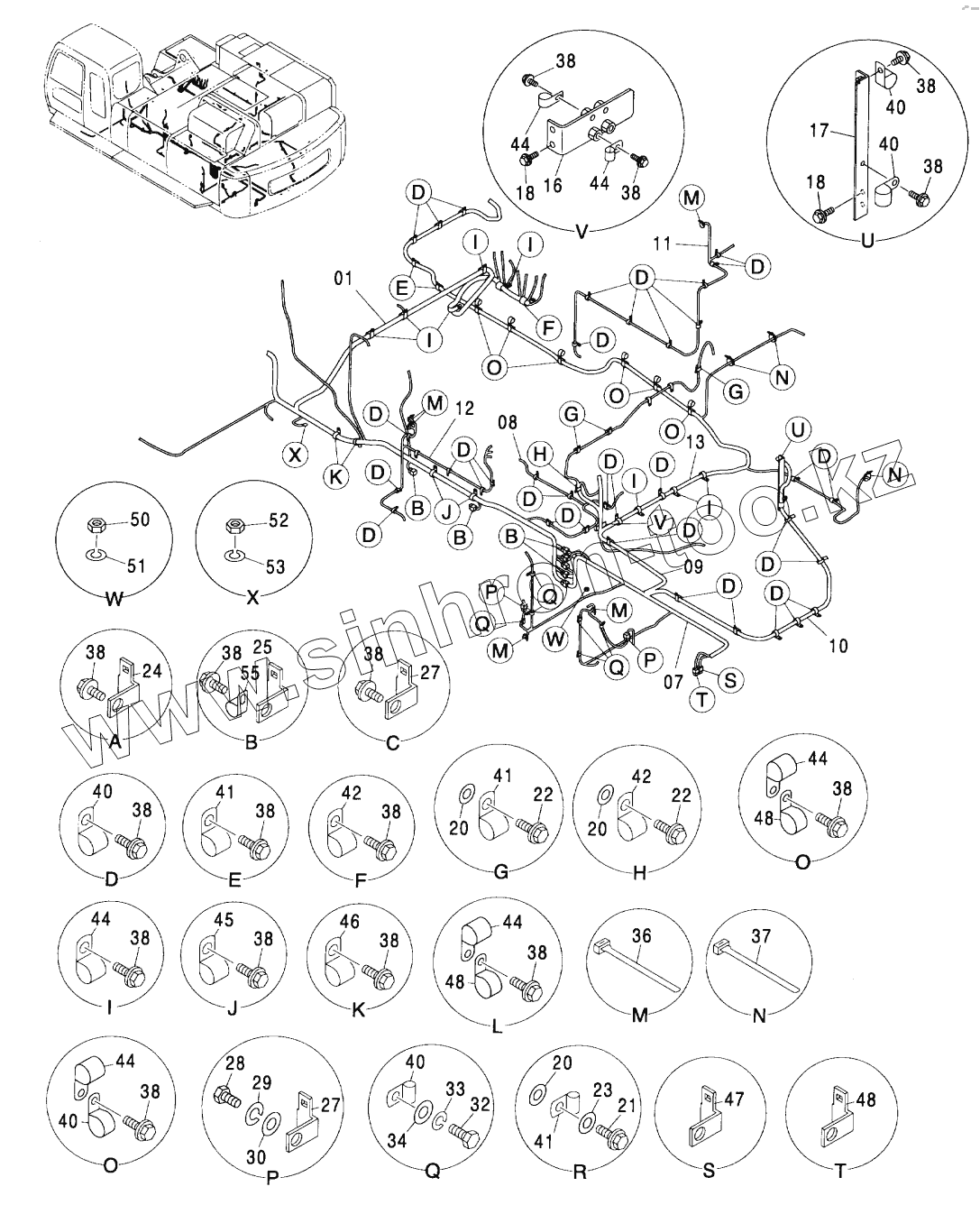

Каталог запасных частей к технике: Hitachi ZX-600. ELECTRIC PARTS (6)
1
7
8
9
10
11
12
13
16
17
18
18
20
20
20
21
22
22
23
24
25
27
27
28
29
30
32
33
34
36
37
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
40
40
40
40
40
41
41
41
42
42
44
44
44
44
44
44
45
46
47
48
48
48
50
51
52
53
55
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 1030243 | HARNESS, WIRE | |
| 7 | 2047517 | HARNESS, WIRE | |
| 8 | 3093046 | HARNESS, WIRE | |
| 9 | 2047508 | HARNESS, WIRE | |
| 10 | 3094363 | HARNESS, WIRE | |
| 11 | 3092898 | HARNESS, WIRE | |
| 12 | 3092437 | HARNESS, WIRE | |
| 13 | 4469404 | HARNESS, WIRE | |
| 16 | 9756816 | BRACKET | |
| 17 | 9756826 | BRACKET | |
| 18 | J011020 | BOLT, SEMS | |
| 20 | 4322539 | SPACER | |
| 21 | J011000 | BOLT, SEMS | |
| 22 | J011035 | BOLT, SEMS | |
| 23 | J222010 | WASHER | |
| 24 | 4418301 | BRACKET | |
| 25 | 4448037 | BRACKET | |
| 27 | 4336874 | BRACKET | |
| 28 | J900612 | BOLT | |
| 29 | A590906 | WASHER, SPRING | |
| 30 | A590106 | WASHER | |
| 32 | J900814 | BOLT | |
| 33 | A590908 | WASHER, SPRING | |
| 34 | А590108 | WASHER, PLANE | |
| 36 | 4055311 | CLIP, BAND | |
| 37 | 4055312 | CLIP, BAND | |
| 38 | J011020 | BOLT, SEMS | |
| 40 | 4190261 | CLIP | |
| 41 | 4190275 | CLIP | |
| 42 | 4190273 | CLIP | |
| 44 | 4190263 | CLIP | |
| 45 | 4192035 | CLIP | |
| 46 | 4190264 | CLIP | |
| 47 | 4257159 | BRACKET | |
| 48 | 4336875 | BRACKET | |
| 50 | J950014 | NUT | |
| 51 | A590914 | WASHER, SPRING | |
| 52 | J950010 | NUT | |
| 53 | A590910 | WASHER, SPRING | |
| 55 | 4190282 | CLIP |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
