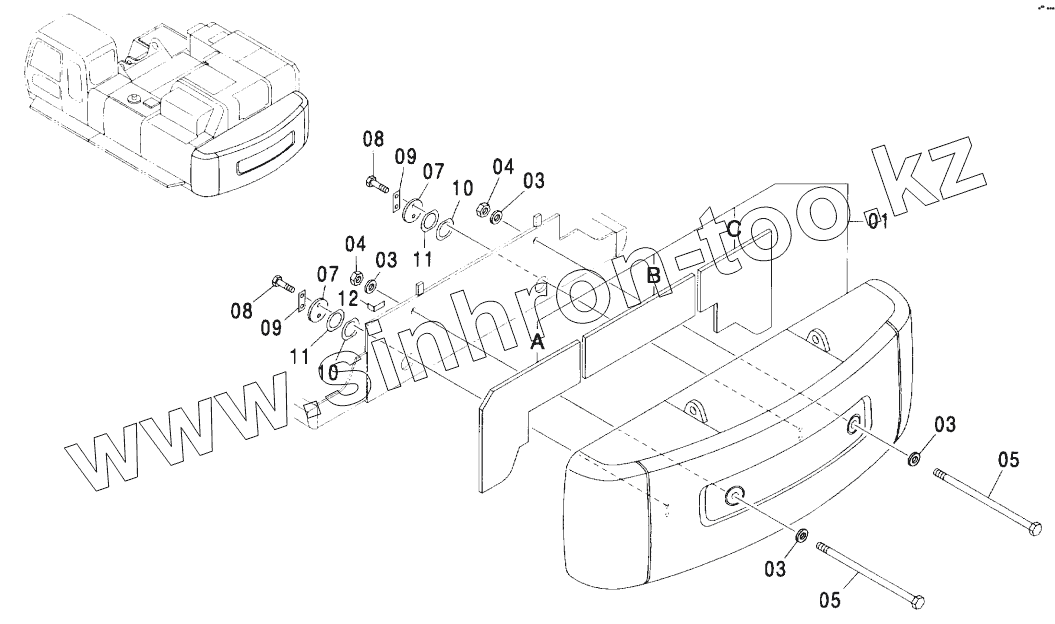

01
01A
01B
01C
03
03
03
03
04
04
05
05
07
07
08
08
09
09
10
10
11
11
12
Позиция на иллюстрации
Заводской номер детали
Название детали
01
5007705
WEIGHT, COUNTER
01A
4457845
RUBBER
01B
4457846
RUBBER
01C
4457847
RUBBER
03
4103743
WASHER
04
M660045
NUT, U
05
4334933
BOLT
07
4270269
PLATE
08
J912455
BOLT
09
4070952
WASHER, LOCK
10
4207762
SHIM 1.0
11
4207763
SHIM 0.5
12
4345741
SHIM
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
