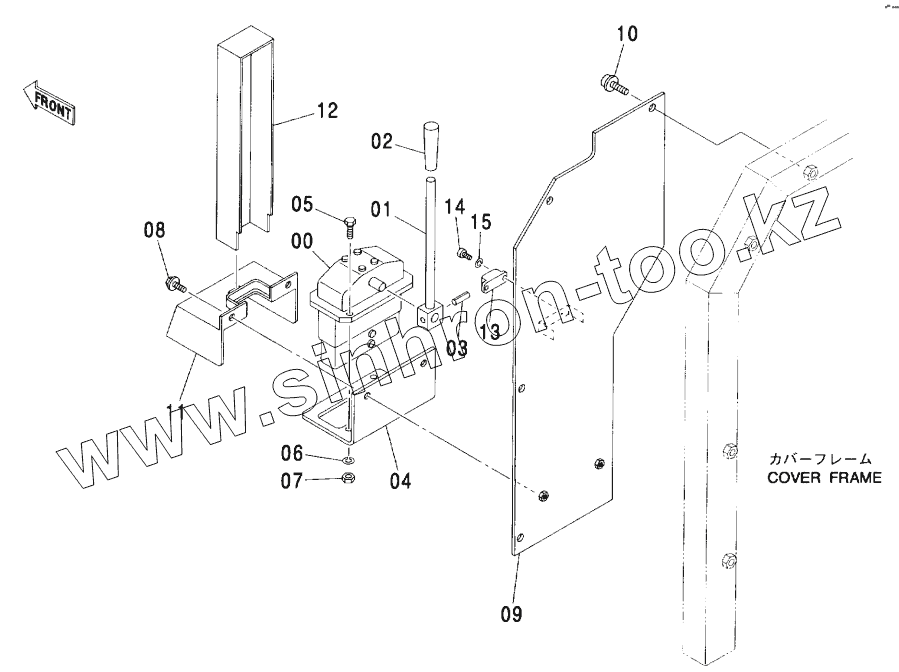

CONTROL SYSTEM (REMOVAL DEVICE)
PILOT PIPING (REMOVAL DEVICE)
HIGH-PRESSURE PIPING (REMOVAL DEVICE)
TOOLS
(9074843)
9072923
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
Позиция на иллюстрации
Заводской номер детали
Название детали
(9074843)
(9074843)
VALVE, PILOT
9072923
9072923
VALVE, PILOT
1
9732429
LEVER
2
4122424
GRIP
3
4033504
PIN, SPRING
4
3046025
BRACKET
5
J901025
BOLT
6
A590910
WASHER, SPRING
7
J950010
NUT
8
J011025
BOLT, SEMS
9
7041316
PLATE
10
J021230
BOLT, SEMS
11
8044683
COVER
12
4240984
COVER
13
4240985
MAGNET
14
M430310
SCREW
15
A590903
WASHER, SPRING
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
