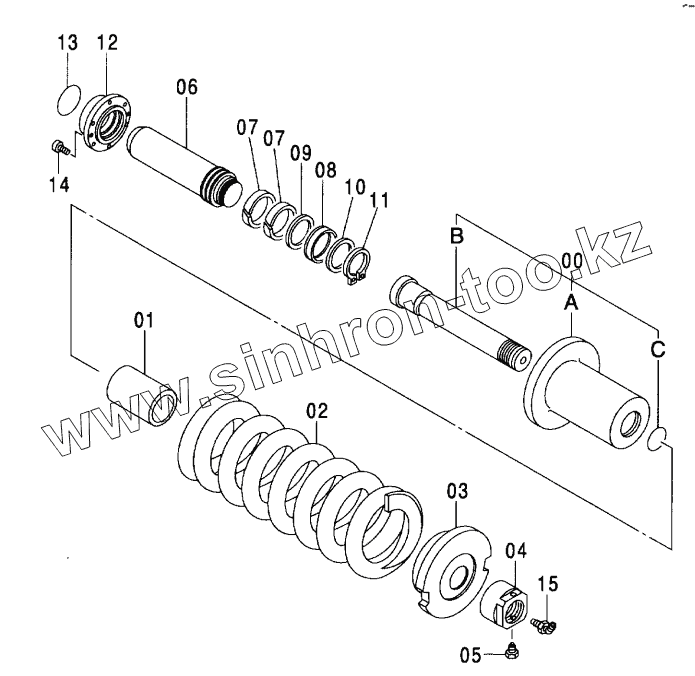

9156835
2043072
2040459
4071223
9156834
1
2
3
4
5
6
7
7
8
9
10
11
12
13
14
15
Позиция на иллюстрации
Заводской номер детали
Название детали
9156835
9156835
CYL. ASSY
2043072
2043072
CYL
2040459
2040459
ROD
4071223
4071223
O-RING
9156834
9156834
ADJUSTER ASSY
1
4379383
SPACER
2
2033235
SPRING
3
3078041
BRACKET
4
4379384
NUT
5
4215453
BOLT
6
2040457
ROD, PISTON
7
4379385
WEARING
8
4291852
PACKING, U-RING
9
4291853
RING, BACK-UP
10
4291854
PLATE
11
991351
RING, RETAINING
12
3059755
GUIDE
13
4502700
O-RING
14
M341436
BOLT SOCKET
15
4255055
VALVE
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
