5. SWING DEVICE: LEFT (1)

Каталог запасных частей к технике: Hitachi ZX-450. SWING DEVICE: LEFT (1)

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано EX-100-2 (2000) EX-100-3 (2008) EX-100WD (2008) EX-120 (2008) EX-120-2 (2008) EX-160WD (2008) EX-200 (2008) EX-200-2 (2008) EX-200-3 EX-220 (2008) EX-220-2 (2008) EX-270 (2008) EX-300 (2008) EX-300-2 (2000) EX-400 Type A (2006) EX-400 Type B (2006) EX-60 (2003) EX-60-2 (2000) EX-60-3 (2008) EX-70 (2017) LX-110-7 (2008) LX-130-7 (2008) LX-150-2 (2008) LX-160-7 (2008) LX190-7/LX230-7 (2008) Zaxis 190-3 ZAXIS 200-5A (2018) ZAXIS 200LC-5A (2018) ZAXIS 210H-5A (2018) ZAXIS 210K-5A (2018) ZAXIS 210LCH-5A (2018) ZAXIS 210LCK-5A (2018) ZAXIS 330-5G (2017) ZAXIS 350H-5G (2017) ZAXIS 48U-5A (2020) ZAXIS 850-3 ZAXIS 870H-3 ZX-110 (2008) ZX-160W (2008) ZX-200 (2008) ZX-230 (2008) ZX-25 (2008) ZX-270 (2008) ZX-330 (2010) ZX-330-3 (Part № PIHH-I-3) (2008) ZX-330-3 (Part № PIHH-I-5) (2013) ZX-330-3G (2008) ZX-400R-3 (2010) ZX-450 (2006) ZX-600 (2007) Компоненты EX-100-2 (2000) Компоненты EX-100WD (2008) Компоненты EX-120 (2008) Компоненты EX-120-2 (2008) Компоненты EX-160WD (2008) Компоненты EX-200 (2008) Компоненты EX-200-2 (2008) Компоненты EX-200-3(LC, H) Компоненты EX-220 (2008) Компоненты EX-220-2 (2008) Компоненты EX-270 (2008) Компоненты EX-300 (2008) Компоненты EX-300-2 (2000) Компоненты EX-400 Type A (2006) Компоненты EX-400 Type B (2006) Компоненты EX-60 (2003) Компоненты EX-60-2 (2000) Компоненты EX-60-3 (2008) Компоненты ZAXIS 450, 470, 500, 520 (2010) Компоненты ZX-110 (2008) Компоненты ZX-120 (130) (2008) Компоненты ZX-160W (2008) Компоненты ZX-200 (2008) Компоненты ZX-230 (2008) Компоненты ZX-270 (2008) Компоненты ZX-330 (2008) Компоненты ZX-450 (2006)

Схема > Не выбрано FRAME (1) (RIDE-ON TYPE COUNTERWEIGHT) <450, H, MT, MTH> FRAME (1) (FIT-IN TYPE COUNTERWEIGHT) <450, H, MT, MTH> FRAME (1) (FIT-IN TYPE COUNTERWEIGHT) <460> FRAME (2) <450, H, MT, MTH> FRAME (2) <460> FRAME (3) COUNTERWEIGHT (RIDE-ON TYPE) <450, H, MT, MTH> COUNTERWEIGHT SUPPORT (RIDE-ON TYPE) <450, H, NIT, MTH> COUNTERWEIGHT (FIT-IN TYPE) <450, H, MT, MTH> COUNTERWEIGHT (FIT-IN TYPE) <460> COUNTERWEIGHT SUPPORT (FIT-IN TIPE) ENGINE ENGINE SUPPORT (RIDE-ON TYPE COUNTERWEIGHT) <450, H, MT, MTH> ENGINE SUPPORT (FIT-IN TYPE COUNTERWEIGHT) OIL FILTER PIPING ENGINE OIL DRAIN PIPING RADIATOR RADIATOR SUPPORT 9RIDE-ON TYPE COUNTERWEIGHT) <450, H, MT, MTH> RADIATOR SUPPORT (FIT-IN TYPE COUNTERWEIGHT) RESERVE TANK <450, H, MT, MTH> RESERVE TANK <460> AIR CLEANER <450, H, MT, MTH> AIR CLEANER <460> PRE CLEANER <450, H, MT, MTH> PRE CLEANER <460> MUFFLER FUEL PIPING <450, H, MT, MTH> FUEL PIPING <460> FUEL TANK <450, H, MT, MTH> FUEL TANK <460> FUEL DOUBLE FILTER FUEL FEED PUMP <450, H, MT, MTH> FUEL FEED PUMP <460> PUMP DEVICE SWING DEVICE: RIGHT (1) SWING DEVICE: RIGHT (2) SWING DEVICE: LEFT (1) SWING DEVICE: LEFT (2) SWING DEVICE SUPPORT OIL TANK SUCTION PIPING DELIVERY PIPING RETURN PIPING <450, H, MT, MTH> RETURN PIPING <460> DRAIN PIPING (1) DRAIN PIPING (2) MAIN PIPING (1) <450, H, MT, MTH> MAIN PIPING (1) <460> MAIN PIPING (2) <450, H, MT, MTH> MAIN PIPING (2) MAIN PIPING (3) ENGINE CONTROL CABLE ENGINE CONTROL MOTOR ENGINE STOP CABLE CONTROL LEVER (FRONT & SWING) CONTROL LEVER (TRAVEL) <450, H, MT, MTH> CONTROL LEVER (TRAVEL) <460> LOCK LEVER CONTROL VALVE PILOT PIPING (1) PILOT PIPING (2-1) PILOT PIPING (2-2) PILOT PIPING (3) <450, H, MT, MTH> PILOT PIPING (3) <460> PILOT PIPING (4-1) <450, H, MT, MTH> PILOT PIPING (4-2) <450, H, MT, MTH> PILOT PIPING (4-1) <460> PILOT PIPING (4-2) <460> PILOT PIPING (5-1) PILOT PIPING (5-2) PILOT PIPING (5-3) PILOT PIPING (6-1) PILOT PIPING (6-2) PILOT PIPING (6-3) PILOT PIPING (7-1) PILOT PIPING (7-2) CONSOLE CONSOLE COVER CONSOLE COVER (EXPORT) <450, H, MT, MTH> RIGHT COVER RIGHT COVER (EXPORT) <450,H,ML MTH> MONITOR RADIO (AM/FM) CONTROL UNIT ELECTRIC PARTS (1) <450, H, MT, MTH> ELECTRIC PARTS (1) <460> ELECTRIC PARTS (2) ELECTRIC PARTS (3) ELECTRIC PARTS (4) <450, H, MT. MTH> ELECTRIC PARTS (4) <460> ELECTRIC PARTS (5) <450, H, MT, MTH> ELECTRIC PARTS (5) <460> ELECTRIC PARTS (6) <450, H, MT, MTH> ELECTRIC PARTS (6) <460> ELECTRIC PARTS (7) (DOMESTIC) <450, H, MT, MTH> ELECTRIC PARTS (7) (EXPORT) <450, H, MT, MTH> ELECTRIC PARTS (7) (EXPORT) <460> HEAD LAMP <450> FOG LAMP (1) <H,MTH> FOG LAMP (2) BOOM LIGHT (R) (WITH LIGHT COVER) <460> OVER LOAD ALARM (1) OVER LOAD ALARM (2) MOTION ALARM AIR-CONDITIONER (1) AIR-CON. UNIT AIR-CONDITIONER (2-1) <450, H, MT, MTH> AIR-CONDITIONER (2-2) <450, H, MT, MTH> AIR-CONDITIONER (2-1) <460> AIR-CONDITIONER (2-2) <460> COMPRESSOR CAR HEATER (1) CAR HEATER (2) DUCT (AIR-CON.) DUCT (HEATER) REAR BOX (AIR-CON.) REAR BOX (12V POWER SUPPLY) CAB SUPPORT <450,460,MT> CAB <450, MT> CAB (STD) <460> CAB (WITH GUARD SEAT) <460> CAB (WITH VANDAL HOOK) <460> CAB (OPG) <460> CAB (1) <450,460,MT> CAB (2) <450,MT> CAB (2) <460> CAB (3) <450,460,MT> CAB (3) (WITH VANDAL HOOK) <460> CAB (4) <450,460,MT> CAB (5) <450,MT> CAB (5) <460> CAB (6) <450,MT> CAB (6) <460> CAB (7) <450,460,MT> CAB (8) (OPG) <460> CAB GUARD <450, 460, MT> CAB GUARD (OPG) <460> WINDOW GUARD <460> CAB SUPPORT <H, MTH> CAB PARTS <H.MTH> CAB <H, MTH> CAB (1) <H,MTH> SASH <H,MTH> REAR WINDOW <H, MTH> REAR WINDOW <H, MTH> CAB (2) <H,MTH> CAB (3) <H,MTH> DOOR CATCH <H,MTH> CAB (4) <H,MTH> FRONT GUARD <H. MTH> SUNSHADE <450,460, MT> SUNVISOR <H,MTH> SUNVISOR <460> EXT INGUISHER <H,MTH> EXTINGUISHER (CAB OUTSIDE) <450,H> REARVIEW MIRROR WINDOW WASHER FLOOR PARTS FLOOR PLATE SEAT SUSPENSION SEAT (WITH HEATER) <460> AIR-SUSPENSION SEAT (WITH HEATER) <460> HEATER SEAT PARTS <460> SEAT BELT SEAT BELT (SUSPENSION SEAT) <460> SEAT BELT (AIR-SUSPENSION SEAT) <460> SEAT STAND <DOMESTIC> SEAT STAND COVER (1) COVER (2-1) <450, H, MT, MTH> COVER (2-2) <450, H, MT, MTH> COVER (2-3) <450, H, MT, MTH> COVER (2-1) <460> COVER (2-2) <460> COVER (2-3) <460> COVER (3-1) <450, H, MT, MTH> COVER (3-2) <450, H, MT, MTH> COVER (3-3) <450, H, MT, MTH> COVER (3-1) <460> COVER (3-2) <460> COVER (3-3) <460> COVER (4-1) <450, H, MT, MTH> COVER (4-2) <450, H, MT, MTH> COVER (4-1) <460> COVER (4-2) <460> COVER (5) (RIDE-ON TYPE COUNTERWEIGHT) <450,H,MT, MTH> COVER (5) (FIT-IN TYPE COUNTERWEIGHT) LUBRICATOR BOX <450,H,ML MTH> LUBRICATOR BOX <460> ENGINE COVER <450, H, MT, MTH> ENGINE COVER <450, H, MT, MTH> ENGINE COVER <460> UNDER COVER <450, MT> UNDER COVER <460> UNDER COVER <H, MTH> HANDRAIL ELECTRIC GREASE GUN TRACK FRAME (STD. TRACK) TRACK FRAME (LC TRACK) <450LC, 450LCH> TRACK FRAME (LC TRACK) <460> TRACK FRAME (MT TRACK) TRACK SIDE STEP <450> TRACK SIDE STEP <460> TRACK SIDE STEP <H> TRACK SIDE STEP <MT> TRACK SIDE STEP <MTH> ADDITIONAL STEP <460> TRACK GUARD <450> TRACK GUARD <450LC> TRACK GUARD <450H> TRACK GUARD <450LCH, 460LCH> TRACK GUARD <480MT> TRACK GUARD <480MTH> FULL-LENGTH TRACK GUARD (STD. TRACK) FULL-LENGTH TRACK GUARD (LC TRACK) FULL-LENGTH TRACK GUARD (MT TRACK) TRACK UNDER COVER <460> SWING BEARING <450, H, MT, MTH> SWING BEARING <460> TRAVEL DEVICE (STD. TRACK, LC TRACK) TRAVEL DEVICE (MT TRACK) TRANSMISSION (TRAVEL) (MT TRACK) FRONT IDLER (L) (STD. TRACK) FRONT IDLER (R) (STD. TRACK) FRONT IDLER (LC TRACK) FRONT IDLER (MT TRACK) ADJUSTER (STD. TRACK, LC TRACK) ADJUSTER (MT TRACK) UPPER ROLLER (STD. TRACK) UPPER ROLLER (LC TRACK) UPPER ROLLER (MT TRACK) LOWER ROLLER (STD. TRACK) LOWER ROLLER (LC TRACK) LOWER ROLLER (MT TRACK) TRACK-LINK 600G (STD. TRACK) TRACK-LINK 600G (LC TRACK) TRACK-LINK 600G (MT TRACK) TRACK-LINK 750G (STD. TRACK) TRACK-LINK 750G (LC TRACK) TRACK-LINK 750G (MT TRACK) TRACK-LINK 900G (LC TRACK) TRACK-LINK 900G (MT TRACK) CENTER JOINT TRAVEL PIPING (STD. TRACK) TRAVEL PIPING (LC TRACK, MT TRACK) TRAVEL PIPING COVER (STD. TRACK, LC TRACK) TRAVEL PIPING COVER (MT TRACK) LUBRICATE PIPING (SWING BEARING) STD. BOOM 7.0M <450, MT> H BOOM 7.0M <H, MTH, 460> BE BOOM 6.3M BOOM PARTS STD. ARM 3.4M SHORT ARM 2.9M <450, H, MT, MTH> LONG ARM 4.9M <450, H, MT, MTH> SEMI-LONG ARM 3.9M H ARM 3.4M <H,MTH,460> BE ARM 2.9M BUCKET 1.15 (JIS 94) <450, H, MT, MTH> BUCKET 1.4 (JIS 94) <450, H, MT, MTH> BUCKET 1.6 ( JIS 94) BUCKET 1.9 (JIS 94) BUCKET 2.1 (JIS 94) BUCKET 2.3 (JIS 94) ROCK BUCKET 1. 9 [J IS 94) ROCK BUCKET 1.9 (JIS 94) (SIDEBAR-TYPE) RIPPER BUCKET 1.3 (JIS 94) ONE-POINT RIPPER FRONT PIPING (STD. BOOM, H BOOM) FRONT PIPING (BE BOOM) FRONT PIPING (STD. ARM, H ARM) FRONT PIPING (BE ARM) FRONT PIPING (SHORT ARM) <450, H, MT, MTH> FRONT PIPING (LONG ARM) <450, H, MT, MTH> FRONT PIPING (SEMI-LONG ARM) AUTO. LUBRICATE SYSTEM <450, H, MT, MTH> AUTO. LUBRICATE SYSTEM <460> AUTO. LUBRICATE PIPING (BOOM): 1 <450, H, MT, MTH> AUTO. LUBRICATE PIPING (BOOM): 1 <450, H, MT, MTH> AUTO. LUBRICATE PIPING (BOOM): 2 <450, H, MT, MTH> AUTO. LUBLICATE PIPING (ARM): 1 <450, H, HT, MTH> AUTO. LUBRICATE PIPING (ARM): 2 <450, H, MT, MTH> AUTO. LUBRICATE PIPING (BOOM): DIVIDER VALVE 1 <450, H, MT, MTH> AUTO. LUBRICATE PIPING (BOOM): DIVIDER VALVE 2 <450, H, MT, MTH> AUTO. LUBRICATE PIPING (ARM): DIVIDER VALVE <450, H, MT, MTH> LUBRICATE PIPING (BOOM) LUBRICATE PIPING (BE BOOM) LUBRICATE PIPING (ARM) LUBRICATE PIPING (BE ARM) HOSE RUPTURE VALVE PIPING (BOOM): 1 HOSE RUPTURE VALVE PIPING (BOOM): 2 HOSE RUPTURE VALVE PIPING (BOOM): 3 HOSE RUPTURE VALVE PIPING (BOOM): 4 HOSE RUPTURE VALVE PIPING (ARM): 1 HOSE RUPTURE VALVE PIPING (ARM): 2 HOSE RUPTURE VALVE PIPING (BE ARM): 2 HOSE RUPTURE VALVE PIPING (ARM): 3 LOADER FRONT (1) <450, H, MT, MTH> LOADER FRONT (2) <450, H, MT, MTH> LOADER MAIN PIPING (1) <450, H, MT, MTH> LOADER MAIN PIPING (2) <450, H, MT, MTH> LOADER CONTROL LEVER <450, H, MT, MTH> LOADER PILOT PIPING (1) <450, H, MT, MTH> LOADER PILOT PIPING (2-1) <450,H,MT, MTH> LOADER PILOT PIPING (2-2) <450, H. MT. MTH> LOADER FRONT PIPING (1) <450, H, MT, MTH> LOADER FRONT PIPING (2) <450, H, MT, MTH> LOADER LUBRICATE PIPING <450, H, MT, MTH> LOADER BUCKET 2. 3 (BOTTOM DUMP) <450, H, MT, MTH> LOADER BUCKET 2.6 (BOTTOM DUMP) <450, H, MT, MTH> MAIN PIPING (BREAKER) <450, H, MT, MTH> MAIN PIPING (BREAKER) <460> FILTER (BREAKER) CONTROL PEDAL (BREAKER) CONTROL PEDAL (BREAKER) CONTROL PEDAL (BREAKER) [ACCELERATOR PEDAL TYPE] PILOT PIPING: 1 (BREAKER) PILOT PIPING: 1 (BREAKER) PILOT PIPING: 2 (BREAKER) PILOT PIPING: 2 (BREAKER) PILOT PIPING: 2 (BREAKER) [ACCELERTOR PEDAL TYPE] BREAKER PARTS ELECTRIC PARTS (BREAKER) BOOM PARTS (BREAKER) ARM PARTS (BREAKER) FRONT PIPING: 1 (OKADA/FURUKAWA BREAKER) (STD. BOOM, H BOOM) <450,H,MT, MTH> FRONT PIPING: 2 (OKADA/FURUKAWA BREAKER) (STD. BOOM, H BOOM) <450,H,MT, MTH> FRONT PIPING: 1 (NPK BREAKER) <450, H,MT,MTH> FRONT PIPING: 2 (NKP BREAKER) <450, H,MT,MTH> BOOM PIPING (STD. BOOM, H BOOM) (BREAKER & CRUSHER) BOOM PIPING (BE BOOM) (BREAKER & CRUSHER) ARM PIPING (STD. ARM, H ARM) (BREAKER & CRUSHER) ARM PIPING (BE ARM) (BREAKER & CRUSHER) COMMON PIPING (BRAKER & CRUSHER) PILOT PIPING (BRAKER & CRUSHER) NAME-PLATE (BREAKER) <450, H, MT, MTH> ELECTRIC TYPE CONTROL PARTS <460> QUICKHITCH PIPING (STD. BOOM, H BOOM) <460> QUICKHITCH PIPING (BE BOOM) <460> QUICKHITCH PIPING (STD. ARM, H ARM) <460> QUICKHITCH PIPING (BE ARM) <460> QUICKHITCH PIPING (SEMI-LONG ARM) <460> ASSIST PIPING (STD. BOOM, H BOOM) ASSIST PIPING (BE BOOM) ASSIST PIPING (STD. ARM, H ARM) ASSIST PIPING (BE ARM) ASSIST PIPING (SEMI-LONG ARM) QUICKHITCH / ASSIST COMMON PARTS (STD. BOOM, H BOOM) QUICKHITCH / ASSIST COMMON PARTS (BE BOOM) CLAMSHELL PIPING (STD. ARM, H ARM) CLAMSHELL PIPING (BE ARM) CLAMSHELL PIPING (SEMI-LONG ARM) COUNTERWEIGHT (REMOVAL DEVICE) <450, H, MT, MTH> C/W LIFTING DEVICE <450,H, MT, MTH> CYLINDER (REMOVAL DEVICE) <450,H,MT, MTH> CONTROL SYSTEM (REMOVAL DEVICE) <450,H,MT, MTH> PILOT PIPING (REMOVAL DEVICE) <450, H, MT, MTH> HIGH-PRESSURE PIPING (REMOVAL DEVICE) <450,H,MT, MTH> TOOLS NAME-PLATE (1) <450, MT> NAME-PLATE (1) <H, MTH> NAME-PLATE (1) <460> NAME-PLATE (2) <450,MT> NAME-PLATE (2) <H, MTH> NAME-PLATE (2) <460>

9180776

4423009

1

3

4

5

6

7

9

10

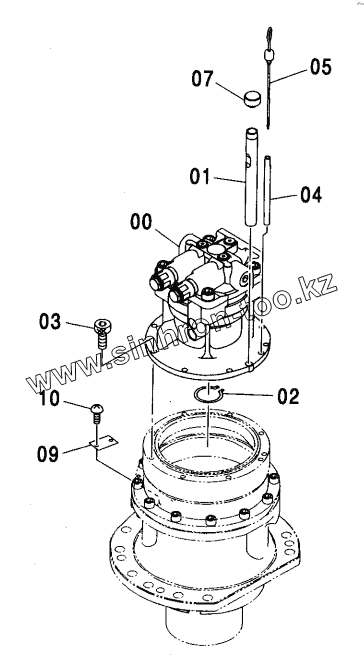

Позиция на иллюстрации	Заводской номер детали		Название детали
9180776	9180776		SWING DEVICE, L
4423009	4423009		MOTOR, OIL
1	991342		RING, RETAINING
3	M341228		BOLT, SOCKET
4	4264452		PIPE
5	3074223		GAUGE
6	4332658		PIPE
7	4343365		CAP
9	3053093		NAME-PLATE
10	M492564		SCREW, DRIVE

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
