LUBRICATE PIPING (BE ARM)

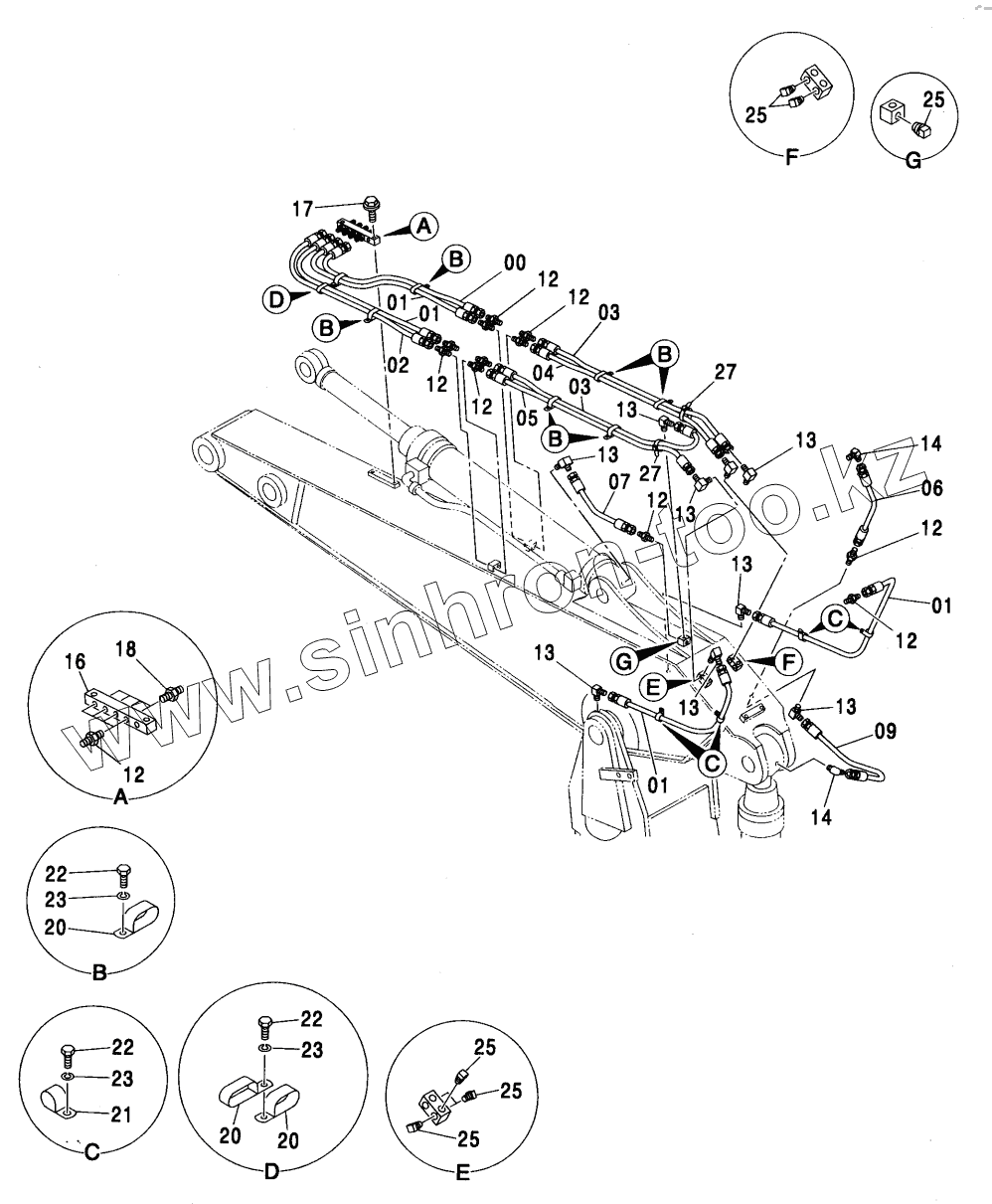

Каталог запасных частей к технике: Hitachi ZX-450. LUBRICATE PIPING (BE ARM)
