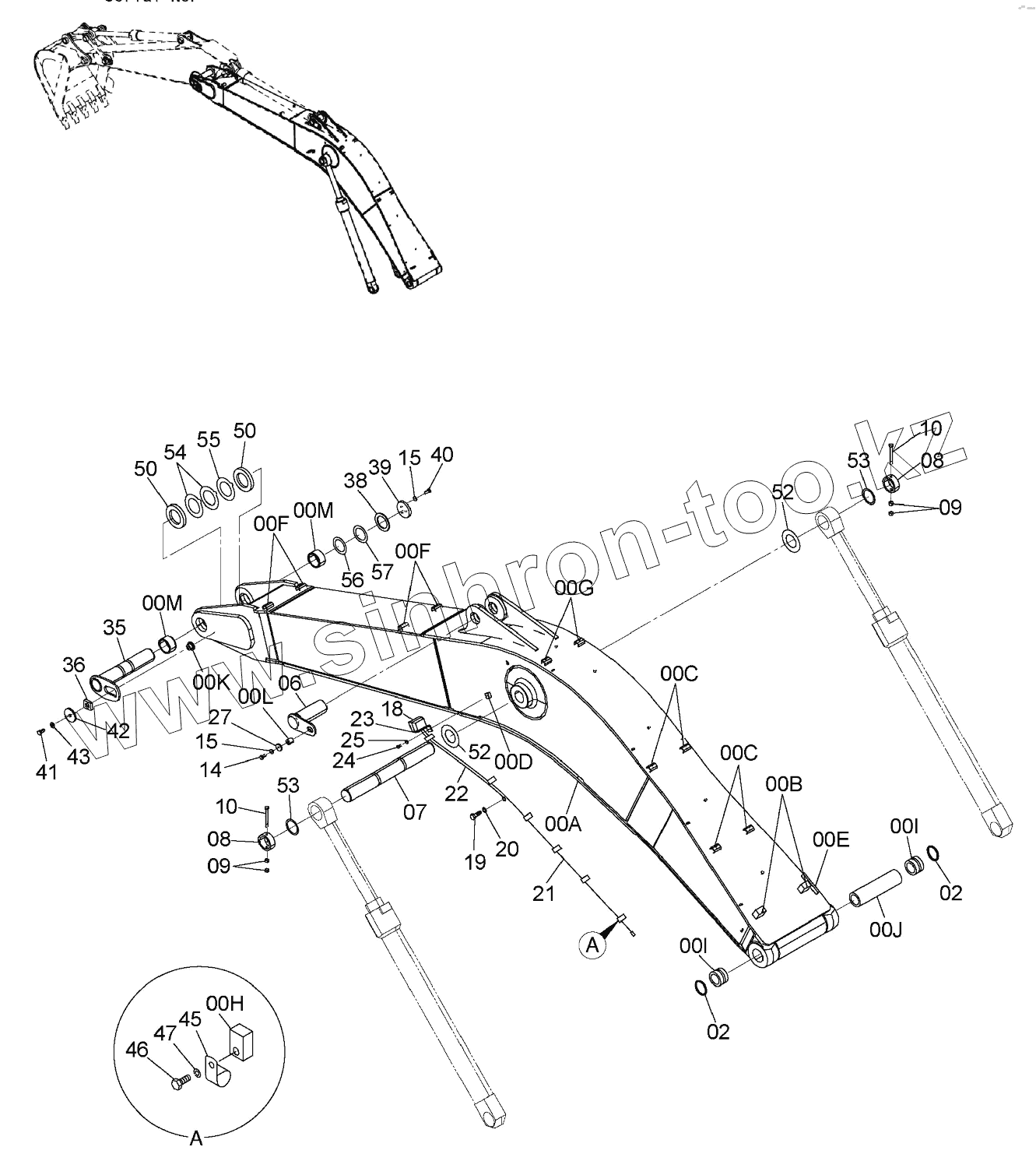

Каталог запасных частей к технике: Hitachi ZX-400R-3. R BOOM <R>
00
00A
00B
00C
00C
00D
00E
00F
00F
00G
00H
00I
00I
00J
00K
00L
00M
00M
02
02
06
07
08
08
09
09
10
10
14
15
15
18
19
20
21
22
23
24
25
27
35
36
38
39
40
41
42
43
45
46
47
50
50
52
52
53
53
54
55
56
57
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 00 | 7052473 | BOOM | |
| 00A | 5011306 | BOOM | |
| 00B | 4620203 | SEAT SCREW | |
| 00C | 9767564 | SEAT SCREW | |
| 00D | 4644727 | SEAT SCREW | |
| 00E | 4466642 | SEAT SCREW | |
| 00F | 9767565 | SEAT SCREW | |
| 00G | 9767566 | SEAT SCREW | |
| 00H | 4195689 | SEAT,SCREW | |
| 00I | 3102235 | BUSHING | |
| 00J | 4619893 | BUSHING | |
| 00K | 4611731 | STOPPER | |
| 00L | 4438594 | SEAT SCREW | |
| 00M | 4619896 | BUSHING | |
| 02 | 4251212 | SEAL DUST | |
| 06 | 8096435 | PIN | |
| 07 | 3079491 | PIN | |
| 08 | 4662435 | STOPPER | |
| 09 | J950020 | NUT | |
| 10 | 4435584 | PIN, STOPPER | |
| 14 | J921840 | BOLT | |
| 15 | J257218 | WASHER, SPRING | |
| 18 | 4336570 | LAMP, HEAD | |
| 18A | 4326801 | LENS, UNIT | |
| 18B | 4326802 | FRAME | |
| 18C | 4285648 | BULB | |
| 18D | 4326803 | GASKET | |
| 18E | 4307026 | WASHER | |
| 18F | 4307027 | SCREW | |
| 18G | A590114 | WASHER | |
| 18H | A590914 | WASHER, SPRING | |
| 18I | J952014 | NUT | |
| 19 | M430610 | SCREW | |
| 20 | A590906 | WASHER, SPRING | |
| 21 | 4271787 | HARNESS WIRE | |
| 22 | 4271788 | HARNESS, WIRE | |
| 23 | 4224631 | BRACKET | |
| 24 | J901425 | BOLT | |
| 25 | A590914 | WASHER, SPRING | |
| 27 | 4441471 | PLATE | |
| 35 | 8092014 | PIN | |
| 36 | 4611688 | BLOCK | |
| 38 | 4611648 | SPACER | |
| 39 | 4611642 | STOPPER | |
| 40 | J921850 | BOLT | |
| 41 | J922245 | BOLT | |
| 42 | 4611733 | PLATE | |
| 43 | J257222 | WASHER, SPRING | |
| 45 | 4190271 | CLIP | |
| 46 | J901016 | BOLT | |
| 47 | A590910 | WASHER, SPRING | |
| 50 | 4667861 | PLATE | |
| 52 | 4387440 | PLATE THRUST 1.0mm | |
| 53 | 4387444 | PLATE THRUST 1.0mm | |
| 54 | 4373798 | PLATE THRUST 1.0mm | |
| 55 | 4373799 | PLATE THRUST 2.0mm | |
| 56 | 4669550 | SHIM 2.3mm | |
| 57 | 4669551 | SHIM 3.2mm |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
