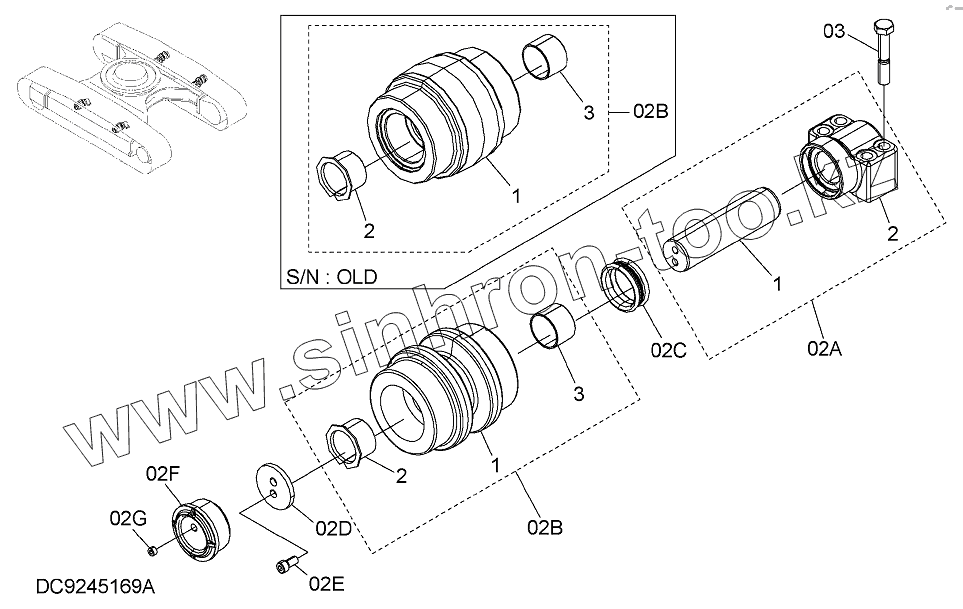

9245169
02
02A
02A1
02A2
02B
02B1
02B2
02B3
02C
02D
02E
02F
02G
02
02A
02A1
02A2
02B
02B1
02B2
02B3
02C
02D
02E
02F
02G
03
Позиция на иллюстрации
Заводской номер детали
Название детали
9245169
9245169
UPPER ROLLER ASSY
02
9245117
ROLLER, UPPER
02A
9245119
BRACKET
02A1
3103617
SHAFT
02A2
2053014
BRACKET
02B
9245118
ROLLER
02B1
2051920
ROLLER
02B2
3103618
BUSHING
02B3
3103619
BUSHING
02C
4479926
SEAL GROUP
02D
4628511
WASHER
02E
M351225
BOLT, SOCKET
02F
3103620
COVER
02G
4315607
PLUG
02
9305980
ROLLER, UPPER
02A
9245119
BRACKET
02A1
3103617
SHAFT
02A2
2053014
BRACKET
02B
9305981
ROLLER
02B1
7057363
ROLLER
02B2
3116949
BUSHING
02B3
3116948
BUSHING
02C
4479926
SEAL GROUP
02D
4628511
WASHER
02E
M351225
BOLT, SOCKET
02F
2058089
COVER
02G
4315607
PLUG
03
4647124
BOLT
