Каталог запасных частей к технике: Hitachi ZX-330-3G. PRE-CLEANER

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано EX-100-2 (2000) EX-100-3 (2008) EX-100WD (2008) EX-120 (2008) EX-120-2 (2008) EX-160WD (2008) EX-200 (2008) EX-200-2 (2008) EX-200-3 EX-220 (2008) EX-220-2 (2008) EX-270 (2008) EX-300 (2008) EX-300-2 (2000) EX-400 Type A (2006) EX-400 Type B (2006) EX-60 (2003) EX-60-2 (2000) EX-60-3 (2008) EX-70 (2017) LX-110-7 (2008) LX-130-7 (2008) LX-150-2 (2008) LX-160-7 (2008) LX190-7/LX230-7 (2008) Zaxis 190-3 ZAXIS 200-5A (2018) ZAXIS 200LC-5A (2018) ZAXIS 210H-5A (2018) ZAXIS 210K-5A (2018) ZAXIS 210LCH-5A (2018) ZAXIS 210LCK-5A (2018) ZAXIS 330-5G (2017) ZAXIS 350H-5G (2017) ZAXIS 48U-5A (2020) ZAXIS 850-3 ZAXIS 870H-3 ZX-110 (2008) ZX-160W (2008) ZX-200 (2008) ZX-230 (2008) ZX-25 (2008) ZX-270 (2008) ZX-330 (2010) ZX-330-3 (Part № PIHH-I-3) (2008) ZX-330-3 (Part № PIHH-I-5) (2013) ZX-330-3G (2008) ZX-400R-3 (2010) ZX-450 (2006) ZX-600 (2007) Компоненты EX-100-2 (2000) Компоненты EX-100WD (2008) Компоненты EX-120 (2008) Компоненты EX-120-2 (2008) Компоненты EX-160WD (2008) Компоненты EX-200 (2008) Компоненты EX-200-2 (2008) Компоненты EX-200-3(LC, H) Компоненты EX-220 (2008) Компоненты EX-220-2 (2008) Компоненты EX-270 (2008) Компоненты EX-300 (2008) Компоненты EX-300-2 (2000) Компоненты EX-400 Type A (2006) Компоненты EX-400 Type B (2006) Компоненты EX-60 (2003) Компоненты EX-60-2 (2000) Компоненты EX-60-3 (2008) Компоненты ZAXIS 450, 470, 500, 520 (2010) Компоненты ZX-110 (2008) Компоненты ZX-120 (130) (2008) Компоненты ZX-160W (2008) Компоненты ZX-200 (2008) Компоненты ZX-230 (2008) Компоненты ZX-270 (2008) Компоненты ZX-330 (2008) Компоненты ZX-450 (2006)

Схема > Не выбрано FRAME Model:330, H FRAME Model:K BOOM FOOT PIN CENTER JOINT PARTS (UPPERSTRUCTURE) COUNTERWEIGHT Model:330 COUNTERWEIGHT Model:H COUNTERWEIGHT Model:K ENGINE ENGINE SUPPORT OIL FILTER PIPING INTERCOOLER PIPING Serial No.:030001-031281,031520-031526,031530,031533-031534,031538-031548,031550-031593 INTERCOOLER PIPING Serial No.:031282-031519,031527-031529,031531-031532,031535-031537,031549,031594- INTERCOOLER NET RADIATOR Serial No.:030001-031281,031520-031526,031530,031533-031534,031538-031548,031550-031593 RADIATOR Serial No.:031282-031519,031527-031529,031531-031532,031535-031537,031549,031594- RADIATOR SUPPORT Serial No.:030001-031281,031520-031526,031530,031533-031534,031538-031548,031550-031593 RADIATOR SUPPORT Serial No.:031282-031519,031527-031529,031531-031532,031535-031537,031549,031594- RADIATOR COVER Serial No.:030001-031281,031520-031526,031530,031533-031534,031538-031548,031550-031593 RADIATOR COVER Serial No.:031282-031519,031527-031529,031531-031532,031535-031537,031549,031594- RESERVE TANK AIR CLEANER AIR CLEANER SUPPORT AIR CLEANER PARTS PRE-CLEANER PRE-CLEANER PARTS MUFFLER FUEL TANK FUEL TANK SUPPORT FUEL PIPING FUEL FEED PUMP FUEL DOUBLE FILTER PUMP DEVICE PUMP DEVICE SUPPORT SWING DEVICE SWING DEVICE SUPPORT OIL TANK Model: 330, H OIL TANK Model: K SUCTION PIPING DELIVERY PIPING RETURN PIPING (1) Serial No.:030001-031281,031520-031526,031530,031533-031534,031538-031548,031550-031593 RETURN PIPING (1) Serial No.:031282-031519,031527-031529,031531-031532,031535-031537,031549,031594- RETURN PIPING (2) DRAIN PIPING MAIN PIPING (1) MAIN PIPING (2) MAIN PIPING (3) MAIN PIPING (4) BOOM BOTTOM PIPING Model: 330, H BOOM BOTTOM PIPING Model: K SIDE BRANCH PIPING ENGINE CONTROL ENGINE CONTROL MOTOR ENGINE STOP CABLE CONTROL LEVER (FRONT, SWING) CONTROL LEVER (TRAVEL) Model: 330, H CONTROL LEVER (TRAVEL) Model: K LOCK LEVER CONTROL VALVE CONTROL VALVE SUPPORT SOLENOID VALVE PILOT PIPING (1) PILOT PIPING (2) PILOT PIPING (3) PILOT PIPING (4-1) PILOT PIPING (4-2) PILOT PIPING (5-1) PILOT PIPING (5-2) PILOT PIPING (5-3) PILOT PIPING (6) PILOT PIPING (7) PILOT PIPING (8) PILOT PIPING (9) PILOT PIPING (10-1) PILOT PIPING (10-2) PILOT PIPING (11) CONSOLE CONSOLE COVER Model: 330, H CONSOLE COVER Model: K RIGHT COVER RADIO (AM/FM) CONTROL UNIT ELECTRIC PARTS (A) ELECTRIC PARTS (B) ELECTRIC PARTS (C) ELECTRIC PARTS (D) ELECTRIC PARTS (E) ELECTRIC PARTS (F) SWITCH BOX (AUTO.ENGINE CONTROL) SATELLITE DATA COMMUNICATOR PARTS FRONT HEAD LAMP (2 LAMP) REAR HEAD LAMP (1 LAMP) ADD. FUSE BOOM LIGHT HARNESS BOOM LIGHT (R) HORN SWING MOTION ALARM TRAVEL MOTION ALARM AIR-CONDITIONER (1) AIR-CONDITIONER UNIT AIR-CONDITIONER (2) AIR-CONDITIONER (3) AIR-CONDITIONER (4) CONDENSER NET HEATER PIPING DUCT REAR BOX (AIR-CONDITIONER) REAR BOX (WITHOUT HEATER) REAR BOX (12V POWER SUPPLY) 12V POWER UNIT CAB GROUP CAB CAB (WITH GUARD SEAT) CAB Model: K CAB (1) Model: 330, H CAB (1) Model: K CAB (2) Model: 330, H CAB (2) (WITH GUARD SEAT) CAB (2) Model: K CAB (3) CAB (4) CAB (5) CAB (6) CAB (6) Model: K CAB (7) CAB (8) Model: K CAB GUARD CAB GUARD Model: K CAB MIRROR WINDOW WASHER FLOOR PARTS FLOOR PARTS (WITHOUT AIR-CONDITIONER) FLOOR PLATE SEAT (CLOTH) SUSPENSION SEAT (CLOTH) SEAT BELT (SUSPENSION SEAT) SEAT STAND SEAT STAND (SUSPENSION) COVER (1) COVER (2) COVER (3) COVER (4) COVER (5) COVER (6) COVER (7) COVER (8) TROPICAL COVER DOOR LOCK (1) DOOR LOCK (2) WEATHER STRIP ENGINE COVER TOOL BOX COVER UNDER COVER Model: 330 UNDER COVER Model: 330 UNDER COVER Model: H, K UNDER COVER Model: H, K TRACK FRAME TRACK GUARD FULL-LENGTH TRACK GUARD Model: STD FULL-LENGTH TRACK GUARD Model: LC STEP ADDITIONAL STEP TRACK UNDER COVER SWING BEARING SWING BEARING PARTS Model: Mark TRAVEL DEVICE Model: Mark TRAVEL DEVICE SUPPORT Model: Mark FRONT IDLER ADJUSTER UPPER ROLLER LOWER ROLLER Model: STD LOWER ROLLER Model: LC TRACK-LINK Model: STD TRACK-LINK Model: LC CENTER JOINT CENTER JOINT SUPPORT (TRACK) TRAVEL PIPING Model: STD TRAVEL PIPING Model: LC TRAVEL MOTOR COVER STD BOOM Model: 330 H BOOM Model: H K BOOM Model: K STD ARM 3.20m Model: 330 H ARM 2.67m Model: H H ARM 3.20m Model: H K ARM 3.20m Model: K ARM 2.66m ARM 4.00m A LINK A LINK (WELDED) B LINK Model: 330 B LINK Model: H B LINK Model: K FRONT PIPING BOOM CYLINDER (R) BOOM CYLINDER (L) ARM CYLINDER BUCKET CYLINDER LUBRICATE PIPING AUTO. LUBRICATION SYSTEM AUTO. LUBRICATE PIPING (BOOM) AUTO. LUBRICATE PIPING (ARM) BUCKET 1.15m3 (JIS 94) BUCKET 1.4m3 (JIS 94) K BUCKET 1.4m3 (JIS94) Model: K BUCKET 1.4m3 (JIS 94)(SUPER V TOOTH) BUCKET 1.4m3 (JIS 94)(SUPER V TOOTH, FOR TOOTH PLATE) BUCKET 1.4m3 (JIS 94)(SIDE-PIN TOOTH) BUCKET 1.62m3 (JIS 94) BUCKET 1.86m3 (JIS 94) ROCK BUCKET 1.15m3 (JIS 94) ROCK BUCKET 1.38m3 (JIS 94)(SUPER V TOOTH) ROCK BUCKET 1.38m3 (JIS 94)(SIDE-PIN TOOTH) ROCK BUCKET 1.5m3 (JIS 94)(SUPER V TOOTH) ROCK BUCKET 1.5m3 (JIS 94)(SIDE-PIN TOOTH) ROCK BUCKET 1.80m3 (JIS 94)(SUPER V TOOTH) RIPPER BUCKET 0.9m3 (JIS 94) ONE POINT RIPPER CONTROL PADEL (BREAKER, CRUSHER) PILOT PIPING (BREAKER, CRUSHER) MAIN PIPING (BREAKER, CRUSHER) BOOM PIPING (BREAKER, CRUSHER) ARM PIPING (BREAKER, CRUSHER) NPK BREAKER PIPING (BREAKER, CRUSHER) HSB BREAKER PIPING (BREAKER, CRUSHER)(BOOM) NPK COMMON PIPING (BREAKER, CRUSHER) HSB COMMON PIPING (BREAKER, CRUSHER)(BOOM) PILOT PIPING (FLOW RATE SELECTOR) MAIN PIPING (FLOW RATE SELECTOR) ELECTRIC PART (FLOW RATE SELECTOR) HIGH PERFORMANCE FILTER KIT ELECTRIC TYPE CONTROL PARTS (ADD/P) ELECTRIC TYPE CONTROL PARTS (PTO) MAIN PIPING (PTO)(BOOM) PILOT PIPING (PTO/V, FLOW RATE SELECTOR) TOOLS

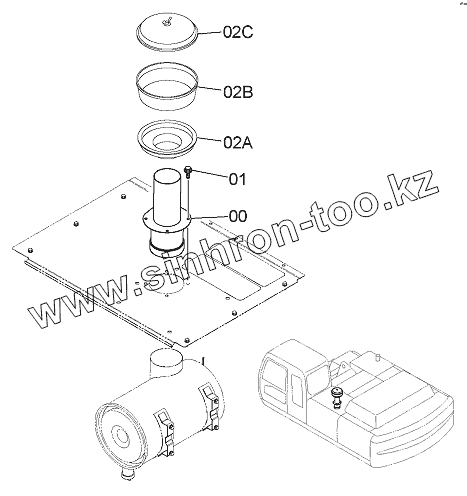

00

01

02A

02B

02C

Позиция на иллюстрации	Заводской номер детали		Название детали
00	8084309		РIРЕ
01	J271030		BOLT, SEMS
01A	J901030		BOLT
01B	J222010		WASHER
02	4090405		CLEANER
02A	4644830		SLEEVE ASS'Y
02B	4142154		BODY
02C	4644831		COVER

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
