OIL TANK Model: 330, H

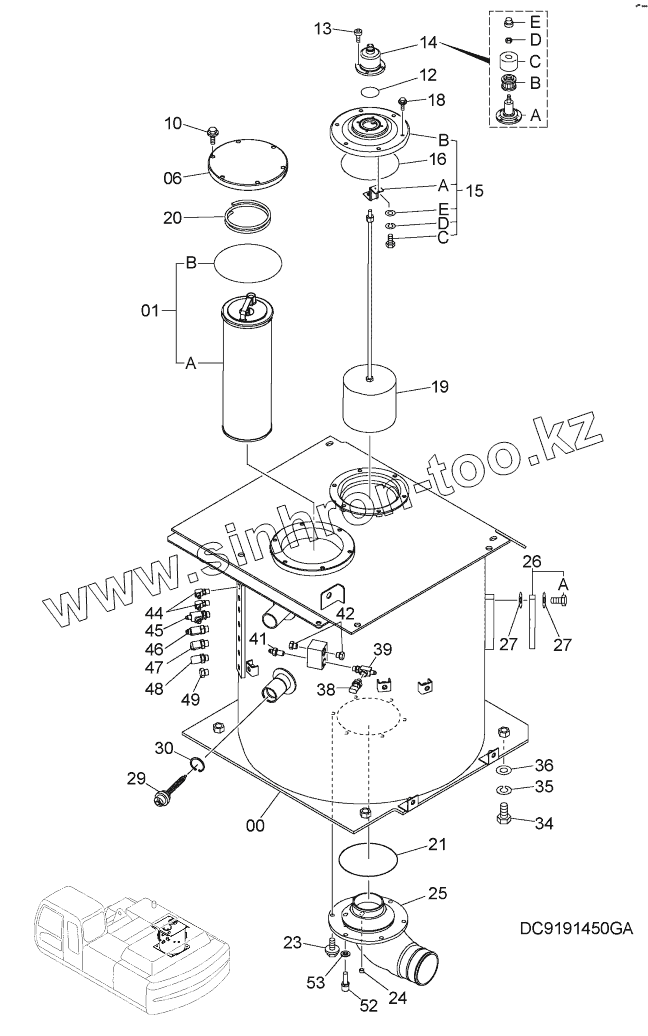

Каталог запасных частей к технике: Hitachi ZX-330-3G. OIL TANK Model: 330, H
zoom-in
zoom-out
enlarge
shrink
circle-right
circle-left
file-text2
info
cart
Тип техники
Не выбрано
Легковые автомобили
Грузовые автомобили и прицепы
Автобусы
Сельхозтехника
Спецтехника
Двигатели
Мототехника
Марка
Не выбрано
Ammann
BOMAG
CARMIX
CASE IH
Changlin
ChengGong
Dimex
Doosan
DYNAPAC
Foton
HAMM
Hidromek
Hitachi
Hyundai
JCB
JLG
John Deere
Komatsu
LIEBHERR
LiuGong
Lonking (LongGong)
Luneng
MANITOU
Mitsuber
New Holland
PENGPU
RM-Terex
SANY
SDLG
SEM
Shantui
Shehwa HBXG
Soosan
TIGARBO
VOGELE
Volvo
WAY
WIRTGEN
XCMG
XGMA
Xiamen
YTO
Yuchai
Zoomlion
Автокран
АЗСМ
Алтайлесмаш
Амкодор
АОМЗ
Атек
АТЗ
Балканкар Рекорд
БелАЗ
Беловеж
Борекс
Брянский Арсенал
Булат
ВЭКС
ГАЗ
Геомаш
Гидромаш
Донекс
Дормаш
Дормашина
Дорэлектромаш
ДЭЗ
ЕлАЗ
ЗЗГТ
Ижнефтемаш
Канаш-электрокар
КЗКТ
ККЗ
Клевер
Клинцовский автокрановый завод
КМЗ
КМЗ 1 Мая
Ковровец
Коммаш
Кранэкс
КЭЗ
КЭМЗ
ЛЗА
МАЗ
МЗИК
МЗКМ
МЗКТ
Михневский РМЗ
МоАЗ
Мозырский МЗ
МТЗ
ОЗП
Онежец
ПАО "ТЗА"
ППС Детва
Промтрактор
ПТЗ
Раскат
СпецАгрегат
ТВЭКС
ТТМ
УВЗ
Угличмаш
УЗТМ
ХТЗ
ЧЗКМ
ЧСДМ
ЧТЗ
ЭКСКО
ЭКСМАШ
ЮрМаш
Модель
Не выбрано
EX-100-2 (2000)
EX-100-3 (2008)
EX-100WD (2008)
EX-120 (2008)
EX-120-2 (2008)
EX-160WD (2008)
EX-200 (2008)
EX-200-2 (2008)
EX-200-3
EX-220 (2008)
EX-220-2 (2008)
EX-270 (2008)
EX-300 (2008)
EX-300-2 (2000)
EX-400 Type A (2006)
EX-400 Type B (2006)
EX-60 (2003)
EX-60-2 (2000)
EX-60-3 (2008)
EX-70 (2017)
LX-110-7 (2008)
LX-130-7 (2008)
LX-150-2 (2008)
LX-160-7 (2008)
LX190-7/LX230-7 (2008)
Zaxis 190-3
ZAXIS 200-5A (2018)
ZAXIS 200LC-5A (2018)
ZAXIS 210H-5A (2018)
ZAXIS 210K-5A (2018)
ZAXIS 210LCH-5A (2018)
ZAXIS 210LCK-5A (2018)
ZAXIS 330-5G (2017)
ZAXIS 350H-5G (2017)
ZAXIS 48U-5A (2020)
ZAXIS 850-3
ZAXIS 870H-3
ZX-110 (2008)
ZX-160W (2008)
ZX-200 (2008)
ZX-230 (2008)
ZX-25 (2008)
ZX-270 (2008)
ZX-330 (2010)
ZX-330-3 (Part № PIHH-I-3) (2008)
ZX-330-3 (Part № PIHH-I-5) (2013)
ZX-330-3G (2008)
ZX-400R-3 (2010)
ZX-450 (2006)
ZX-600 (2007)
Компоненты EX-100-2 (2000)
Компоненты EX-100WD (2008)
Компоненты EX-120 (2008)
Компоненты EX-120-2 (2008)
Компоненты EX-160WD (2008)
Компоненты EX-200 (2008)
Компоненты EX-200-2 (2008)
Компоненты EX-200-3(LC, H)
Компоненты EX-220 (2008)
Компоненты EX-220-2 (2008)
Компоненты EX-270 (2008)
Компоненты EX-300 (2008)
Компоненты EX-300-2 (2000)
Компоненты EX-400 Type A (2006)
Компоненты EX-400 Type B (2006)
Компоненты EX-60 (2003)
Компоненты EX-60-2 (2000)
Компоненты EX-60-3 (2008)
Компоненты ZAXIS 450, 470, 500, 520 (2010)
Компоненты ZX-110 (2008)
Компоненты ZX-120 (130) (2008)
Компоненты ZX-160W (2008)
Компоненты ZX-200 (2008)
Компоненты ZX-230 (2008)
Компоненты ZX-270 (2008)
Компоненты ZX-330 (2008)
Компоненты ZX-450 (2006)
Схема
>
Не выбрано
FRAME Model:330, H
FRAME Model:K
BOOM FOOT PIN
CENTER JOINT PARTS (UPPERSTRUCTURE)
COUNTERWEIGHT Model:330
COUNTERWEIGHT Model:H
COUNTERWEIGHT Model:K
ENGINE
ENGINE SUPPORT
OIL FILTER PIPING
INTERCOOLER PIPING Serial No.:030001-031281,031520-031526,031530,031533-031534,031538-031548,031550-031593
INTERCOOLER PIPING Serial No.:031282-031519,031527-031529,031531-031532,031535-031537,031549,031594-
INTERCOOLER NET
RADIATOR Serial No.:030001-031281,031520-031526,031530,031533-031534,031538-031548,031550-031593
RADIATOR Serial No.:031282-031519,031527-031529,031531-031532,031535-031537,031549,031594-
RADIATOR SUPPORT Serial No.:030001-031281,031520-031526,031530,031533-031534,031538-031548,031550-031593
RADIATOR SUPPORT Serial No.:031282-031519,031527-031529,031531-031532,031535-031537,031549,031594-
RADIATOR COVER Serial No.:030001-031281,031520-031526,031530,031533-031534,031538-031548,031550-031593
RADIATOR COVER Serial No.:031282-031519,031527-031529,031531-031532,031535-031537,031549,031594-
RESERVE TANK
AIR CLEANER
AIR CLEANER SUPPORT
AIR CLEANER PARTS
PRE-CLEANER
PRE-CLEANER PARTS
MUFFLER
FUEL TANK
FUEL TANK SUPPORT
FUEL PIPING
FUEL FEED PUMP
FUEL DOUBLE FILTER
PUMP DEVICE
PUMP DEVICE SUPPORT
SWING DEVICE
SWING DEVICE SUPPORT
OIL TANK Model: 330, H
OIL TANK Model: K
SUCTION PIPING
DELIVERY PIPING
RETURN PIPING (1) Serial No.:030001-031281,031520-031526,031530,031533-031534,031538-031548,031550-031593
RETURN PIPING (1) Serial No.:031282-031519,031527-031529,031531-031532,031535-031537,031549,031594-
RETURN PIPING (2)
DRAIN PIPING
MAIN PIPING (1)
MAIN PIPING (2)
MAIN PIPING (3)
MAIN PIPING (4)
BOOM BOTTOM PIPING Model: 330, H
BOOM BOTTOM PIPING Model: K
SIDE BRANCH PIPING
ENGINE CONTROL
ENGINE CONTROL MOTOR
ENGINE STOP CABLE
CONTROL LEVER (FRONT, SWING)
CONTROL LEVER (TRAVEL) Model: 330, H
CONTROL LEVER (TRAVEL) Model: K
LOCK LEVER
CONTROL VALVE
CONTROL VALVE SUPPORT
SOLENOID VALVE
PILOT PIPING (1)
PILOT PIPING (2)
PILOT PIPING (3)
PILOT PIPING (4-1)
PILOT PIPING (4-2)
PILOT PIPING (5-1)
PILOT PIPING (5-2)
PILOT PIPING (5-3)
PILOT PIPING (6)
PILOT PIPING (7)
PILOT PIPING (8)
PILOT PIPING (9)
PILOT PIPING (10-1)
PILOT PIPING (10-2)
PILOT PIPING (11)
CONSOLE
CONSOLE COVER Model: 330, H
CONSOLE COVER Model: K
RIGHT COVER
RADIO (AM/FM)
CONTROL UNIT
ELECTRIC PARTS (A)
ELECTRIC PARTS (B)
ELECTRIC PARTS (C)
ELECTRIC PARTS (D)
ELECTRIC PARTS (E)
ELECTRIC PARTS (F)
SWITCH BOX (AUTO.ENGINE CONTROL)
SATELLITE DATA COMMUNICATOR PARTS
FRONT HEAD LAMP (2 LAMP)
REAR HEAD LAMP (1 LAMP)
ADD. FUSE
BOOM LIGHT HARNESS
BOOM LIGHT (R)
HORN
SWING MOTION ALARM
TRAVEL MOTION ALARM
AIR-CONDITIONER (1)
AIR-CONDITIONER UNIT
AIR-CONDITIONER (2)
AIR-CONDITIONER (3)
AIR-CONDITIONER (4)
CONDENSER NET
HEATER PIPING
DUCT
REAR BOX (AIR-CONDITIONER)
REAR BOX (WITHOUT HEATER)
REAR BOX (12V POWER SUPPLY)
12V POWER UNIT
CAB GROUP
CAB
CAB (WITH GUARD SEAT)
CAB Model: K
CAB (1) Model: 330, H
CAB (1) Model: K
CAB (2) Model: 330, H
CAB (2) (WITH GUARD SEAT)
CAB (2) Model: K
CAB (3)
CAB (4)
CAB (5)
CAB (6)
CAB (6) Model: K
CAB (7)
CAB (8) Model: K
CAB GUARD
CAB GUARD Model: K
CAB MIRROR
WINDOW WASHER
FLOOR PARTS
FLOOR PARTS (WITHOUT AIR-CONDITIONER)
FLOOR PLATE
SEAT (CLOTH)
SUSPENSION SEAT (CLOTH)
SEAT BELT (SUSPENSION SEAT)
SEAT STAND
SEAT STAND (SUSPENSION)
COVER (1)
COVER (2)
COVER (3)
COVER (4)
COVER (5)
COVER (6)
COVER (7)
COVER (8)
TROPICAL COVER
DOOR LOCK (1)
DOOR LOCK (2)
WEATHER STRIP
ENGINE COVER
TOOL BOX COVER
UNDER COVER Model: 330
UNDER COVER Model: 330
UNDER COVER Model: H, K
UNDER COVER Model: H, K
TRACK FRAME
TRACK GUARD
FULL-LENGTH TRACK GUARD Model: STD
FULL-LENGTH TRACK GUARD Model: LC
STEP
ADDITIONAL STEP
TRACK UNDER COVER
SWING BEARING
SWING BEARING PARTS Model: Mark
TRAVEL DEVICE Model: Mark
TRAVEL DEVICE SUPPORT Model: Mark
FRONT IDLER
ADJUSTER
UPPER ROLLER
LOWER ROLLER Model: STD
LOWER ROLLER Model: LC
TRACK-LINK Model: STD
TRACK-LINK Model: LC
CENTER JOINT
CENTER JOINT SUPPORT (TRACK)
TRAVEL PIPING Model: STD
TRAVEL PIPING Model: LC
TRAVEL MOTOR COVER
STD BOOM Model: 330
H BOOM Model: H
K BOOM Model: K
STD ARM 3.20m Model: 330
H ARM 2.67m Model: H
H ARM 3.20m Model: H
K ARM 3.20m Model: K
ARM 2.66m
ARM 4.00m
A LINK
A LINK (WELDED)
B LINK Model: 330
B LINK Model: H
B LINK Model: K
FRONT PIPING
BOOM CYLINDER (R)
BOOM CYLINDER (L)
ARM CYLINDER
BUCKET CYLINDER
LUBRICATE PIPING
AUTO. LUBRICATION SYSTEM
AUTO. LUBRICATE PIPING (BOOM)
AUTO. LUBRICATE PIPING (ARM)
BUCKET 1.15m3 (JIS 94)
BUCKET 1.4m3 (JIS 94)
K BUCKET 1.4m3 (JIS94) Model: K
BUCKET 1.4m3 (JIS 94)(SUPER V TOOTH)
BUCKET 1.4m3 (JIS 94)(SUPER V TOOTH, FOR TOOTH PLATE)
BUCKET 1.4m3 (JIS 94)(SIDE-PIN TOOTH)
BUCKET 1.62m3 (JIS 94)
BUCKET 1.86m3 (JIS 94)
ROCK BUCKET 1.15m3 (JIS 94)
ROCK BUCKET 1.38m3 (JIS 94)(SUPER V TOOTH)
ROCK BUCKET 1.38m3 (JIS 94)(SIDE-PIN TOOTH)
ROCK BUCKET 1.5m3 (JIS 94)(SUPER V TOOTH)
ROCK BUCKET 1.5m3 (JIS 94)(SIDE-PIN TOOTH)
ROCK BUCKET 1.80m3 (JIS 94)(SUPER V TOOTH)
RIPPER BUCKET 0.9m3 (JIS 94)
ONE POINT RIPPER
CONTROL PADEL (BREAKER, CRUSHER)
PILOT PIPING (BREAKER, CRUSHER)
MAIN PIPING (BREAKER, CRUSHER)
BOOM PIPING (BREAKER, CRUSHER)
ARM PIPING (BREAKER, CRUSHER)
NPK BREAKER PIPING (BREAKER, CRUSHER)
HSB BREAKER PIPING (BREAKER, CRUSHER)(BOOM)
NPK COMMON PIPING (BREAKER, CRUSHER)
HSB COMMON PIPING (BREAKER, CRUSHER)(BOOM)
PILOT PIPING (FLOW RATE SELECTOR)
MAIN PIPING (FLOW RATE SELECTOR)
ELECTRIC PART (FLOW RATE SELECTOR)
HIGH PERFORMANCE FILTER KIT
ELECTRIC TYPE CONTROL PARTS (ADD/P)
ELECTRIC TYPE CONTROL PARTS (PTO)
MAIN PIPING (PTO)(BOOM)
PILOT PIPING (PTO/V, FLOW RATE SELECTOR)
TOOLS
00
01
01A
01B
06
10
12
13
14
14A
14B
14C
14D
14E
15
15A
15B
15C
15D
15E
16
18
19
20
21
23
23A
23B
24
25
26
26A
27
27
29
30
34
35
36
38
39
41
42
44
45
46
47
48
49
52
53
Позиция на иллюстрации
Заводской номер детали
Название детали
00
5007082
ТАNК, ОIL
01
4448402
ELEMENT
01A
4443773
ELEMENT
01B
A810190
O-RING
06
4440802
COVER
10
J271035
BOLT, SEMS
10A
J901035
BOLT
10B
J222010
WASHER
12
A810060
O-RING
13
J780616
BOLT, SOCKET
14
4434017
BREATHER, AIR
14A
4437833
BODY
14B
4437838
ELEMENT
14C
4437837
COVER
14D
4371825
NUT
14E
4437836
CAP
15
9184556
COVER
15A
4408661
BRACKET
15B
1025093
COVER
15C
4350623
BOLT
15D
4225466
WASHER, SPRING
15E
4225472
WASHER, PLANE
16
A810160
O-RING
18
J271025
BOLT, SEMS
18A
J901025
BOLT
18B
J222010
WASHER
19
4385915
FILТЕR, SUСТIОN
20
4472673
SPRING
21
A810160
O-RING
23
J271030
BOLT, SEMS
23A
J901030
BOLT
23B
J222010
WASHER
24
94-2011
PLUG
25
2045864
РIРЕ, SUСТIОN
26
8053499
GAUGE, LEVEL
26A
4100967
BOLT
27
449558
WASHER, SEAL
29
4387143
VАLVЕ
30
991718
RING, RETAINING
34
J921850
BOLT
35
J257218
WASHER, SPRING
36
J222018
WASHER
38
4436535
SENSOR, PRES.
38A
957366
O-RING
39
4364784
TEE
39A
957366
O-RING
41
4255792
АDАРТЕRS
41A
957366
O-RING
42
A885002
PLUG
42A
957366
O-RING
44
A852322
ELBOW S
44A
957366
O-RING
45
4239713
TEE
45A
4509180
O-RING
46
A852433
TEE, S
46A
4509180
O-RING
47
A852334
ELBOW, S
47A
4509180
O-RING
48
A852332
ELBOW, S
48A
4509180
O-RING
49
A885003
PLUG
49A
4509180
O-RING
52
4250260
SENSOR
53
4250261
GASKET
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
Дополнительная информация
×
Название:
Номер:
Примечание:
