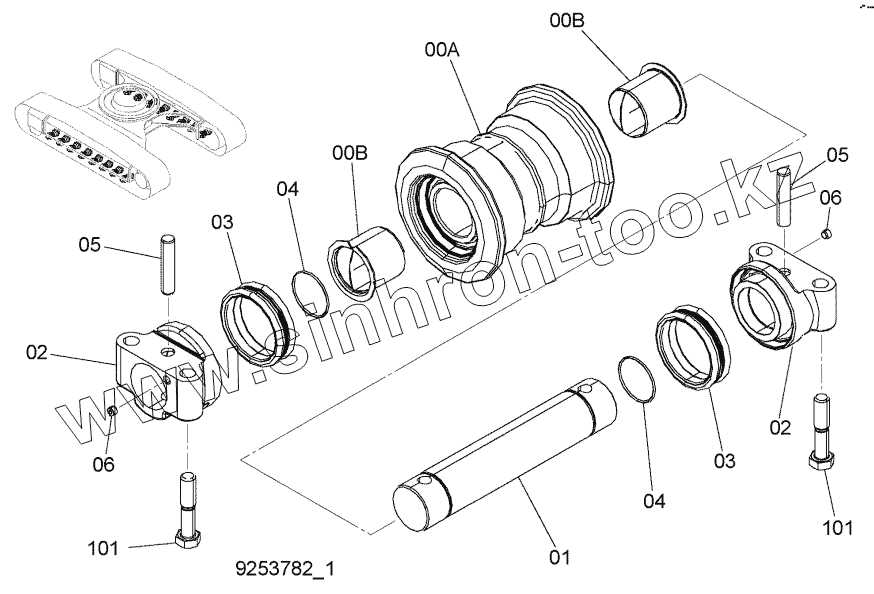

9253782
00
00A
00B
00B
01
02
02
03
03
04
04
05
05
06
06
101
101
Позиция на иллюстрации
Заводской номер детали
Название детали
9253782
9253782
ROLLER, LOWER ASSY
00
9249808
ROLLER ASSY
00A
7048312
ROLLER
00B
3081250
ВUSНING
01
3025060
АХLЕ
02
2053081
COLLAR
03
4317587
SЕАL, GRОUР
04
А810070
O-RING
05
4137684
РIN
06
4315607
PLUG
101
4648103
BOLT
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
