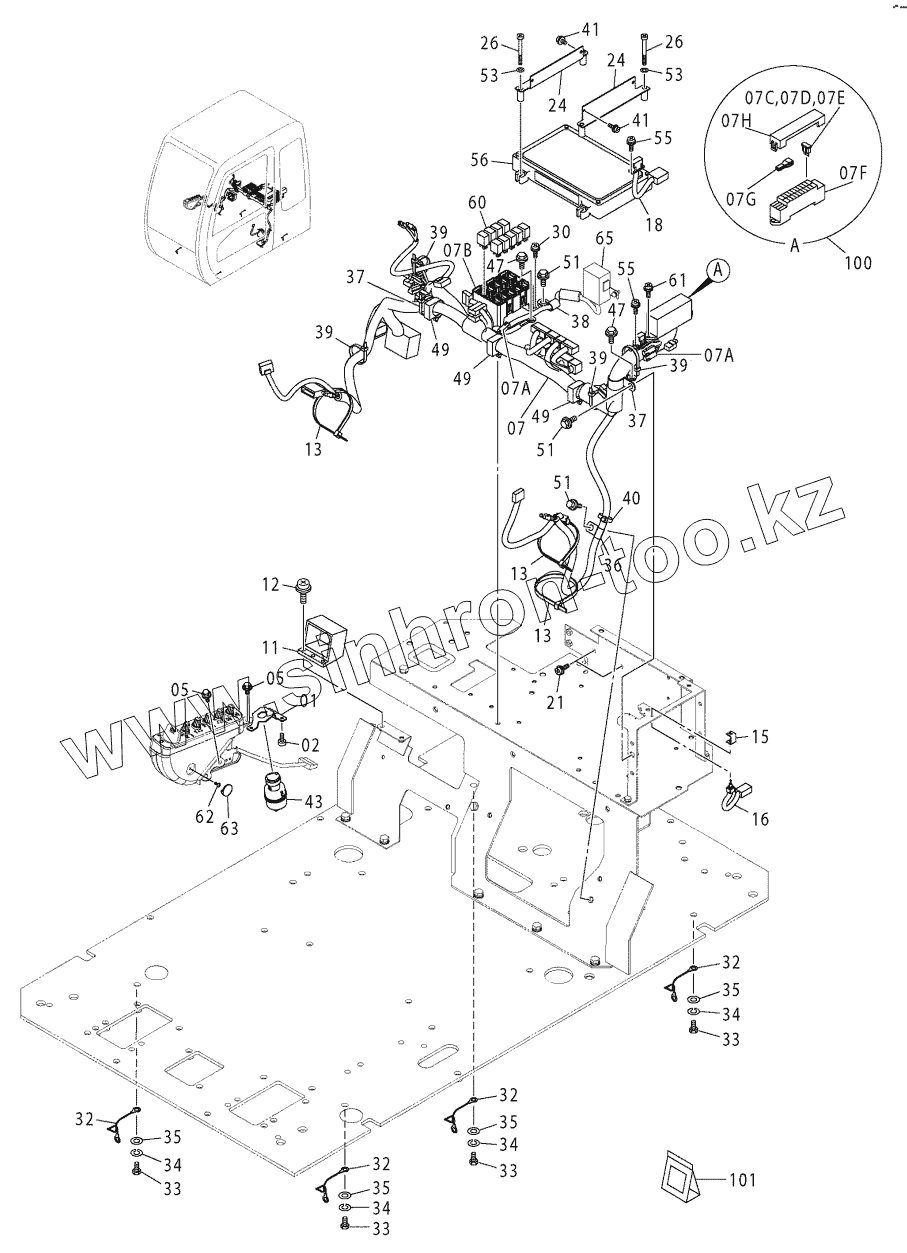

Каталог запасных частей к технике: Hitachi ZX-330-3G. ELECTRIC PARTS (E)
01
02
05
05
07
07A
07A
07B
07C
07D
07E
07F
07G
07H
11
12
13
13
13
15
16
18
21
24
24
26
26
30
32
32
32
32
33
33
33
33
34
34
34
34
35
35
35
35
36
37
37
38
39
39
39
39
40
41
41
43
47
47
49
49
49
51
51
51
53
53
55
55
56
60
61
62
63
65
100
101
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 01 | 3087882 | BRACKET | |
| 02 | 4361800 | SCREW, TAPPING | |
| 05 | J260814 | BOLT, SEMS | |
| 05A | J900814 | BOLT | |
| 05B | А590108 | WASHER, PLANE | |
| 07 | 0004307 | НАRNЕSS, WIRЕ | |
| 07A | 4456778 | DIODE | |
| 07B | 4427429 | BOX, RELAY | |
| 07C | 4428910 | FUSE | |
| 07D | 4428911 | FUSE | |
| 07E | 4436736 | FUSE | |
| 07F | 4456735 | BOX, FUSE | |
| 07G | 4436737 | PULLER | |
| 07H | 4443490 | COVER | |
| 11 | 4431090 | CONNECTOR | |
| 12 | J460620 | SCREW, SEMS | |
| 13 | 4323613 | CLIP, BAND | |
| 15 | 4367375 | BRACKET | |
| 16 | 4617012 | SWITCH | |
| 18 | 4439897 | HARNESS, WIRE | |
| 21 | J460616 | SCREW, SEMS | |
| 24 | 8082329 | BRACKET | |
| 26 | M430660 | SCREW | |
| 30 | J460620 | SCREW, SEMS | |
| 32 | 4281293 | HARNESS, WIRE | |
| 33 | J901016 | BOLT | |
| 34 | A590910 | WASHER, SPRING | |
| 35 | A590110 | WASHER, PLANE | |
| 36 | 4190261 | CLIP | |
| 37 | 4192035 | CLIP | |
| 38 | 4190253 | CLIP | |
| 39 | 4055312 | CLIP, BAND | |
| 40 | 4055311 | CLIP, BAND | |
| 41 | J460510 | SCREW, SEMS | |
| 43 | SWITCH | WORKING LAMP SWITCH | |
| 47 | J260816 | BOLT, SEMS | |
| 47A | J900816 | BOLT | |
| 47B | А590108 | WASHER, PLANE | |
| 49 | 4449019 | CLIP | |
| 51 | J271020 | BOLT, SEMS | |
| 51A | J901020 | BOLT | |
| 51B | J222010 | WASHER | |
| 53 | А590106 | WASHER, PLANE | |
| 55 | J460310 | SCREW, SEMS | |
| 56 | 9318851 | CONTROLLER | |
| 60 | 4436534 | RELAY | |
| 61 | J460620 | SCREW, SEMS | |
| 62 | 4381572 | SCREW | |
| 63 | 4426354 | CAP | |
| 65 | 4452160 | CONTROLLER | |
| 100 | 4460037 | BOX FUSE | |
| 101 | 4369817 | KIT |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
