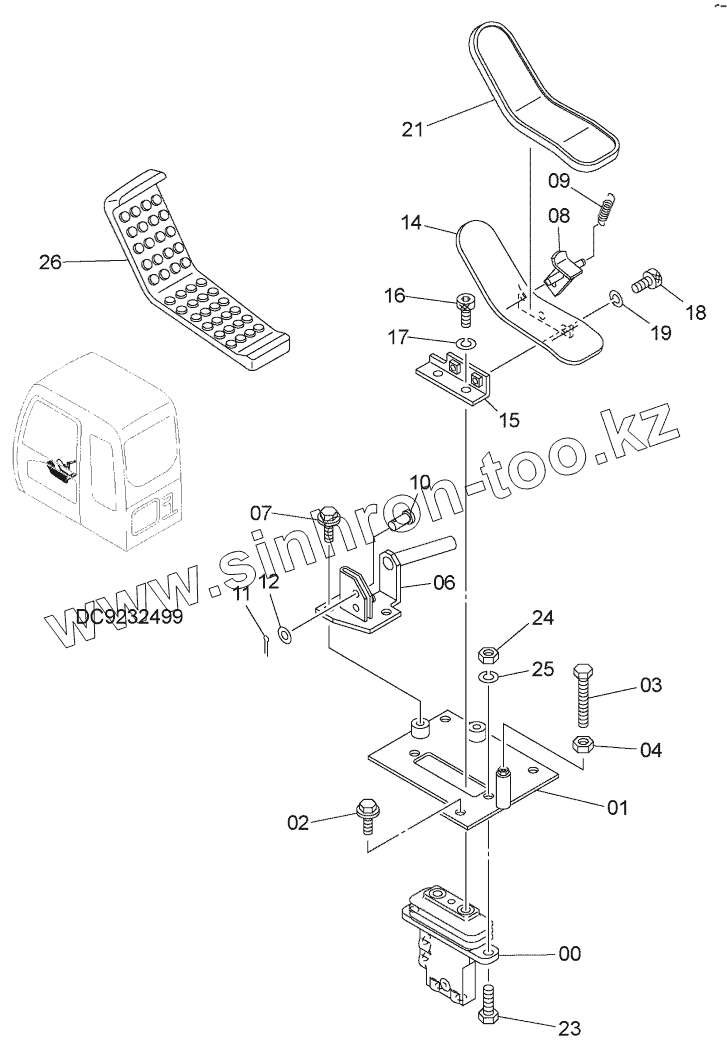

CONTROL PADEL (BREAKER, CRUSHER)
PILOT PIPING (BREAKER, CRUSHER)
MAIN PIPING (BREAKER, CRUSHER)
BOOM PIPING (BREAKER, CRUSHER)
ARM PIPING (BREAKER, CRUSHER)
NPK BREAKER PIPING (BREAKER, CRUSHER)
HSB BREAKER PIPING (BREAKER, CRUSHER)(BOOM)
NPK COMMON PIPING (BREAKER, CRUSHER)
HSB COMMON PIPING (BREAKER, CRUSHER)(BOOM)
PILOT PIPING (FLOW RATE SELECTOR)
MAIN PIPING (FLOW RATE SELECTOR)
ELECTRIC PART (FLOW RATE SELECTOR)
HIGH PERFORMANCE FILTER KIT
ELECTRIC TYPE CONTROL PARTS (ADD/P)
ELECTRIC TYPE CONTROL PARTS (PTO)
MAIN PIPING (PTO)(BOOM)
PILOT PIPING (PTO/V, FLOW RATE SELECTOR)
TOOLS
00
01
02
02A
02B
03
04
06
07
07A
07B
08
09
10
11
12
14
15
16
17
18
19
21
23
24
25
26
Позиция на иллюстрации
Заводской номер детали
Название детали
00
9219244
VALVE, РILOT
01
8091711
BRACKET
02
J271030
BOLT, SEMS
02A
J901030
BOLT
02B
J222010
WASHER
03
4317640
BOLT
04
M500807
NUT
06
8091712
BRACKET
07
J271020
BOLT, SEMS
07A
J901020
BOLT
07B
J222010
WASHER
08
8084658
STOPPER
09
4279604
SPRING
10
4287795
PIN
11
A763016
PIN
12
A590110
WASHER, PLANE
14
8090110
PEDAL
15
9759812
BRACKET
16
J780816
BOLT, SOCKET
17
A590908
WASHER, SPRING
18
J780820
BOLT, SOCKET
19
A590908
WASHER, SPRING
21
4283758
COVER
23
J901030
BOLT
24
J950010
NUT
25
A590910
WASHER, SPRING
26
3079714
PEDAL
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
