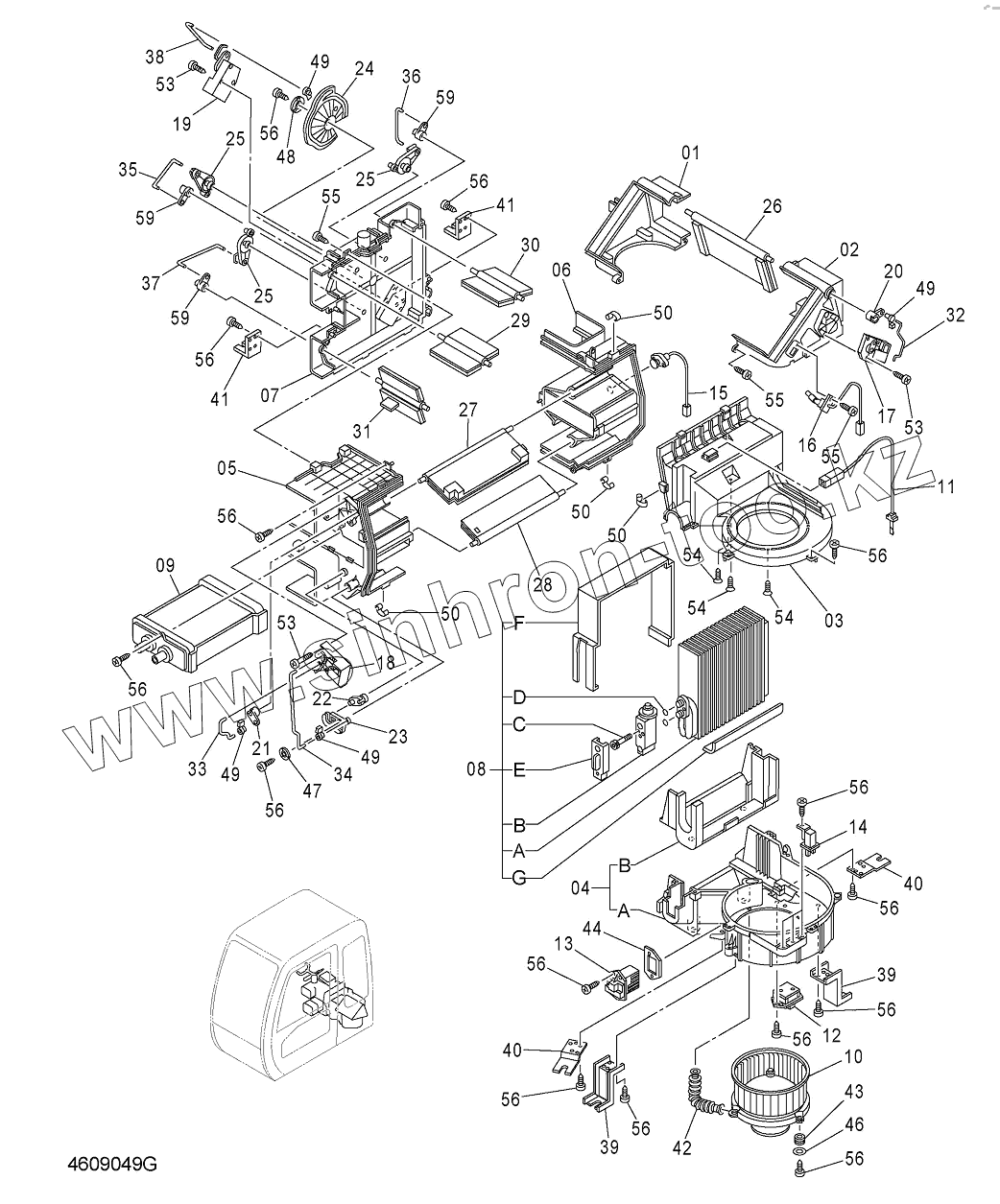

Каталог запасных частей к технике: Hitachi ZX-330-3G. AIR-CONDITIONER UNIT
4609049
01
02
03
04
04A
04B
05
06
07
08
08A
08B
08C
08D
08E
08F
08G
09
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
25
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
39
40
40
41
41
42
43
44
46
47
48
49
49
49
49
50
50
50
50
53
53
53
54
54
54
55
55
55
56
56
56
56
56
56
56
56
56
56
56
56
56
56
56
59
59
59
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 4609049 | 4609049 | UNIT | |
| 01 | 4464341 | CASE | |
| 02 | 4464342 | CASE | |
| 03 | 4464343 | CASE | |
| 04 | 4464344 | CASE ASSY | |
| 04A | 4464345 | CASE | |
| 04B | 4464346 | LINING | |
| 05 | 4464347 | CASE | |
| 06 | 4464349 | CASE | |
| 07 | 4464350 | CASE | |
| 08 | 4464352 | EVAPORATOR ASSY | |
| 08A | 4464353 | EVAPORATOR | |
| 08B | 4464354 | VALVE | |
| 08C | 4464355 | BOLT | |
| 08D | 4370249 | O-RING | |
| 08E | 4464356 | CAP | |
| 08F | 4464357 | LINING | |
| 08G | 4464274 | LINING | |
| 09 | 4464275 | HEATER, CORE | |
| 10 | 4370266 | BLOWER | |
| 11 | 4464277 | THERMOSTAT | |
| 12 | 4464278 | RESISTOR | |
| 13 | 4464279 | TRANSISTOR | |
| 14 | 4370269 | RELAY | |
| 15 | 4464280 | SENSOR | |
| 16 | 4448925 | SENSOR | |
| 17 | 4464281 | MOTOR | |
| 18 | 4464282 | MOTOR | |
| 19 | 4464283 | MOTOR | |
| 20 | 4464284 | LEVER | |
| 21 | 4464285 | LEVER | |
| 22 | 4464286 | LEVER | |
| 23 | 4464287 | LEVER | |
| 24 | 4464288 | LEVER | |
| 25 | 4464450 | LEVER | |
| 26 | 4464451 | DOOR | |
| 27 | 4464452 | DOOR | |
| 28 | 4464453 | DOOR | |
| 29 | 4658956 | DOOR | |
| 30 | 4658956 | DOOR | |
| 31 | 4658957 | DOOR | |
| 32 | 4464457 | ROD | |
| 33 | 4464458 | ROD | |
| 34 | 4464459 | ROD | |
| 35 | 4658958 | ROD | |
| 36 | 4658959 | ROD | |
| 37 | 4658960 | ROD | |
| 38 | 4464463 | ROD | |
| 39 | 4370296 | BRACKET | |
| 40 | 4464465 | BRACKET | |
| 41 | 4464466 | BRACKET | |
| 42 | 4464473 | H0SE, AIR | |
| 43 | 4370267 | ISOLATOR | |
| 44 | 4464474 | SEAL | |
| 46 | 4370299 | WASHER | |
| 47 | 4464476 | WASHER | |
| 48 | 4370298 | WASHER | |
| 49 | 4464477 | CLIP | |
| 50 | 4464478 | CLIP | |
| 53 | 4370308 | SCREW, TAPPING | |
| 54 | 4464480 | SCREW, TAPPING | |
| 55 | 4370309 | SCREW, TAPPING | |
| 56 | 4464483 | SCREW, TAPPING | |
| 59 | 4658955 | LEVER |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
