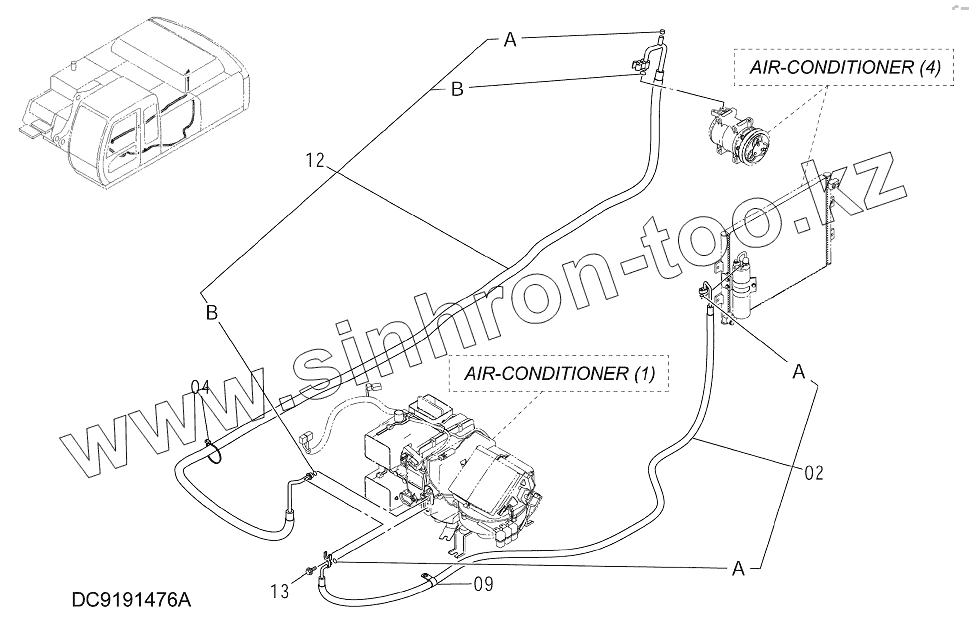

02
02A
02A
04
09
12
12A
12B
12B
13
13A
13B
Позиция на иллюстрации
Заводской номер детали
Название детали
02
4448285
HOSE
02A
4422000
O-RING
04
4055312
CLIP, BAND
09
4190277
CLIP
12
4440206
НОSЕ
12A
4370251
CAP
12B
4421939
O-RING
13
J260620
BOLT, SEMS
13A
J900620
BOLT
13B
А590106
WASHER, PLANE
