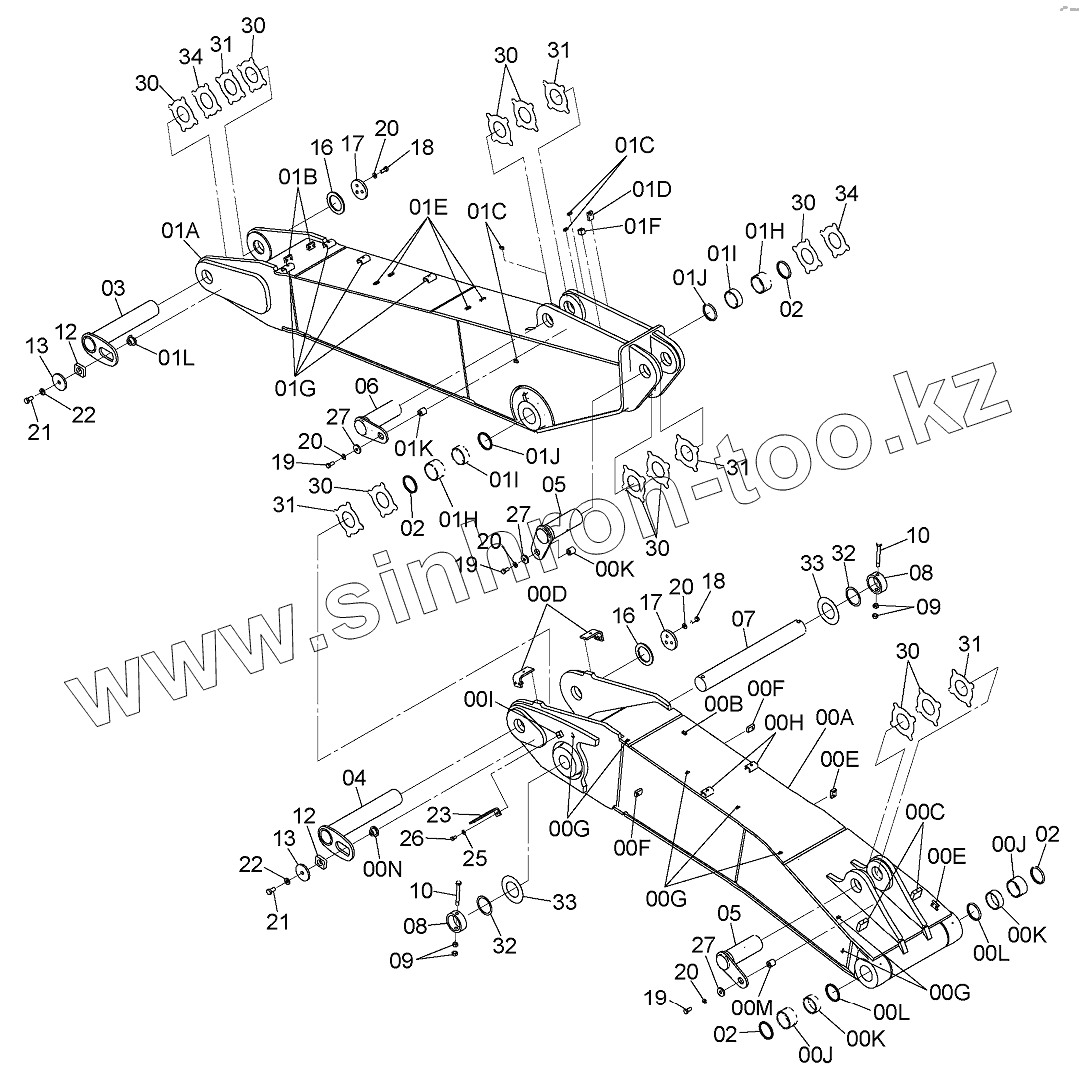

Каталог запасных частей к технике: Hitachi ZX-330-3 (Part № PIHH-I-3). 2P-BOOM
7048581
00A
00B
00C
00D
00E
00E
00F
00F
00G
00G
00G
00H
00I
00J
00J
00K
00K
00K
00L
00L
00M
00N
7048580
01A
01B
01C
01C
01D
01E
01F
01G
01H
01H
01I
01I
01J
01J
01K
01L
02
02
02
02
03
04
05
05
06
07
08
08
09
09
10
10
12
12
13
13
16
16
17
17
18
18
19
19
19
20
20
20
20
20
21
21
22
22
23
25
26
27
27
27
30
30
30
30
30
30
30
31
31
31
31
31
32
32
33
33
34
34
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 7048581 | 7048581 | BOOM, FIRST | |
| 00A | 5010165 | BOOM, FIRST | |
| 00B | 455156 | SЕАТ, SСRЕW | |
| 00C | 4334594 | SEAT,SCREW | |
| 00D | 9763823 | BRACKET | |
| 00E | 4218354 | BLOCK | |
| 00F | 4218353 | BLOCK | |
| 00G | 4272256 | CLIP, WD. | |
| 00H | 9765301 | SEAT SCREW | |
| 00I | 4644727 | SEAT SCREW | |
| 00J | 4443884 | BUSHING | |
| 00K | 4381855 | BUSHING | |
| 00L | 4085479 | SEAL, DUST | |
| 00M | 4438594 | SEAT SCREW | |
| 00N | 4611731 | STOPPER | |
| 7048580 | 7048580 | BOOM, SECOND | |
| 01A | 5010166 | BOOM, SECOND | |
| 01B | 4218354 | BLOCK | |
| 01C | 455156 | SЕАТ, SСRЕW | |
| 01D | 4218353 | BLOCK | |
| 01E | 4401814 | SЕАТ, SСRЕW | |
| 01F | 4261442 | BLOCK | |
| 01G | 9765301 | SEAT SCREW | |
| 01H | 4443884 | BUSHING | |
| 01I | 4381855 | BUSHING | |
| 01J | 4085479 | SEAL, DUST | |
| 01K | 4438594 | SEAT SCREW | |
| 01L | 4611731 | STOPPER | |
| 02 | 4085479 | SEAL, DUST | |
| 03 | 8092014 | PIN | |
| 04 | 8093625 | РIN | |
| 05 | 8093626 | РIN | |
| 06 | 8096435 | PIN | |
| 07 | 3079491 | PIN | |
| 08 | 4205110 | STOPPER | |
| 09 | J950020 | NUT | |
| 10 | 4435584 | PIN, STOPPER | |
| 12 | 4611688 | BLOCK | |
| 13 | 4611733 | PLATE | |
| 16 | 4611648 | SPACER | |
| 17 | 4611642 | STOPPER | |
| 18 | J921850 | BOLT | |
| 19 | J921840 | BOLT | |
| 20 | J222018 | WASHER | |
| 21 | J922245 | BOLT | |
| 22 | J222022 | WASHER | |
| 23 | 4602796 | BRACKET | |
| 25 | J222014 | WASHER | |
| 26 | J901430 | BOLT | |
| 27 | 4441471 | PLATE | |
| 30 | 4445635 | PLATE THRUST 1.0mm | |
| 31 | 4445636 | PLATE THRUST 2.0mm | |
| 32 | 4445637 | PLATE THRUST 1.0mm | |
| 33 | 4450015 | PLATE THRUST 1.0mm | |
| 34 | 4460373 | PLATE THRUST 1.5mm |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
