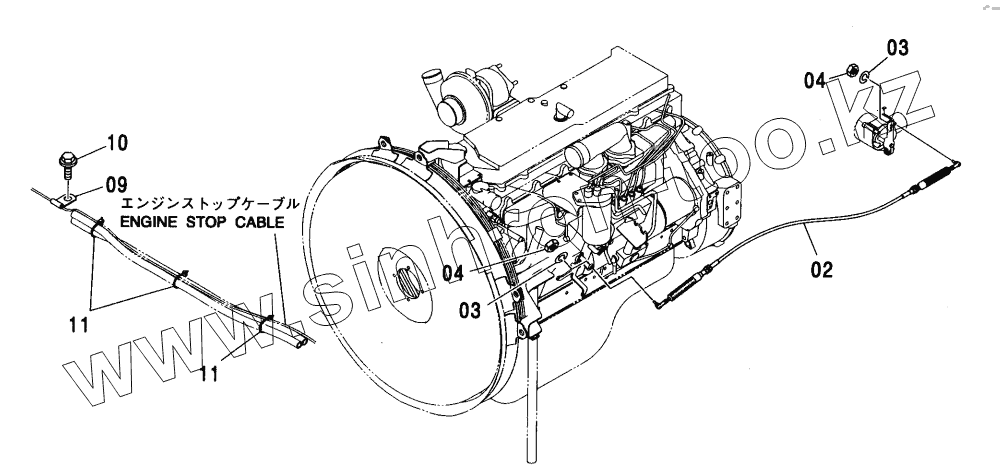

Каталог запасных частей к технике: Hitachi ZX-330. ENGINE CONTROL

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано EX-100-2 (2000) EX-100-3 (2008) EX-100WD (2008) EX-120 (2008) EX-120-2 (2008) EX-160WD (2008) EX-200 (2008) EX-200-2 (2008) EX-200-3 EX-220 (2008) EX-220-2 (2008) EX-270 (2008) EX-300 (2008) EX-300-2 (2000) EX-400 Type A (2006) EX-400 Type B (2006) EX-60 (2003) EX-60-2 (2000) EX-60-3 (2008) EX-70 (2017) LX-110-7 (2008) LX-130-7 (2008) LX-150-2 (2008) LX-160-7 (2008) LX190-7/LX230-7 (2008) Zaxis 190-3 ZAXIS 200-5A (2018) ZAXIS 200LC-5A (2018) ZAXIS 210H-5A (2018) ZAXIS 210K-5A (2018) ZAXIS 210LCH-5A (2018) ZAXIS 210LCK-5A (2018) ZAXIS 330-5G (2017) ZAXIS 350H-5G (2017) ZAXIS 48U-5A (2020) ZAXIS 850-3 ZAXIS 870H-3 ZX-110 (2008) ZX-160W (2008) ZX-200 (2008) ZX-230 (2008) ZX-25 (2008) ZX-270 (2008) ZX-330 (2010) ZX-330-3 (Part № PIHH-I-3) (2008) ZX-330-3 (Part № PIHH-I-5) (2013) ZX-330-3G (2008) ZX-400R-3 (2010) ZX-450 (2006) ZX-600 (2007) Компоненты EX-100-2 (2000) Компоненты EX-100WD (2008) Компоненты EX-120 (2008) Компоненты EX-120-2 (2008) Компоненты EX-160WD (2008) Компоненты EX-200 (2008) Компоненты EX-200-2 (2008) Компоненты EX-200-3(LC, H) Компоненты EX-220 (2008) Компоненты EX-220-2 (2008) Компоненты EX-270 (2008) Компоненты EX-300 (2008) Компоненты EX-300-2 (2000) Компоненты EX-400 Type A (2006) Компоненты EX-400 Type B (2006) Компоненты EX-60 (2003) Компоненты EX-60-2 (2000) Компоненты EX-60-3 (2008) Компоненты ZAXIS 450, 470, 500, 520 (2010) Компоненты ZX-110 (2008) Компоненты ZX-120 (130) (2008) Компоненты ZX-160W (2008) Компоненты ZX-200 (2008) Компоненты ZX-230 (2008) Компоненты ZX-270 (2008) Компоненты ZX-330 (2008) Компоненты ZX-450 (2006)

Схема > Не выбрано FRAME <330, 370.H.MTH> FRAME <350, MTH(EU3,EU4)> FRAME <K> BOOM FOOT PIN CENTER JOINT PARTS (UPPERSTRUCTURE) COUNTERWEIGHT <330> COUNTERWEIGHT <350,MTH(EU3,EU4)> COUNTERWEIHGT 8. 2T <350> COUNTERWEIGHT <370,H, MTH> COUNTERWEIGHT <K> ENGINE ENGINE SUPPORT OIL FILTER PIPING INTER COOLER PIPING INTER COOLER NET RADIATOR RADIATOR SUPPORT RADIATOR COVER RESERVE TANK AIR CLEANER AIR CLEANER SUPPORT AIR CLEANER PARTS PRE CLEANER PRE CLEANER PARTS MUFFLER FUEL TANK FUEL TANK SUPPORT FUEL PIPING FUEL FEED PUMP FUEL DOUBLE FILTER FUEL DOUBLE FILTER <350,MTH(EU3,EU4)> PUMP DEVICE PUMP DEVICE SUPPORT SWING DEVICE SWING DEVICE SUPPORT OIL TANK OIL TANK <K> SUCTION PIPING DELIVERY PIPING RETURN PIPING (1) RETURN PIPING (2) DRAIN PIPING DRAIN PIPING <350,MTH(EU3,EU4)> MAIN PIPING (1) MAIN PIPING (2) MAIN PIPING (2) <350,MTH(EU3,EU4)> MAIN PIPING (3) MAIN PIPING (4) MAIN PIPING (4) <350,MTH(EU3,EU4)> BOOM BOTTOM PIPING BOOM BOTTOM PIPING <K> SIDE BRANCH PIPING ENGINE CONTROL ENGINE CONTROL MOTOR ENGINE STOP CABLE CONTROL LEVER (FRONT, SWING) CONTROL LEVER (TRAVEL) CONTROL LEVER (TRAVEL) <K> LOCK LEVER CONTROL VALVE CONTROL VALVE SUPPORT SOLENOID VALVE PILOT PIPING (1) PILOT PIPING (2) PILOT PIPING (2) <350,MTH(EU3,EU4)> PILOT PIPING (3) PILOT PIPING (4-1) PILOT PIPING (4-1) <350,MTH(EU3,EU4)> PILOT PIPING (4-2) PILOT PIPING (4-2) <350,MTH(EU3,EU4)> PILOT PIPING (5-1) PILOT PIPING (5-2) PILOT PIPING (5-3) PILOT PIPING (6) PILOT PIPING (7) PILOT PIPING (8) PILOT PIPING (9) PILOT PIPING (10-1) PILOT PIPING (10-1) <350, MTH(EU3, EU4) > PILOT PIPING (10-2) PILOT PIPING (10-2) <350,MTH(EU3,EU4)> PILOT PIPING (11) CONSOLE CONSOLE COVER CONSOLE COVER <K> RIGHT COVER RIGHT COVER (NA) <350, MTH(EU3, EU4)> RADIO (AM/FM) RADIO LESS PARTS CONTROL UNIT ELECTRIC PARTS A ELECTRIC PARTS B ELECTRIC PARTS C ELECTRIC PARTS D ELECTRIC PARTS E ELECTRIC PARTS F <K> SWITCH BOX (AUTO. ENGINE CONTROL) SATELLITE DATA COMMUNICATOR PARTS FRONT HEAD LAMP (2 LAMP) FRONT HEAD LAMP (2 LAMP) <MTH> FRONT HEAD LAMP (4 LAMP) <350> FRONT HEAD LAMP (2 LAMP WITH SUNSHADE) <350> FRONT HEAD LAMP (4 LAMP WITH SUNSHADE) <350> REAR HEAD LAMP (1 LAMP) REAR HEAD LAMP (1 LAMP) <350, MTH(EU3, EU4)> REAR HEAD LAMP (2 LAMP) <350, MTH(EU3, EU4)> ROTATING BEACON <350,<(EU3, EU4)> FUSE <350,MTH(EU3,EU4)> BOOM LIGHT HARNESS BOOM LIGHT (R) BOOM LIGHT (R) (MONO BOOM) (WITH LIGHT COVER) <350,MTH(EU3, EU4)> BOOM LIGHT (R) (2P-B00M) (WITH LIGHT COVER) <350, MTH(EU3, EU4)> HORN SWING MOTION ALARM TRAVEL MOTION ALARM AIR CONDITIONER (1) AIR CONDITIONER (2) AIR CONDITIONER (3) AIR CONDITIONER (4) AIR-CON. UNIT CONDENSER NET HEATER PIPING CAR HEATER HEATER UNIT DUCT REAR BOX (AIR-CON.) REAR BOX (HEATER) REAR BOX (HEATER LESS) REAR BOX (12V POWER SUPPLY) 12V POWER UNIT CAB GROUP CAB GROUP <MTH> CAB <330, H> CAB (NA) CAB <350> CAB (WITH GUARD SEAT) <350> CAB (WITH VANDAL HOOK) <350> CAB <MTH(EU3,EU4)> CAB <K> CAB <MTH> CAB 1 CAB 2 <K> CAB 2 <330,370,H> CAB 2 <350> CAB 2 <K> CAB 2 <MTH> CAB 3 CAB 3 (WITH VANDAL HOOK) (NA)<350> CAB 4 CAB 5 CAB 5 <350> CAB 6 <330, H, MTH> CAB 6 (NA) <350> CAB 6 <K> CAB 7 CAB 8 <MTH> (OPG) CAB 8 <K> CAB GUARD CAB GUARD <MTH> WINDOW GUARD WINDOW GUARD <350> CAB MIRROR POWER WINDOW POWER WINDOW PARTS WINDOW WASHER SUNSHADE SUNVISOR <350,MTH(EU3, EU4)> FLOOR PARTS FLOOR PARTS (HEATER LESS) FLOOR PLATE SEAT (CLOTH) SEAT (VINYL) SUSPENSION SEAT (CLOTH) SUSPENSION SEAT SUSPENSION SEAT (WITH HEATER) <350,MTH(EU3,EU4)> AIR-SUSPENSION SEAT (WITH HEATER) <350, MTH(EU3, EU4)> HEATER SEAT PARTS <350, MTH(EU3, EU4)> SEAT BELT (SUSPENSION SEAT) SEAT BELT (SUSPENSION SEAT) (NA) SEAT BELT (AIR-SUSPENSION SEAT) <350,MTH(EU3, EU4)> SEAT STAND SEAT STAND (SUSPENSION) <330, H, K, MTH> SEAT STAND (SUSPENSION) <330, H, K, MTH> SEAT STAND (SUSPENSION) <350> (NA) COVER 1 COVER 2 COVER 3 COVER 3 (MONO BOOM) <350, MTH(EU3, EU4)> COVER 3 (2P-B00M) <350> COVER 4 COVER 5 COVER 5 <350,MTH(EU3, EU4)> COVER 6 COVER 7 COVER 7 <350,MTH(EU3,EU4)> COVER 8 TROPICAL COVER DOOR LOCK (1) DOOR LOCK (2) WEATHER STRIP ENGINE COVER TOOL COVER UNDER COVER <330, 370> UNDER COVER <350> UNDERCOVER (4.5mm) <350, MTH(EU3, EU4)> UNDER COVER <H, MTH> UNDER COVER <K> SIDE WALK <MTH> LUBRICATOR TRACK FRAME (STD. TRACK) TRACK FRAME (LC TRACK) TRACK FRAME (NARROW LC TRACK) TRACK FRAME <K> TRACK FRAME (MTH TRACK) TRACK GUARD <330, 350, K> TRACK GUARD <H> TRACK GUARD <370,MTH> FULL-LENGTH TRACK GUARD (STD. TRACK) FULL-LENGTH TRACK GUARD (LC TRACK, NARROW LC TRACK) FULL-LENGTH TRACK GUARD (MTH TRACK) STEP ADDITIONAL STEP TRACK UNDER COVER SWING BEARING SWING BEARING PARTS TRAVEL DEVICE TRAVEL DEVICE (MTH TRACK) TRAVEL DEVICE SUPPORT TRAVEL DEVICE SUPPORT (MTH TRACK) FRONT IDLER <330,350 (EU1), H, K> FRONT IDLER <350 (EU2)> FRONT IDLER (R) <370, MTH, MTH(EU3)> FRONT IDLER (R) <350(EU4)> FRONT IDLER (L) <370,MTH, MTH(EU3) FRONT IDLER (L) <MTH (EU4)> ADJUSTER <330.350 (EU1),H,K> ADJUSTER <350 (EU2)> ADJUSTER <370,MTH,MTH(EU3)> ADJUSTER <MTH(EU4)> UPPER ROLLER <330,350 (EU1), H, K> PPER ROLLER <350(EU2)> UPPER ROLLER <370,MTH,MTH(EU3)> UPPER ROLLER <MTH(EU4)> LOWER ROLLER <330,350(EU1), H, K> LOWER ROLLER <350(EU2)> LOWER ROLLER <370,MTH,MTH(EU3)> LOWER ROLLER <MTH(EU4)> LOWER ROLLER SUPPORT (STD. TRACK) LOWER ROLLER SUPPORT (LC TRACK, NARROW LC TRACK) LOWER ROLLER SUPPORT (MTH TRACK) TRACK-LINK (STD. TRACK) TRACK-LINK (LC TRACK) TRACK-LINK <350(EU1)> TRACK-LINK <350(EU2)> TRACK-LINK <370,MTH,MTH(EU3)> TRACK-LINK <MTH(EU4)> CENTER JOINT CENTER JOINT SUPPORT (TRACK) TRAVEL PIPING (STD. TRACK) TRAVEL PIPING (LC TRACK, NARROW LC TRACK) TRAVEL PIPING (MTH TRACK) TRAVEL MOTOR COVER TRAVEL MOTOR COVER (MTH TRACK) STD. BOOM <330, 370> H BOOM <350, H, MTH> К BOOM <K> ARM 3. 2M <330, 350, 370> H ARM 3. 2M <H, MTH> К ARM 3. 2M <K> ARM 2.33M <350,MTH(EU3,EU4) ARM 2.66M ARM 4.0M LINK A LINK В <330, 350, 370> LINK В <350,H,MTH> LINK В <K> FRONT PIPING BOOM CYLINDER (R) BOOM CYLINDER (L) ARM CYLINDER BUCKET CYLINDER LUBRICATE PIPING AUTO.LUBRICATE DEVICE AUTO.LUBRICATE PIPING (BOOM) AUTO.LUBRICATE PIPING (ARM) BUCKET 1.15 (JIS 94) BUCKET 1.4 (JIS 94) К BUCKET 1.4 (JIS 94) BUCKET 1.4 (JIS 94) (SUPER V TOOTH) BUCKET 1.4 (JIS 94) (SUPER V TOOTH, FOR TOOTH PLATE) BUCKET 1.4 (JIS 94) (SIDE-PIN TOOTH) BUCKET 1.62 (JIS 94) BUCKET 1.86 (JIS 94) ROCK BUCKET 1.15 (JIS 94) ROCK BUCKET 1. 38 (JIS 94) (SUPER V TOOTH) ROCK BUCKET 1.38 (JIS 94) (SIDE-PIN TOOTH) ROCK BUCKET 1.5 (JIS 94) (SUPER V TOOTH) ROCK BUCKET 1.5 (JIS 94) (SIDE-PIN TOOTH) RIPPER BUCKET 0.9 (JIS 94) ONE POINT RIPPER HOSE RUPTURE VALVE PIPING (BOOM) (ISO SPEC.) HOSE RUPTURE VALVE PIPING (ARM) (ISO SPEC) (MONO BOOM) OVER LOAD ALARM DEVICE 2P-B00M <350> FRONT PIPING (2P-B00M) <350> ARM CYLINDER (2P-B00M) <350> POSITIONING CYLINDER (2P-B00M) <350> LUBRICATE PIPING (2P-B00M) <350> HOSE RUPTURE VALVE PIPING (ARM) (ISO SPEC) (2P-B00M) HOSE RUPTURE VALVE PIPING (POSITIONING) (ISO SPEC) (2P-B00M) CONTROL PEDAL (2P-B00M) <350> PILOT PIPING (2P-B00M) <350> PILOT PIPING (2P-B00M/PT0) <350> MAINE PIPING (2P-B00M) <350> ВЕН BOOM <350> ВЕН ARM (2.11M) <350> ВЕН FRONT PIPING <350> ВЕН BUCKET CYLINDER <350> ВЕН LUBRICATE PIPING <350> ВЕН BOOM PIPING (BREAKER & CRUSHER) <350> ВЕН ARM PIPING (2.11M) (BREAKER & CRUSHER) <350> CONTROL PEDAL (BREAKER & CRUSHER) PILOT PIPING (BREAKER & CRUSHER) MAIN PIPING (BREAKER & CRUSHER) MAIN PIPING (BREAKER & CRUSHER) <350, MTH(EU3, EU4)> BOOM PIPING (BREAKER & CRUSHER) BOOM PIPING (BREAKER & CRUSHER) (MONO BOOM) <350,MTH(EU3, EU4)> BOOM PIPING (BREAKER & CRUSHER) (2P-B00M) <350> ARM PIPING (BREAKER & CRUSHER) ARM PIPING (2.33M ARM) (BREAKER & CRUSHER) <350> ARM PIPING (2.66M ARM) (BREAKER & CRUSHER) <350> ARM PIPING (3.20M ARM) (BREAKER & CRUSHER) <350, MTH(EU3, EU4)> ARM PIPING (4.00M ARM) <350> NPK BREAKER PIPING (BREAKER & CRUSHER) HSB BREAKER PIPING (BREAKER & CRUSHER) (MONO BOOM) HSB BREAKER PIPING (BREAKER & CRUSHER) (2P-B00M) <350> NPK COMMON PIPING (BREAKER & CRUSHER) HSB COMMON PIPING (BREAKER & CRUSHER) (MONO BOOM) HSB COMMON PIPING (BREAKER & CRUSHER) (2P-B00M) <350> PILOT PIPING (FLOW PATE SELECTOR) MAIN PIPING (FLOW PATE SELECTOR) MAINE PIPING (FLOW RATE SELECTOR) <350,MTH(EU3,EU4)> ELECTRIC PARTS (FLOW PATE SELECTOR) ADD. GEAR PUMP PIPING (30L) <350, MTH(EU3, EU4)> ADD. GEAR PUMP PIPING (50L) <350, MTH(EU3, EU4)> HIGH PERFORMANCE FILTER KIT <350,MTH(EU3, EU4)> ELECTRIC TYPE CONTROL PARTS (ADD/P) ELECTRIC TYPE CONTROL PARTS (PTO) MAINE PIPING (PTO) (MONO BOOM) PILOT PIPING (PTO/V, FLOW RATE SELECTOR) QUICKHITCH PIPING (MAIN) <350,MTH(EU3,EU4)> QUICKHITCH PIPING (MONO BOOM) <350, MTH(EU3.EU4)> QUICKHITCH PIPING (2P-B00M) <350> QUICKHITCH PIPING (2.33M ARM) <350> QUICKHITCH PIPING (2.66M ARM) <350> QUICKHITCH PIPING (3.20MARM) <350, MTH(EU3, EU4)> QUICKHITCH PIPING (4.00M ARM) <350> ASSIST PIPING (MONO BOOM) <350, MTH(EU3, EU4)> ASSIST PIPING (2P-B00M) <350> ASSIST PIPING (2.33M ARM) <350> ASSIST PIPING (2.66M ARM) <350> ASSIST PIPING (3.20MARM) <350, MTH(EU3, EU4)> ASSIST PIPING (4.00M ARM) <350> CLAMSHELL PIPING (2.33M ARM) <350> CLAMSHELL PIPING (2.66M ARM) <350> CLAMSHELL PIPING (3.20M ARM) <350, MTH(EU3, EU4)> CLAMSHELL PIPING (4.00M ARM) <350> QUICKHITCH / ASSIST COMMON PARTS (MONO BOOM) <350, MTH(EU3, EU4)> QUICKHITCH / ASSIST COMMON PARTS (2P-B00M) <350> PILOT PIPING (4-2) <TRAVEL HEAT> PILOT PIPING (11) <TRAVEL HEAT> TRAVEL HEAT ARTICLE <TRAVEL HEAT> TRAVEL HEAT PIPING <TRAVEL HEAT> TRAVEL DEVICE (STD. TRACK, LC TRACK, NARROW LC TRACK) <TRAVEL HEAT> TRAVEL PIPING (STD. TRACK) <TRAVEL HEAD> TRAVEL PIPING (LC TRACK, NARROW LC TRACK) <TRAVEL HEAT> 4 WAY MULTI LEVER (STD) 4 WAY MULTI LEVER PARTS (STD) 4 WAY MULTI LEVER PIPING (1) (STD) 4 WAY MULTI LEVER PIPING (2) (STD) 4 WAY MULTI LEVER PIPING (3) (STD) 4 WAY MULTI LEVER PIPING (4) (STD) TOOLS NAME PLATE (ENGLISH) (NA) NAME PLATE (RUSSIAN) NAME PLATE <350, MTH(EU3, EU4)>

2

3

3

4

4

9

10

10

11

11

Позиция на иллюстрации	Заводской номер детали		Название детали
2	4440150		САВLЕ, СОNТRОL
3	А590906		WASHER, SPRING
4	М500605		NUT
9	4190276		CLIP
10	J011020		BOLT, SEMS
10	J271020		BOLT, SEMS
11	4055312		CLIP, BAND

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
