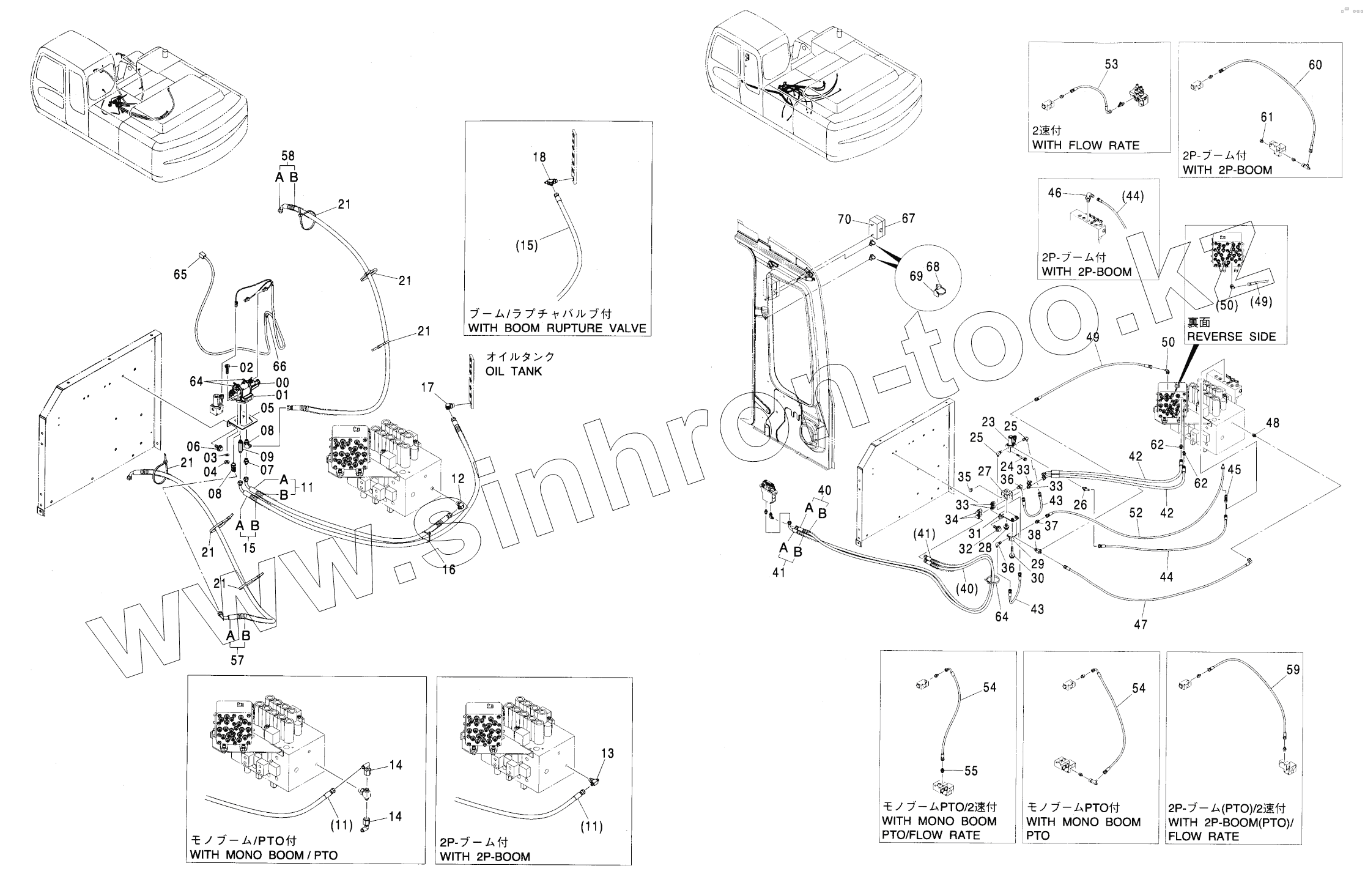

Каталог запасных частей к технике: Hitachi ZX-270. QUICKHITCH PIPING (MAIN)
00
01
02
03
04
05
06
07
08
08
09
11
11
11
11A
11B
12
13
14
14
15
15
15A
15B
16
17
18
21
21
21
21
21
21
57
57A
57B
58
58A
58B
64
65
66
23
24
25
25
26
27
28
29
30
31
32
33
33
33
34
35
36
36
37
38
40
40
40A
40B
41
41
41A
41B
42
42
43
43
44
44
45
46
47
48
49
49
50
50
52
53
54
54
55
59
60
61
62
62
64
64
67
68
69
70
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 00 | 4602676 | VALVE | |
| 01 | 4465103 | PLATE | |
| 02 | J780625 | BOLT, SOCKET | |
| 03 | А590906 | WASHER, SPRING | |
| 04 | М500605 | NUT | |
| 05 | 4291461 | BRACKET | |
| 06 | J011025 | BOLT, SEMS | |
| 07 | А852133 | ADAPTER, S | |
| 07A | 4509180 | O-RING | |
| 08 | А852333 | ELBOW, S | |
| 08A | 4509180 | O-RING | |
| 09 | 4325979 | ADAPTER | |
| 09A | 4509180 | O-RING | |
| 11 | 9229473 | HOSE ASSY | |
| 11A | 4382653 | HOSE | |
| 11B | 4327293 | PROTECTOR | |
| 12 | А852333 | ELBOW, S | |
| 12A | 4509180 | O-RING | |
| 13 | А852533 | TEE, S | |
| 13A | 4509180 | O-RING | |
| 14 | 4239976 | UNION, S | |
| 15 | 9229474 | HOSE ASSY | |
| 15A | 4295512 | HOSE | |
| 15B | 4327293 | PROTECTOR | |
| 16 | 4055312 | CLIP, BAND | |
| 17 | А852333 | ELBOW, S | |
| 17A | 4509180 | O-RING | |
| 18 | 4239713 | TEE | |
| 18A | 4509180 | O-RING | |
| 21 | 4121859 | CLIP, BAND | |
| 57 | 9226245 | HOSE ASSY | |
| 57A | 4603239 | HOSE | |
| 57B | 4327293 | PROTECTOR | |
| 58 | 9226246 | HOSE ASSY | |
| 58A | 4369453 | HOSE | |
| 58B | 4327293 | PROTECTOR | |
| 64 | 4055312 | CLIP, BAND | |
| 65 | 3099352 | HARNESS | |
| 66 | 4050373 | CLIP | |
| 23 | 4261289 | VALVE, SOLENOID | |
| 24 | J010865 | BOLT | |
| 25 | А852322 | ELBOW, S | |
| 25A | 957366 | O-RING | |
| 26 | А852222 | ELBOW, S | |
| 26A | 957366 | O-RING | |
| 27 | 4330230 | VALVE, SHUTTLE | |
| 28 | J010816 | BOLT, SEMS | |
| 29 | 4203447 | VALVE, SHUTTLE | |
| 30 | J010850 | BOLT, SEMS | |
| 31 | 9756109 | BRACKET | |
| 32 | J010825 | BOLT, SEMS | |
| 33 | А852133 | ADAPTER, S | |
| ЗЗA | 4509180 | O-RING | |
| 34 | 4239976 | UNION, S | |
| 35 | А885002 | PLUG | |
| 35A | 957366 | O-RING | |
| 36 | А852322 | ELBOW, S | |
| 36A | 957366 | O-RING | |
| 37 | А852122 | ADAPTER, S | |
| 37A | 957366 | O-RING | |
| 38 | А852422 | TEE, S | |
| 38A | 957366 | O-RING | |
| 40 | 9226248 | HOSE ASSY | |
| 40A | 4437638 | HOSE | |
| 40B | 4327293 | PROTECTOR | |
| 41 | 9226249 | HOSE ASSY | |
| 41A | 4390222 | HOSE | |
| 41B | 4327293 | PROTECTOR | |
| 42 | 4607497 | НОSЕ | |
| 43 | 4452733 | HOSE | |
| 44 | 4401960 | HOSE | |
| 45 | А852422 | TEE, S | |
| 45A | 957366 | O-RING | |
| 46 | А852322 | ELBOW, S | |
| 46A | 957366 | O-RING | |
| 47 | 4437901 | HOSE | |
| 48 | А852122 | ADAPTER, S | |
| 48A | 957366 | O-RING | |
| 49 | 4371270 | HOSE | |
| 50 | 4346096 | UNION, S | |
| 52 | 4607552 | HOSE | |
| 53 | 4442219 | HOSE | |
| 54 | 4427782 | HOSE | |
| 55 | А852122 | ADAPTER, S | |
| 55A | 957366 | O-RING | |
| 59 | 4616167 | HOSE | |
| 60 | 4605045 | HOSE | |
| 61 | А885002 | PLUG | |
| 61A | 957366 | O-RING | |
| 62 | А852132 | ADAPTERS | |
| 62A | 4509180 | O-RING | |
| 64 | 4055312 | CLIP, BAND | |
| 67 | 4607680 | SWITCH | |
| 68 | 4605834 | CLIP, BAND | |
| 69 | 4289709 | SUPPORT | |
| 70 | J460620 | SCREW, SEMS |
