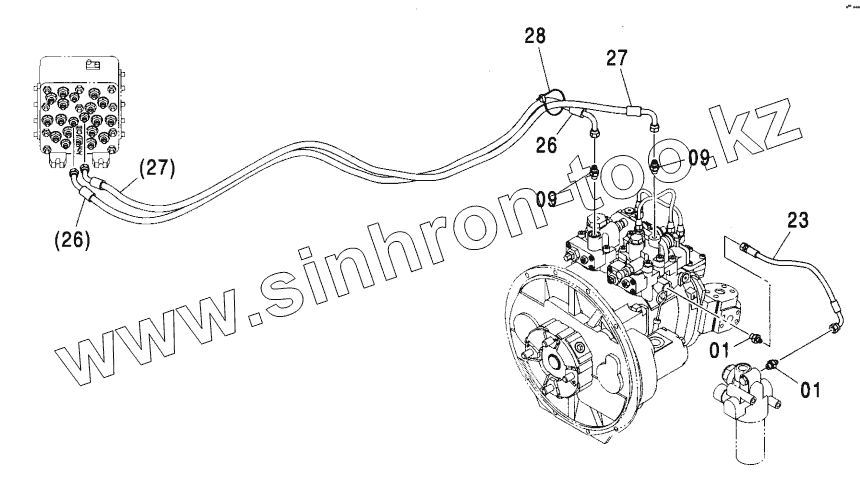

Каталог запасных частей к технике: Hitachi ZX-270. PILOT PIPING (B)

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано EX-100-2 (2000) EX-100-3 (2008) EX-100WD (2008) EX-120 (2008) EX-120-2 (2008) EX-160WD (2008) EX-200 (2008) EX-200-2 (2008) EX-200-3 EX-220 (2008) EX-220-2 (2008) EX-270 (2008) EX-300 (2008) EX-300-2 (2000) EX-400 Type A (2006) EX-400 Type B (2006) EX-60 (2003) EX-60-2 (2000) EX-60-3 (2008) EX-70 (2017) LX-110-7 (2008) LX-130-7 (2008) LX-150-2 (2008) LX-160-7 (2008) LX190-7/LX230-7 (2008) Zaxis 190-3 ZAXIS 200-5A (2018) ZAXIS 200LC-5A (2018) ZAXIS 210H-5A (2018) ZAXIS 210K-5A (2018) ZAXIS 210LCH-5A (2018) ZAXIS 210LCK-5A (2018) ZAXIS 330-5G (2017) ZAXIS 350H-5G (2017) ZAXIS 48U-5A (2020) ZAXIS 850-3 ZAXIS 870H-3 ZX-110 (2008) ZX-160W (2008) ZX-200 (2008) ZX-230 (2008) ZX-25 (2008) ZX-270 (2008) ZX-330 (2010) ZX-330-3 (Part № PIHH-I-3) (2008) ZX-330-3 (Part № PIHH-I-5) (2013) ZX-330-3G (2008) ZX-400R-3 (2010) ZX-450 (2006) ZX-600 (2007) Компоненты EX-100-2 (2000) Компоненты EX-100WD (2008) Компоненты EX-120 (2008) Компоненты EX-120-2 (2008) Компоненты EX-160WD (2008) Компоненты EX-200 (2008) Компоненты EX-200-2 (2008) Компоненты EX-200-3(LC, H) Компоненты EX-220 (2008) Компоненты EX-220-2 (2008) Компоненты EX-270 (2008) Компоненты EX-300 (2008) Компоненты EX-300-2 (2000) Компоненты EX-400 Type A (2006) Компоненты EX-400 Type B (2006) Компоненты EX-60 (2003) Компоненты EX-60-2 (2000) Компоненты EX-60-3 (2008) Компоненты ZAXIS 450, 470, 500, 520 (2010) Компоненты ZX-110 (2008) Компоненты ZX-120 (130) (2008) Компоненты ZX-160W (2008) Компоненты ZX-200 (2008) Компоненты ZX-230 (2008) Компоненты ZX-270 (2008) Компоненты ZX-330 (2008) Компоненты ZX-450 (2006)

Схема > Не выбрано FRAME SWING BEARING SUPPORT BOOM FOOT PIN CENTER JOINT PARTS (UPPERSTRUCTURE) COUNTERWEIGHT 6.1T COUNTERWEIGHT 6.5T ENGINE ENGINE SUPPORT OIL FILTER PIPING INTER COOLER PIPING INTER COOLER NET RADIATOR RADIATOR SUPPORT RADIATOR COVER RESERVE TANK AIR CLEANER AIR CLEANER SUPPORT AIR CLEANER PARTS PRE CLEANER PRE CLEANER PARTS MUFFLER FUEL TANK FUEL TANK SUPPORT FUEL PIPING FUEL FEED PUMP FUEL DOUBLE FILTER PUMP DEVICE PUMP DEVICE SUPPORT SWING DEVICE SWING DEVICE SUPPORT OIL TANK HIGH PERFORMANCE FILTER KIT <280> SUCTION PIPING DELIVERY PIPING RETURN PIPING RETURN PIPING DRAIN PIPING MAIN PIPING MAIN PIPING MAIN PIPING MAIN PIPING BOOM BOTTOM PIPING SIDE BRANCH PIPING ENGINE CONTROL ENGINE CONTROL MOTOR ENGINE STOP CABLE CONTROL LEVER (FRONT, SWING) CONTROL LEVER (TRAVEL) LOCK LEVER CONTROL VALVE CONTROL VALVE SUPPORT SOLENOID VALVE PILOT PIPING (A) PILOT PIPING (B) PILOT PIPING (C-1) PILOT PIPING (C-2) PILOT PIPING (D-1) PILOT PIPING (D-2) PILOT PIPING (E) PILOT PIPING (F) PILOT PIPING (G) PILOT PIPING (H) PILOT PIPING (I-1) PILOT PIPING (I-2) PILOT PIPING (J) CONSOLE CONSOLE COVER RIGHT COVER (STD) RIGHT COVER <280>(NA) RADIO (AM/FM) RADIO LESS PARTS (STD) CONTROL UNIT ELECTRIC PARTS (A) ELECTRIC PARTS (B) ELECTRIC PARTS (C) ELECTRIC PARTS (D) ELECTRIC PARTS (E) SWITCH BOX SATELLITE DATA COMMUNICATOR PARTS FRONT HEAD LAMP FRONT HEAD LAMP (4 LAMP) <280> FRONT HEAD LAMP (2 LAMP WITH SUNSHADE) <280> FRONT HEAD LAMP (4 LAMP WITH SUNSHADE) <280> REAR HEAD LAMP REAR HEAD LAMP (1 LAMP) <280> REAR HEAD LAMP (2 LAMP) <280> ROTATING BEACON <280> FUSE <280> BOOM LIGHT HARNESS (MONO BOOM) BOOM LIGHT HARNESS (2P-BOOM) BOOM LIGHT (R) <270> BOOM LIGHT (R) (MONO BOOM) (WITH LIGHT COVER) <280> BOOM LIGHT (R) (2P-BOOM) (WITH LIGHT COVER) <280> HORN SWING MOTION ALARM TRAVEL MOTION ALARM AIR CONDITIONER AIR CONDITIONER AIR CONDITIONER AIR CONDITIONER AIR-CON. UNIT CONDENSER NET HEATER PIPING CAR HEATER STD HEATER UNIT STD DUCT REAR BOX (AIR-CON.) STD REAR BOX (HEATER) STD REAR BOX (HEATER LESS) STD REAR BOX (12V POWER SUPPLY) POWER UNIT (12V) CAB GROUP CAB <270>STD CAB NA CAB <280> CAB (WITH GUARD SEAT) <280> CAB (WITH VANDAL HOOK) <280> CAB (OPG) <280> CAB (1) CAB (2) <270>STD,NA CAB (2) <280> CAB (3) CAB (3) WITH VANDAL HOOK <280> CAB (4) CAB (5) <270>STD,NA CAB (5) <280> CAB (6) <270>STD CAB (6) <280>NA CAB (7) CAB (8) OPG <280> CAB GUARD STD CAB GUARD OPG <280> WINDOW GUARD NA WINDOW GUARD 0PG<280> CAB MIRROR POWER WINDOW STD POWER WINDOW PARTS STD WINDOW WASHER SUNSHADE STD SUNVISOR <280> FLOOR PARTS FLOOR PARTS (HEATER LESS) STD FLOOR PLATE SEAT (CLOTH) STD SEAT (VINYL) STD SUSPENSION SEAT (CLOTH) SUSPENSION SEAT (VINIL) SUSPENSION SEAT (WITH HEATER) <280> AIR-SUSPENSION SEAT (WITH HEATER) <280> HEATER SEAT PARTS <280> SEAT BELT (SUSPENSION SEAT) SEAT BELT (SUSPENSION SEAT) NA SEAT BELT (AIR-SUSPENSION SEAT) <280> SEAT STAND STD SEAT STAND (SUSPENSION) <280>NA COVER (1) <270> COVER (1) <280> COVER (2) COVER (3) COVER (4) COVER (5) COVER (6) COVER (7) COVER (8) WITHOUT MULT I LEVER <270> COVER (8) WITH MULT I LEVER STD DOOR LOCK (1) DOOR LOCK (2) TROPICAL COVER WEATHER STRIP ENGINE COVER TOOL COVER UNDER COVER UNDER COVER (HEAVY DUTY TYPE) STD TRACK FRAME (STD. TRACK) TRACK FRAME (LC TRACK) TRACK FRAME (NARROW LC TRACK) TRACK GUARD FULL-LENGTH TRACK GUARD (STD. TRACK) FULL-LENGTH TRACK GUARD (LC TRACK, NARROW LC TRACK) STEP ADDITIONAL STEP TRACK UNDER COVER SWING BEARING SWING BEARING PARTS TRAVEL DEVICE TRAVEL DEVICE SUPPORT FRONT IDLER STD,NA,EU1 FRONT IDLER EU2 ADJUSTER STD, NA, EU1 ADJUSTER EU2 UPPER ROLLER STD, NA,EU1 UPPER ROLLER EU2 LOWER ROLLER (STD. TRACK) STD, NA LOWER ROLLER (NARROW LC TRACK) STD,NA,EU1 LOWER ROLLER (NARROW LC TRACK) EU2 TRACK-LINK (STD. TRACK) STD, NA TRACK-LINK (NARROW LC TRACK) EU1 TRACK-LINK (NARROW LC TRACK) EU2 CENTER JOINT CENTER JOINT SUPPORT (TRACK) TRAVEL PIPING (STD. TRACK) TRAVEL PIPING (LC TRACK, NARROW LC TRACK) TRAVEL MOTOR COVER BOOM ARM 2.4M ARM 3.1M ARM 3.75M LINK A LINK A (WITH HOOK) LINK В FRONT PIPING (MONO BOOM) BOOM CYLINDER (R) BOOM CYLINDER (L) ARM CYLINDER (MONO BOOM) BUCKET CYLINDER LUBRICATE PIPING (MONO BOOM) AUTO. LUBRICATE DEVICE BUCKET 1.0 JIS 94 BUCKET 1.1 JIS 94 BUCKET 1.39 JIS 94 BUCKET 1.62 JIS 94 ROCK BUCKET 0.92 JIS 94 RIPPER BUCKET 0.8 JIS 94 ONE-POINT RIPPER HOSE RUPTURE VALVE PIPING (BOOM) ISO SPEC HOSE RUPTURE VALVE PIPING (ARM)ISO SPEC. (MONO BOOM) OVER LOAD ALARM DEVICE 2P-BOOM FRONT PIPING (2P-BOOM)<280> ARM CYLINDER (2P-BOOM)<280> POSITIONING CYLINDER (2P-BOOM)<280> LUBRICATE PIPING (2P-BOOM) <280> HOSE RUPTURE VALVE PIPING (ARM)ISO SPEC. 2P-BOOM HOSE RUPTURE VALVE PIPING (POSITIONING)ISO SPEC. 2P-BOOM HOSE RUPTURE VALVE PIPING (POSITIONING)ISO SPEC. 2P-BOOM CONTROL PEDAL (2P-BOOM) PILOT PIPING (2P-BOOM):1 PILOT PIPING (2P-BOOM):2 MAIN PIPING (2P-BOOM):1 MAIN PIPING (2P-BOOM):2 CONTROL PEDAL (BREAKER & CRUSHER) PILOT PIPING (BREAKER & CRUSHER) MAIN PIPING (BREAKER & CRUSHER)<270> MAIN PIPING (BREAKER & CRUSHER)<280> BOOM PIPING (BREAKER & CRUSHER)MONO BOOM<270> BOOM PIPING (BREAKER & CRUSHER)MONO BOOM<280> BOOM PIPING (BREAKER & CRUSHER)2P-BOOM<280> ARM PIPING (2.4M ARM) BREAKER & CRUSHER)<280> ARM PIPING (3.1M ARM)BREAKER & CRUSHER<270> ARM PIPING (3.1M ARM) BREAKER & CRUSHER)<280> ARM PIPING (3.75M ARM)BREAKER & CRUSHER<280> NPK COMMON PIPING (BREAKER & CRUSHER)<270> HSB BREAKER PIPING (BREAKER & CRUSHER)MONO BOOM HSB BREAKER PIPING (BREAKER & CRUSHER) 2P-BOOM<280> HSB COMMON PIPING (BREAKER & CRUSHER)MONO BOOM HSB COMMON PIPING (BREAKER & CRUSHER)2P-BOOM<280> PILOT PIPING (FLOW RATE SELECTOR)-1 PILOT PIPING (FLOW RATE SELECTOR)-2 ELECTRIC PARTS (FLOW RATE SELECTOR) ADD. GEAR PUMP PIPING (30L) ADD. GEAR PUMP PIPING (50L) ELECTRIC TYPE CONTROL PARTS (ADD/P) ELECTRIC TYPE CONTROL PARTS (PTO) MAIN PIPING (PTO)MONO BOOM PILOT PIPING (PTO/V) PILOT PIPING (PTO/V, FLOW RATE SELECTOR) QUICKHITCH PIPING (MAIN) QUICKHITCH PIPING MONO BOOM<280> QUICKHITCH PIPING 2P-BOOM<280> QUICKHITCH PIPING (2.4M ARM)<280> QUICKHITCH PIPING (3.1M ARM)<280> QUICKHITCH PIPING (3.75M ARM)<280> ASSIST PIPING (MONO BOOM)<280> ASSIST PIPING (2P-BOOM)<280> ASSIST PIPING (2.4M ARM)<280> ASSIST PIPING (3.1M ARM)<280> ASSIST PIPING (3.75M ARM)<280> QUICKHITCH / ASSIST COMMON PARTS (MONO BOOM) <280> QUICKHITCH / ASSIST COMMON PARTS (2P-BOOM)<280> CLAMSHELL PIPING (2. 4M ARM)<280> CLAMSHELL PIPING (3.1M ARM)<280> CLAMSHELL PIPING (3.75M ARM)<280> 4 WAY MULTI LEVER STD 4 WAY MULTI LEVER PIPING STD TOOLS NAME PLATE (ENGLISH) STD NAME PLATE (ENGLISH) NA NAME PLATE <280>

01

01

09

09

23

26

26

27

27

28

Позиция на иллюстрации	Заводской номер детали		Название детали
01	А852122		ADAPTER, S
01A	957366		O-RING
09	А852123		ADAPTER, S
09A	957366		O-RING
23	4427359		HOSE
26	4449771		HOSE
27	4449772		HOSE
28	4055312		CLIP, BAND

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
