PILOT PIPING (2P-BOOM):1

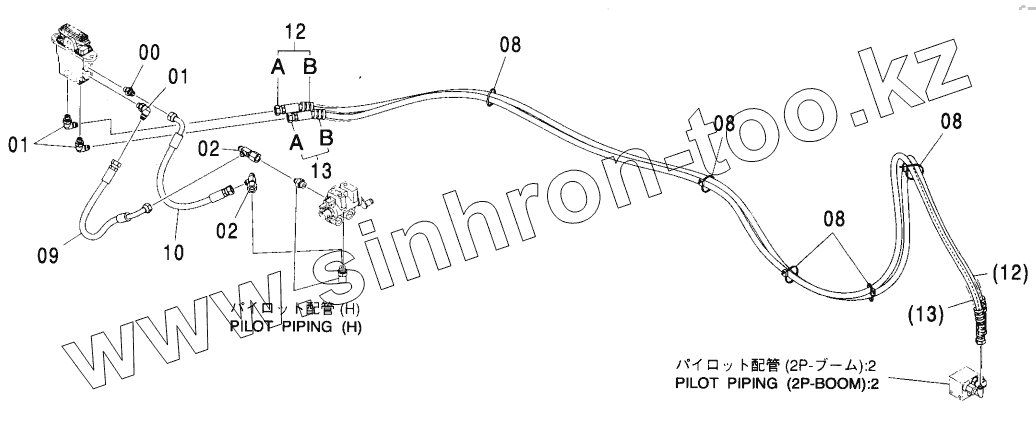

Каталог запасных частей к технике: Hitachi ZX-270. PILOT PIPING (2P-BOOM):1
