Вернуться на главную
Поиск
Каталоги запчастей к технике
Спецтехника
Hitachi
ZX-270
MAIN PIPING

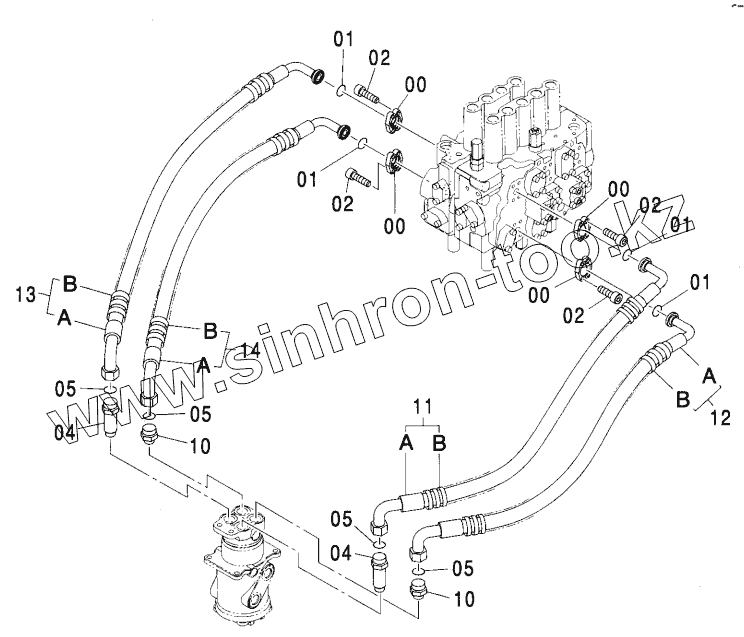

Каталог запасных частей к технике: Hitachi ZX-270. MAIN PIPING
zoom-in
zoom-out
enlarge
shrink
circle-right
circle-left
file-text2
info
cart
Тип техники
Не выбрано
Легковые автомобили
Грузовые автомобили и прицепы
Автобусы
Сельхозтехника
Спецтехника
Двигатели
Мототехника
Марка
Не выбрано
Ammann
BOMAG
CARMIX
CASE IH
Changlin
ChengGong
Dimex
Doosan
DYNAPAC
Foton
HAMM
Hidromek
Hitachi
Hyundai
JCB
JLG
John Deere
Komatsu
LIEBHERR
LiuGong
Lonking (LongGong)
Luneng
MANITOU
Mitsuber
New Holland
PENGPU
RM-Terex
SANY
SDLG
SEM
Shantui
Shehwa HBXG
Soosan
TIGARBO
VOGELE
Volvo
WAY
WIRTGEN
XCMG
XGMA
Xiamen
YTO
Yuchai
Zoomlion
Автокран
АЗСМ
Алтайлесмаш
Амкодор
АОМЗ
Атек
АТЗ
Балканкар Рекорд
БелАЗ
Беловеж
Борекс
Брянский Арсенал
Булат
ВЭКС
ГАЗ
Геомаш
Гидромаш
Донекс
Дормаш
Дормашина
Дорэлектромаш
ДЭЗ
ЕлАЗ
ЗЗГТ
Ижнефтемаш
Канаш-электрокар
КЗКТ
ККЗ
Клевер
Клинцовский автокрановый завод
КМЗ
КМЗ 1 Мая
Ковровец
Коммаш
Кранэкс
КЭЗ
КЭМЗ
ЛЗА
МАЗ
МЗИК
МЗКМ
МЗКТ
Михневский РМЗ
МоАЗ
Мозырский МЗ
МТЗ
ОЗП
Онежец
ПАО "ТЗА"
ППС Детва
Промтрактор
ПТЗ
Раскат
СпецАгрегат
ТВЭКС
ТТМ
УВЗ
Угличмаш
УЗТМ
ХТЗ
ЧЗКМ
ЧСДМ
ЧТЗ
ЭКСКО
ЭКСМАШ
ЮрМаш
Модель
Не выбрано
EX-100-2 (2000)
EX-100-3 (2008)
EX-100WD (2008)
EX-120 (2008)
EX-120-2 (2008)
EX-160WD (2008)
EX-200 (2008)
EX-200-2 (2008)
EX-200-3
EX-220 (2008)
EX-220-2 (2008)
EX-270 (2008)
EX-300 (2008)
EX-300-2 (2000)
EX-400 Type A (2006)
EX-400 Type B (2006)
EX-60 (2003)
EX-60-2 (2000)
EX-60-3 (2008)
EX-70 (2017)
LX-110-7 (2008)
LX-130-7 (2008)
LX-150-2 (2008)
LX-160-7 (2008)
LX190-7/LX230-7 (2008)
Zaxis 190-3
ZAXIS 200-5A (2018)
ZAXIS 200LC-5A (2018)
ZAXIS 210H-5A (2018)
ZAXIS 210K-5A (2018)
ZAXIS 210LCH-5A (2018)
ZAXIS 210LCK-5A (2018)
ZAXIS 330-5G (2017)
ZAXIS 350H-5G (2017)
ZAXIS 48U-5A (2020)
ZAXIS 850-3
ZAXIS 870H-3
ZX-110 (2008)
ZX-160W (2008)
ZX-200 (2008)
ZX-230 (2008)
ZX-25 (2008)
ZX-270 (2008)
ZX-330 (2010)
ZX-330-3 (Part № PIHH-I-3) (2008)
ZX-330-3 (Part № PIHH-I-5) (2013)
ZX-330-3G (2008)
ZX-400R-3 (2010)
ZX-450 (2006)
ZX-600 (2007)
Компоненты EX-100-2 (2000)
Компоненты EX-100WD (2008)
Компоненты EX-120 (2008)
Компоненты EX-120-2 (2008)
Компоненты EX-160WD (2008)
Компоненты EX-200 (2008)
Компоненты EX-200-2 (2008)
Компоненты EX-200-3(LC, H)
Компоненты EX-220 (2008)
Компоненты EX-220-2 (2008)
Компоненты EX-270 (2008)
Компоненты EX-300 (2008)
Компоненты EX-300-2 (2000)
Компоненты EX-400 Type A (2006)
Компоненты EX-400 Type B (2006)
Компоненты EX-60 (2003)
Компоненты EX-60-2 (2000)
Компоненты EX-60-3 (2008)
Компоненты ZAXIS 450, 470, 500, 520 (2010)
Компоненты ZX-110 (2008)
Компоненты ZX-120 (130) (2008)
Компоненты ZX-160W (2008)
Компоненты ZX-200 (2008)
Компоненты ZX-230 (2008)
Компоненты ZX-270 (2008)
Компоненты ZX-330 (2008)
Компоненты ZX-450 (2006)
Схема
>
Не выбрано
FRAME
SWING BEARING SUPPORT
BOOM FOOT PIN
CENTER JOINT PARTS (UPPERSTRUCTURE)
COUNTERWEIGHT 6.1T
COUNTERWEIGHT 6.5T
ENGINE
ENGINE SUPPORT
OIL FILTER PIPING
INTER COOLER PIPING
INTER COOLER NET
RADIATOR
RADIATOR SUPPORT
RADIATOR COVER
RESERVE TANK
AIR CLEANER
AIR CLEANER SUPPORT
AIR CLEANER PARTS
PRE CLEANER
PRE CLEANER PARTS
MUFFLER
FUEL TANK
FUEL TANK SUPPORT
FUEL PIPING
FUEL FEED PUMP
FUEL DOUBLE FILTER
PUMP DEVICE
PUMP DEVICE SUPPORT
SWING DEVICE
SWING DEVICE SUPPORT
OIL TANK
HIGH PERFORMANCE FILTER KIT <280>
SUCTION PIPING
DELIVERY PIPING
RETURN PIPING
RETURN PIPING
DRAIN PIPING
MAIN PIPING
MAIN PIPING
MAIN PIPING
MAIN PIPING
BOOM BOTTOM PIPING
SIDE BRANCH PIPING
ENGINE CONTROL
ENGINE CONTROL MOTOR
ENGINE STOP CABLE
CONTROL LEVER (FRONT, SWING)
CONTROL LEVER (TRAVEL)
LOCK LEVER
CONTROL VALVE
CONTROL VALVE SUPPORT
SOLENOID VALVE
PILOT PIPING (A)
PILOT PIPING (B)
PILOT PIPING (C-1)
PILOT PIPING (C-2)
PILOT PIPING (D-1)
PILOT PIPING (D-2)
PILOT PIPING (E)
PILOT PIPING (F)
PILOT PIPING (G)
PILOT PIPING (H)
PILOT PIPING (I-1)
PILOT PIPING (I-2)
PILOT PIPING (J)
CONSOLE
CONSOLE COVER
RIGHT COVER (STD)
RIGHT COVER <280>(NA)
RADIO (AM/FM)
RADIO LESS PARTS (STD)
CONTROL UNIT
ELECTRIC PARTS (A)
ELECTRIC PARTS (B)
ELECTRIC PARTS (C)
ELECTRIC PARTS (D)
ELECTRIC PARTS (E)
SWITCH BOX
SATELLITE DATA COMMUNICATOR PARTS
FRONT HEAD LAMP
FRONT HEAD LAMP (4 LAMP) <280>
FRONT HEAD LAMP (2 LAMP WITH SUNSHADE) <280>
FRONT HEAD LAMP (4 LAMP WITH SUNSHADE) <280>
REAR HEAD LAMP
REAR HEAD LAMP (1 LAMP) <280>
REAR HEAD LAMP (2 LAMP) <280>
ROTATING BEACON <280>
FUSE <280>
BOOM LIGHT HARNESS (MONO BOOM)
BOOM LIGHT HARNESS (2P-BOOM)
BOOM LIGHT (R) <270>
BOOM LIGHT (R) (MONO BOOM) (WITH LIGHT COVER) <280>
BOOM LIGHT (R) (2P-BOOM) (WITH LIGHT COVER) <280>
HORN
SWING MOTION ALARM
TRAVEL MOTION ALARM
AIR CONDITIONER
AIR CONDITIONER
AIR CONDITIONER
AIR CONDITIONER
AIR-CON. UNIT
CONDENSER NET
HEATER PIPING
CAR HEATER STD
HEATER UNIT STD
DUCT
REAR BOX (AIR-CON.) STD
REAR BOX (HEATER) STD
REAR BOX (HEATER LESS) STD
REAR BOX (12V POWER SUPPLY)
POWER UNIT (12V)
CAB GROUP
CAB <270>STD
CAB NA
CAB <280>
CAB (WITH GUARD SEAT) <280>
CAB (WITH VANDAL HOOK) <280>
CAB (OPG) <280>
CAB (1)
CAB (2) <270>STD,NA
CAB (2) <280>
CAB (3)
CAB (3) WITH VANDAL HOOK <280>
CAB (4)
CAB (5) <270>STD,NA
CAB (5) <280>
CAB (6) <270>STD
CAB (6) <280>NA
CAB (7)
CAB (8) OPG <280>
CAB GUARD STD
CAB GUARD OPG <280>
WINDOW GUARD NA
WINDOW GUARD 0PG<280>
CAB MIRROR
POWER WINDOW STD
POWER WINDOW PARTS STD
WINDOW WASHER
SUNSHADE STD
SUNVISOR <280>
FLOOR PARTS
FLOOR PARTS (HEATER LESS) STD
FLOOR PLATE
SEAT (CLOTH) STD
SEAT (VINYL) STD
SUSPENSION SEAT (CLOTH)
SUSPENSION SEAT (VINIL)
SUSPENSION SEAT (WITH HEATER) <280>
AIR-SUSPENSION SEAT (WITH HEATER) <280>
HEATER SEAT PARTS <280>
SEAT BELT (SUSPENSION SEAT)
SEAT BELT (SUSPENSION SEAT) NA
SEAT BELT (AIR-SUSPENSION SEAT) <280>
SEAT STAND STD
SEAT STAND (SUSPENSION) <280>NA
COVER (1) <270>
COVER (1) <280>
COVER (2)
COVER (3)
COVER (4)
COVER (5)
COVER (6)
COVER (7)
COVER (8) WITHOUT MULT I LEVER <270>
COVER (8) WITH MULT I LEVER STD
DOOR LOCK (1)
DOOR LOCK (2)
TROPICAL COVER
WEATHER STRIP
ENGINE COVER
TOOL COVER
UNDER COVER
UNDER COVER (HEAVY DUTY TYPE) STD
TRACK FRAME (STD. TRACK)
TRACK FRAME (LC TRACK)
TRACK FRAME (NARROW LC TRACK)
TRACK GUARD
FULL-LENGTH TRACK GUARD (STD. TRACK)
FULL-LENGTH TRACK GUARD (LC TRACK, NARROW LC TRACK)
STEP
ADDITIONAL STEP
TRACK UNDER COVER
SWING BEARING
SWING BEARING PARTS
TRAVEL DEVICE
TRAVEL DEVICE SUPPORT
FRONT IDLER STD,NA,EU1
FRONT IDLER EU2
ADJUSTER STD, NA, EU1
ADJUSTER EU2
UPPER ROLLER STD, NA,EU1
UPPER ROLLER EU2
LOWER ROLLER (STD. TRACK) STD, NA
LOWER ROLLER (NARROW LC TRACK) STD,NA,EU1
LOWER ROLLER (NARROW LC TRACK) EU2
TRACK-LINK (STD. TRACK) STD, NA
TRACK-LINK (NARROW LC TRACK) EU1
TRACK-LINK (NARROW LC TRACK) EU2
CENTER JOINT
CENTER JOINT SUPPORT (TRACK)
TRAVEL PIPING (STD. TRACK)
TRAVEL PIPING (LC TRACK, NARROW LC TRACK)
TRAVEL MOTOR COVER
BOOM
ARM 2.4M
ARM 3.1M
ARM 3.75M
LINK A
LINK A (WITH HOOK)
LINK В
FRONT PIPING (MONO BOOM)
BOOM CYLINDER (R)
BOOM CYLINDER (L)
ARM CYLINDER (MONO BOOM)
BUCKET CYLINDER
LUBRICATE PIPING (MONO BOOM)
AUTO. LUBRICATE DEVICE
BUCKET 1.0 JIS 94
BUCKET 1.1 JIS 94
BUCKET 1.39 JIS 94
BUCKET 1.62 JIS 94
ROCK BUCKET 0.92 JIS 94
RIPPER BUCKET 0.8 JIS 94
ONE-POINT RIPPER
HOSE RUPTURE VALVE PIPING (BOOM) ISO SPEC
HOSE RUPTURE VALVE PIPING (ARM)ISO SPEC. (MONO BOOM)
OVER LOAD ALARM DEVICE
2P-BOOM
FRONT PIPING (2P-BOOM)<280>
ARM CYLINDER (2P-BOOM)<280>
POSITIONING CYLINDER (2P-BOOM)<280>
LUBRICATE PIPING (2P-BOOM) <280>
HOSE RUPTURE VALVE PIPING (ARM)ISO SPEC. 2P-BOOM
HOSE RUPTURE VALVE PIPING (POSITIONING)ISO SPEC. 2P-BOOM
HOSE RUPTURE VALVE PIPING (POSITIONING)ISO SPEC. 2P-BOOM
CONTROL PEDAL (2P-BOOM)
PILOT PIPING (2P-BOOM):1
PILOT PIPING (2P-BOOM):2
MAIN PIPING (2P-BOOM):1
MAIN PIPING (2P-BOOM):2
CONTROL PEDAL (BREAKER & CRUSHER)
PILOT PIPING (BREAKER & CRUSHER)
MAIN PIPING (BREAKER & CRUSHER)<270>
MAIN PIPING (BREAKER & CRUSHER)<280>
BOOM PIPING (BREAKER & CRUSHER)MONO BOOM<270>
BOOM PIPING (BREAKER & CRUSHER)MONO BOOM<280>
BOOM PIPING (BREAKER & CRUSHER)2P-BOOM<280>
ARM PIPING (2.4M ARM) BREAKER & CRUSHER)<280>
ARM PIPING (3.1M ARM)BREAKER & CRUSHER<270>
ARM PIPING (3.1M ARM) BREAKER & CRUSHER)<280>
ARM PIPING (3.75M ARM)BREAKER & CRUSHER<280>
NPK COMMON PIPING (BREAKER & CRUSHER)<270>
HSB BREAKER PIPING (BREAKER & CRUSHER)MONO BOOM
HSB BREAKER PIPING (BREAKER & CRUSHER) 2P-BOOM<280>
HSB COMMON PIPING (BREAKER & CRUSHER)MONO BOOM
HSB COMMON PIPING (BREAKER & CRUSHER)2P-BOOM<280>
PILOT PIPING (FLOW RATE SELECTOR)-1
PILOT PIPING (FLOW RATE SELECTOR)-2
ELECTRIC PARTS (FLOW RATE SELECTOR)
ADD. GEAR PUMP PIPING (30L)
ADD. GEAR PUMP PIPING (50L)
ELECTRIC TYPE CONTROL PARTS (ADD/P)
ELECTRIC TYPE CONTROL PARTS (PTO)
MAIN PIPING (PTO)MONO BOOM
PILOT PIPING (PTO/V)
PILOT PIPING (PTO/V, FLOW RATE SELECTOR)
QUICKHITCH PIPING (MAIN)
QUICKHITCH PIPING MONO BOOM<280>
QUICKHITCH PIPING 2P-BOOM<280>
QUICKHITCH PIPING (2.4M ARM)<280>
QUICKHITCH PIPING (3.1M ARM)<280>
QUICKHITCH PIPING (3.75M ARM)<280>
ASSIST PIPING (MONO BOOM)<280>
ASSIST PIPING (2P-BOOM)<280>
ASSIST PIPING (2.4M ARM)<280>
ASSIST PIPING (3.1M ARM)<280>
ASSIST PIPING (3.75M ARM)<280>
QUICKHITCH / ASSIST COMMON PARTS (MONO BOOM) <280>
QUICKHITCH / ASSIST COMMON PARTS (2P-BOOM)<280>
CLAMSHELL PIPING (2. 4M ARM)<280>
CLAMSHELL PIPING (3.1M ARM)<280>
CLAMSHELL PIPING (3.75M ARM)<280>
4 WAY MULTI LEVER STD
4 WAY MULTI LEVER PIPING STD
TOOLS
NAME PLATE (ENGLISH) STD
NAME PLATE (ENGLISH) NA
NAME PLATE <280>
00
00
00
00
01
01
01
01
02
02
02
02
04
04
05
05
05
05
10
10
11
11A
11B
12
12A
12B
13
13A
13B
14
14A
14B
Позиция на иллюстрации
Заводской номер детали
Название детали
00
986910
FLANGE, SPLIT
01
971489
O-RING
02
J781030
BOLT, SOCKET
04
4198411
АDАРТЕR, S
04A
4506424
O-RING
05
4187328
O-RING
10
А853168
ADAPTERS
10A
4506424
O-RING
11
9199904
НОSЕ АSSY
11A
4438881
НОSЕ
11B
4327294
PROTECTOR
12
9199905
НОSЕ АSSY
12A
4438885
НОSЕ
12B
4327294
PROTECTOR
13
9206186
НОSЕ АSSY
13A
4466479
НОSЕ
13B
4327294
PROTECTOR
14
9206187
НОSЕ АSSY
14A
4466480
НОSЕ
14B
4327294
PROTECTOR
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
Дополнительная информация
×
Название:
Номер:
Примечание:
