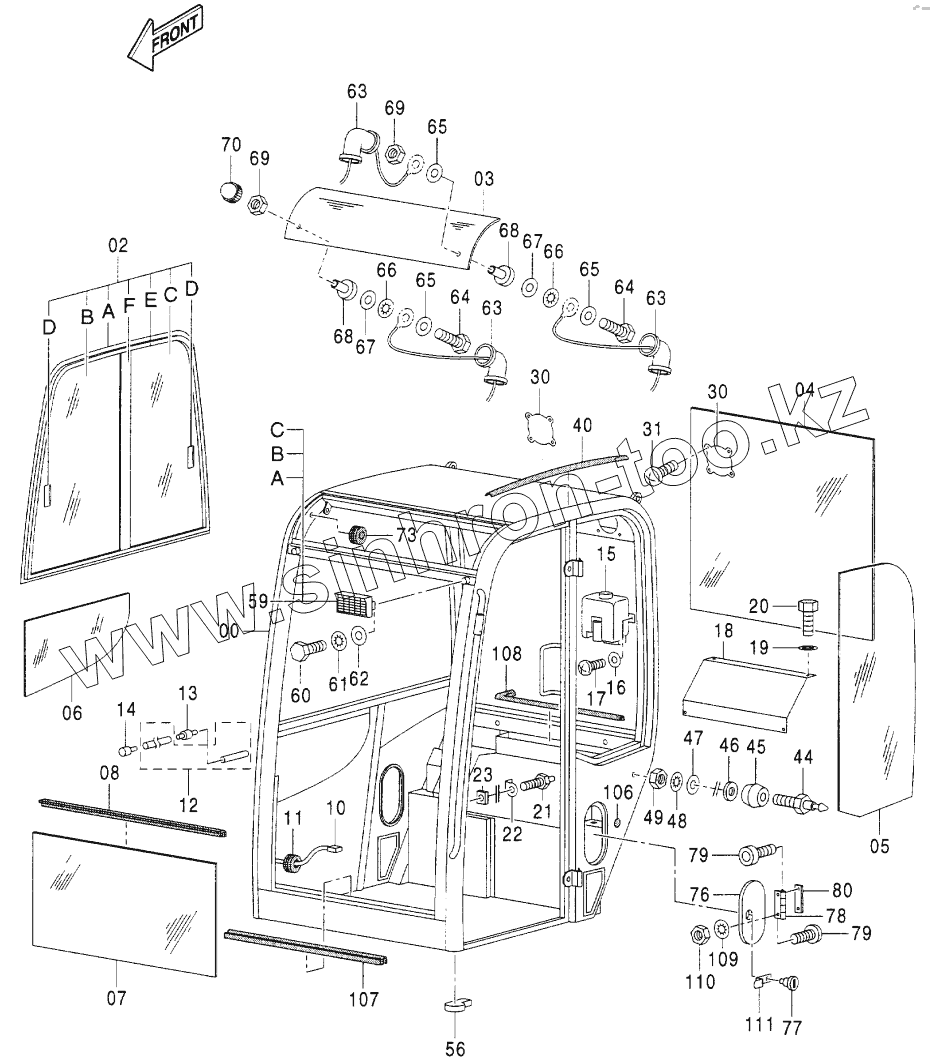

Каталог запасных частей к технике: Hitachi ZX-25. CAB (1)
00
02
02A
02В
02С
02D
02D
02Е
02F
03
04
05
06
07
08
10
11
12
13
14
15
16
17
18
19
20
21
22
23
30
30
31
40
44
45
46
47
48
49
56
59
59A
59В
59С
60
61
62
63
63
63
64
64
65
65
65
66
66
67
67
68
68
69
69
70
73
76
77
78
79
79
80
106
107
108
109
110
111
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 00 | CAB | CAB | |
| 02 | E4607139 | SASH | |
| 02A | FRAME | FRAME, FRONT | |
| 02В | GLASS | GLASS | |
| 02С | GLASS | GLASS | |
| 02D | LOCK | LOCK | |
| 02Е | SEAL | SEAL | |
| 02F | SASH | SASH | |
| 03 | E4607140 | PLATE | |
| 04 | E4607141 | GLASS | |
| 05 | E4607142 | GLASS | |
| 06 | E4607143 | GLASS | |
| 07 | E4607144 | GLASS | |
| 08 | E4607145 | SEAL | |
| 10 | E4607147 | HARNESS, WIRE | |
| 11 | E4607148 | BUSHING, RUBBEER | |
| 12 | E4607149 | PIPE | |
| 13 | E4607150 | VALVE | |
| 14 | E4607151 | NOZZLE | |
| 15 | E4607152 | TANK, WASHER | |
| 15A | CAP | CAP | |
| 16 | E4607153 | WASHER | |
| 17 | E4607154 | SCREW | |
| 18 | E4607155 | PLATE | |
| 19 | E4607156 | WASHER | |
| 20 | E4607157 | SCREW | |
| 21 | E4607158 | STRIKER | |
| 22 | E4607159 | COVER | |
| 23 | E4607160 | SEATT, SCREW | |
| 30 | E4607167 | PLATE | |
| 31 | E4607168 | SCREW | |
| 40 | E4607177 | SEAL | |
| 44 | E4607181 | STRIKER | |
| 45 | E4607182 | COVER | |
| 46 | E4607183 | SPACER | |
| 47 | E4607184 | WASHER | |
| 48 | E4607185 | WASHER | |
| 49 | E4607186 | NUT | |
| 56 | E4607193 | PLUG | |
| 59 | Е4607195 | LIGHT | |
| 59A | LENS | LENS | |
| 59В | BULB | BULB | |
| 59С | SEAL | SEAL | |
| 60 | E4607196 | SCREW | |
| 61 | E4607197 | WASHER | |
| 62 | E4607198 | WASHER | |
| 63 | E4607199 | BOOT | |
| 64 | E4607200 | SCREW | |
| 65 | E4607201 | WASHER | |
| 66 | E4607202 | WASHER | |
| 67 | E4607153 | WASHER | |
| 68 | E4607203 | NUT | |
| 69 | E4607204 | NUT | |
| 70 | E4607205 | CAP | |
| 71 | E4607206 | SCREW | |
| 73 | E4607207 | BUSHING, RUBBER | |
| 76 | E4607210 | COMER | |
| 77 | E4607211 | KEY | |
| 78 | E4607212 | HINGE | |
| 79 | E4607213 | SCREW | |
| 80 | E4607214 | PLATE | |
| 106 | E4607238 | RUBBER | |
| 107 | E4607239 | SEAL | |
| 108 | E4607240 | SEAL | |
| 109 | E4607241 | WASHER | |
| 110 | E4607242 | NUT | |
| 111 | E4607243 | PLATE |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
