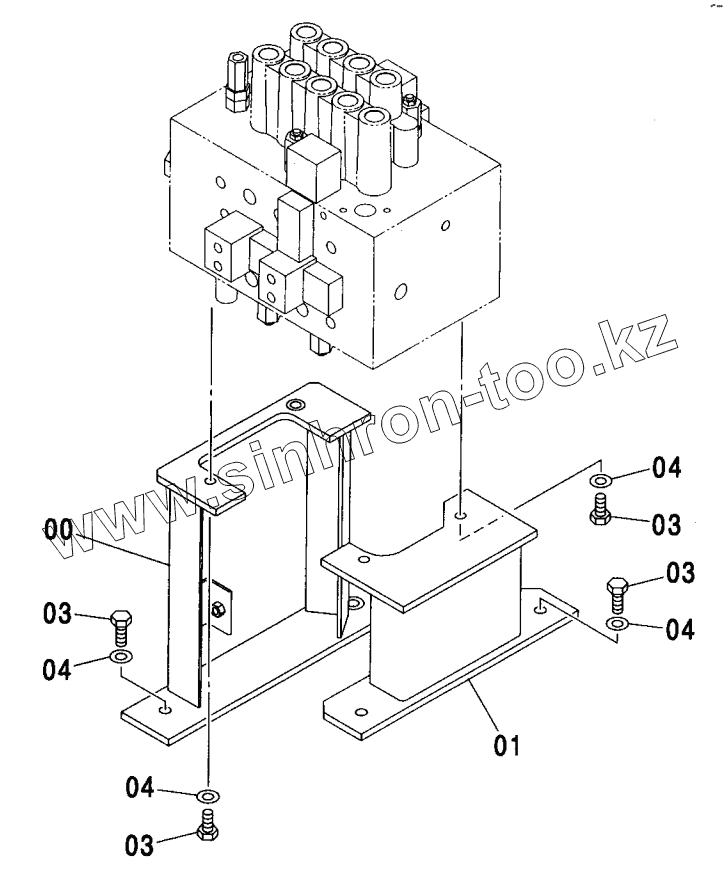

Каталог запасных частей к технике: Hitachi ZX-200. CONTROL VALVE SUPPORT

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано EX-100-2 (2000) EX-100-3 (2008) EX-100WD (2008) EX-120 (2008) EX-120-2 (2008) EX-160WD (2008) EX-200 (2008) EX-200-2 (2008) EX-200-3 EX-220 (2008) EX-220-2 (2008) EX-270 (2008) EX-300 (2008) EX-300-2 (2000) EX-400 Type A (2006) EX-400 Type B (2006) EX-60 (2003) EX-60-2 (2000) EX-60-3 (2008) EX-70 (2017) LX-110-7 (2008) LX-130-7 (2008) LX-150-2 (2008) LX-160-7 (2008) LX190-7/LX230-7 (2008) Zaxis 190-3 ZAXIS 200-5A (2018) ZAXIS 200LC-5A (2018) ZAXIS 210H-5A (2018) ZAXIS 210K-5A (2018) ZAXIS 210LCH-5A (2018) ZAXIS 210LCK-5A (2018) ZAXIS 330-5G (2017) ZAXIS 350H-5G (2017) ZAXIS 48U-5A (2020) ZAXIS 850-3 ZAXIS 870H-3 ZX-110 (2008) ZX-160W (2008) ZX-200 (2008) ZX-230 (2008) ZX-25 (2008) ZX-270 (2008) ZX-330 (2010) ZX-330-3 (Part № PIHH-I-3) (2008) ZX-330-3 (Part № PIHH-I-5) (2013) ZX-330-3G (2008) ZX-400R-3 (2010) ZX-450 (2006) ZX-600 (2007) Компоненты EX-100-2 (2000) Компоненты EX-100WD (2008) Компоненты EX-120 (2008) Компоненты EX-120-2 (2008) Компоненты EX-160WD (2008) Компоненты EX-200 (2008) Компоненты EX-200-2 (2008) Компоненты EX-200-3(LC, H) Компоненты EX-220 (2008) Компоненты EX-220-2 (2008) Компоненты EX-270 (2008) Компоненты EX-300 (2008) Компоненты EX-300-2 (2000) Компоненты EX-400 Type A (2006) Компоненты EX-400 Type B (2006) Компоненты EX-60 (2003) Компоненты EX-60-2 (2000) Компоненты EX-60-3 (2008) Компоненты ZAXIS 450, 470, 500, 520 (2010) Компоненты ZX-110 (2008) Компоненты ZX-120 (130) (2008) Компоненты ZX-160W (2008) Компоненты ZX-200 (2008) Компоненты ZX-230 (2008) Компоненты ZX-270 (2008) Компоненты ZX-330 (2008) Компоненты ZX-450 (2006)

Схема > Не выбрано FRAME <200,E, 210, H, K> FRAME <N,240> BOOM FOOT PIN CENTER JOINT PARTS (UPPERSTRUCTURE) COUNTERWEIGHT (<200, E, 210>, (B TYPE) <H, K>) COUNTERWEIGHT ((HG TYPE) <K>, (WITH HANGING) COUNTERWEIGHT (IRON CASTING) <N> COUNTERWEIGHT <N,240> COUNTERWEIGHT 0. 4T <N> COUNTERWEIGHT LOT <N> ENGINE ENGINE SUPPORT OIL FILTER PIPING INTER COOLER PIPING INTER COOLER NET RADIATOR RADIATOR SUPPORT RADIATOR COVER RESERVE TANK AIR CLEANER AIR CLEANER SUPPORT <200, E, 210, H, K> AIR CLEANER SUPPORT <N,240> AIR CLEANER PARTS <200, E, 210, H, K> AIR CLEANER PARTS <N,240> PRE CLEANER PRE CLEANER PARTS <200, E, 210, H, K> PRE CLEANER PARTS <N,240> MUFFLER FUEL TANK <200, E, 210, H, K> FUEL TANK <N,240> FUEL TANK SUPPORT FUEL PIPING <200,E, 210, H, K> FUEL PIPING <N,240> FUEL FEED PUMP <200, E, 210, H, K> FUEL FEED PUMP <N,240> FUEL DOUBLE FILTER PUMP DEVICE <200, 210, H, K, N,240> PUMP DEVICE <E> PUMP DEVICE SUPPORT SWING DEVICE SWING DEVICE SUPPORT OIL TANK <200, E.210, H> OIL TANK <K> OIL TANK <N,240> HIGH PERFORMANCE FILTER KIT <210,N,240> SUCTION PIPING DELIVERY PIPING <200, E, 210, H, K> DELIVERY PIPING <N,240> RETURN PIPING (1) <200, E, 210, H, K> RETURN PIPING (1) <N,240> RETURN PIPING (2) <200, E, 210, H, K> RETURN PIPING (2) <N,240> DRAIN PIPING <200, E, 210, H, K> DRAIN PIPING <N,240> MAIN PIPING (1) MAIN PIPING (2) <200, E, 210, H, K> MAIN PIPING (2) <N,240> MAIN PIPING (3) MAIN PIPING (4) <200, E, 210, H, K> MAIN PIPING (4) <N,240> BOOM BOTTOM PIPING FRAME PARTS (BOOM DAMP ING) <200, E, H, K> BOOM DAMPING SYSTEM <200, E, H, K> SIDE BRANCH PIPING <200, E, 210, H, K> SIDE BRANCH PIPING <N,240> SWING REACTIONLESS VALVE <200,E, H, K> AUTO. ENGINE CONTROL ENGINE CONTROL MOTOR (AUTO. ENGINE CONTROL) ENGINE STOP CABLE (AUTO. ENGINE CONTROL) MANUAL ENGINE CONTROL <200,E,H, K> MANUAL ENGINE CONTROL PARTS <200,E, H, K> CONTROL LEVER (FRONT, SWING) CONTROL LEVER (TRAVEL) <200, E, 210, H> CONTROL LEVER (TRAVEL) <K> CONTROL LEVER (TRAVEL) <N,240> LOCK LEVER CONTROL VALVE CONTROL VALVE SUPPORT SOLENOID VALVE <200, 210, H, K, N,240> SOLENOID VALVE <E> PILOT PIPING (A) <200, 210, H, K> PILOT PIPING (A) <E> PILOT PIPING (A) <N,240> PILOT PIPING (B) (AUTO. ENGINE CONTROL) PILOT PIPING (B) (MANUAL ENGINE CONTROL) <200, E,H, K> PILOT PIPING (C-1) (AUTO. ENGINE CONTROL) PILOT PIPING (C-1) (MANUAL ENGINE CONTROL) <200, E, H, K> PILOT PIPING (C-2) (AUTO. ENGINE CONTROL) <200,210,H,K> PILOT PIPING (C-2) (AUTO. ENGINE CONTROL) <E> PILOT PIPING (C-2) (AUTO. ENGINE CONTROL) <N,240> PILOT PIPING (C-2) (MANUAL ENGINE CONTROL) <200,E, H, K> PILOT PIPING (D-1) PILOT PIPING (D-2) PILOT PIPING (E) PILOT PIPING (F) PILOT PIPING (G) PILOT PIPING (H) PILOT PIPING (1-1) <200, 210, H, K> PILOT PIPING (1-1) <E> PILOT PIPING (1-1) <N,240> PILOT PIPING (I-2) <200,210,H,K> PILOT PIPING (I-2) <E> PILOT PIPING (I-2) <N,240> PILOT PIPING (J) CONSOLE CONSOLE COVER (AUTO. ENGINE CONTROL) CONSOLE COVER (MANUAL ENGINE CONTROL) <200,E, H,K> RIGHT COVER RADIO (AM/FM) RADIO LESS PARTS CONTROL UNIT ELECTRIC PARTS (A) <200, E, 210, H, K> ELECTRIC PARTS (A) <N,240> ELECTRIC PARTS (B) ELECTRIC PARTS (C) <200, 210, H, K, E> ELECTRIC PARTS (C) <N,240> ELECTRIC PARTS (D) (AUTO. ENGINE CONTROL) ELECTRIC PARTS (D) (MANUAL ENGINE CONTROL) <200, E, H, K> ELECTRIC PARTS (E) (AUTO. ENGINE CONTROL) <200, 210, H, K, N,240> ELECTRIC PARTS (E) (AUTO. ENGINE CONTROL) <E> ELECTRIC PARTS (E) (MANUAL ENGINE CONTROL) <200,E,H, K> ELECTRIC PARTS (F) (MANUAL ENGINE CONTROL) <200, E, H, K> SWITCH BOX (AUTO. ENGINE CONTROL) <200, 210, H, K, N,240> SWITCH BOX (AUTO. ENGINE CONTROL) <E> SWITCH BOX (MANUAL ENGINE CONTROL) <200, E, H, K> SATELLITE DATA COMMUNICATOR PART FRONT HEAD LAMP <200, 210, H, K, N,240> FRONT HEAD LAMP <E> FRONT HEAD LAMP (4 LAMP) <210, N,240> FRONT HEAD LAMP (2 LAMP WITH SUNSHADE) <210, N,240> FRONT HEAD LAMP (4 LAMP WITH SUNSHADE) <210, N,240> REAR HEAD LAMP <200, E, H, K> REAR HEAD LAMP (1 LAMP) <210, N,240> REAR HEAD LAMP (2 LAMP) <210, N,240> ROTATING BEACON <210,N,240> FUSE <210, N,240> BOOM LIGHT HARNESS (MONO BOOM) BOOM LIGHT HARNESS (2P-B00M) BOOM LIGHT (R) <200, E, H, K> BOOM LIGHT (R) (MONO BOOM) (WITH LIGHT COVER) <210, N,240> BOOM LIGHT (R) (2P-B00M) (WITH LIGHT COVER) <210, N,240> HORN SWING MOTION ALARM <200, E, H, K> TRAVEL MOTION ALARM <200, E, H, K> OVER LOAD ALARM DEVICE AIR CONDITIONER (1) AIR-CON. UNIT AIR CONDITI ONER (2) <200, E, 210, H, K> AIR CONDITIONER (2) <N,240> AIR CONDITIONER (3) <200, E, 210, Hr K> AIR CONDITIONER (3) <N,240> AIR CONDITIONER (4) CONDENSER NET HEATER PIPING CAR HEATER HEATER UNIT DUCT REAR BOX (AIR-CON., HEATER) REAR BOX (HEATER LESS) REAR BOX (12V POWER SUPPLY) POWER UNIT (12V) CAB GROUP <200, E, H, K> CAB GROUP (0PG) <210, N,240> CAB <200, E, H> CAB (HG-Type) <K> CAB (STD) <210,N,240> CAB (WITH GUARD SEAT) <210, N,240> CAB (WITH VANDAL HOOK) <210, N,240> CAB (OPG) <210, N,240> CAB (1) <200,E,210,H,N,240> CAB (1) (HG-Type) <K> CAB (2) <200, E, H> CAB (2) (HG-Type) <K> CAB (2) <210,N,240> CAB (3) CAB (3) (WITH VANDAL HOOK) <210,N,240> CAB (4) CAB (5) <200,E,H,K> CAB (5) <210,N,240> CAB (6) <200, E,H> CAB (6) (HG-Type) <K> CAB (6) <210,N,240> CAB (7) CAB (8) (HG-Type) <K> CAB (8) (OPG) <210,N,240> CAB GUARD CAB GUARD (OPG) <210, N,240> WINDOW GUARD <210,N,240> CAB MIRROR POWER WINDOW POWER WINDOW PARTS WINDOW WASHER SUNSHADE <200,210,H,K,N,240> SUNSHADE <E> SUNVISOR <210,N,240> FLOOR PARTS FLOOR PARTS (HEATER LESS) FLOOR PLATE SEAT SUSPENSION SEAT SUSPENSION SEAT (WITH HEATER) <210,N,240> AIR-SUSPENSION SEAT (WITH HEATER) <210,N,240> HEATER SEAT PARTS <210,N,240> SEAT BELT (SUSPENSION SEAT) SEAT BELT (AIR-SUSPENSION SEAT) <210,N,240> SEAT STAND <200, H, K> SEAT STAND <E> SEAT STAND (SUSPENSION) SEAT STAND (SUSPENSION) COVER (1) <200, E,210, H, K> COVER (1) <N,240> COVER (2) <200, E, 210, H, K> COVER (2) <N,240> COVER (3) <200, 210, H, K> COVER (3) <E> COVER (3) <N,240> COVER (4) <200,E,210,H,K> COVER (4) <N,240> COVER (5) <200,E, 210, H, K> COVER (5) <N,240> COVER (6) <200, E, 210, H, K> COVER (6) <N,240> COVER (7) <200, E, 210, H, K> COVER (7) <N,240> TROPICAL COVER DOOR LOCK (1) DOOR LOCK (2) WEATHER STRIP ENGINE COVER <200, E, 210, H, K> ENGINE COVER <N,240> TOOL COVER <200, E, 210, H, K> TOOL COVER <N,240> UNDER COVER <200, E,210> UNDER COVER <N,240> UNDER COVER (B TYPE) <H, K> UNDER COVER (HG TYPE) <K> TRACK FRAME (STD. TRACK) <200, E, 210> TRACK FRAME (STD. TRACK) <H, K> TRACK FRAME (LC TRACK) <200, E, 210> TRACK FRAME (LC TRACK) <H, K> TRACK FRAME <N> TRACK FRAME <240> TRACK GUARD <200, E, 210, K, N> TRACK GUARD (HEAVY DUTY TYPE X 4) <H, N> TRACK GUARD (HEAVY DUTY TYPE X 2) FULL-LENGTH TRACK GUARD (STD. TRACK) FULL-LENGTH TRACK GUARD KIT (STD. TRACK) FULL-LENGTH TRACK GUARD (LC TRACK) FULL-LENGTH TRACK GUARD KIT (LC TRACK) FULL-LENGTH TRACK GUARD <240> FULL-LENGTH TRACK GUARD <240> STEP <H, K> ADDITIONAL STEP TRACK UNDER COVER <K, N,240> SWING BEARING SWING BEARING PARTS TRAVEL DEVICE <200, E, 210, H, K> TRAVEL DEVICE <N,240> TRAVEL DEVICE SUPPORT FRONT IDLER (STD,EU1, EU3) FRONT IDLER (EU2,EU4) ADJUSTER (STD,EU1) ADJUSTER (EU2) ADJUSTER (EU3) UPPER ROLLER (STD,EU1,EU3) UPPER ROLLER (EU2, EU4) LOWER ROLLER (STD. TRACK) (STD.EU1) LOWER ROLLER (STD. TRACK) (EU2) LOWER ROLLER (LC TRACK) (STD, EU1, EU3) LOWER ROLLER (LC TRACK) (EU2,EU4) TRACK-LINK (STD. TRACK) (STD) TRACK-LINK (STD. TRACK) (EU1) TRACK-LINK (STD. TRACK) (EU2) TRACK-LINK (LC TRACK) (STD) TRACK-LINK (LC TRACK) (EU1) TRACK-LINK (LC TRACK) (EU2) TRACK-LINK (500G) <N> (STD,EU1) TRACK-LINK (500G) <N> (EU2) TRACK-LINK (550G) (EU3) PAD CRAWLER B600 (SEPARATE-TYPE) (STD. TRACK) PAD CRAWLER B600 (SEPARATE-TYPE) (LC TRACK) CENTER JOINT CENTER JOINT SUPPORT (TRACK) TRAVEL PIPING (STD. TRACK, LC TRACK) TRAVEL PIPING <240> TRAVEL MOTOR COVER STD. BOOM BOOM <210, H, N,240> К BOOM ARM 2.22M ARM 2.91M H ARM 2.91M К ARM 2.91M LINK A <200, E, 210, H, N,240> LINK A (WITH HOOK) <K> LINK В <200, E, 210, N> LINK В (В TYPE) <H, K, 240> LINK В (HG TYPE) <K> FRONT PIPING (MONO BOOM) BOOM CYLINDER (R) BOOM CYLINDER (L) ARM CYLINDER <200, E, 210, H. N,240> ARM CYLINDER <K> BUCKET CYLINDER <200, E, 210, H, N,240> BUCKET CYLINDER <K> LUBRICATE PIPING (MONO BOOM) AUTO. LUBRICATE DEVICE <200, E, 210, H, K> AUTO. LUBRICATE DEVICE <N,240> AUTO. LUBRICATE PIPING (BOOM) AUTO. LUBRICATE PIPING (ARM) BUCKET 0.51 (JIS 94) BUCKET 0.8 (JIS 94) BUCKET 0.8 ( JIS 94) (SIDE AND BOTTOM WEAR PLATE) (NUT TYPE) BUCKET 0.8 (JIS 94) (SIDE AND BOTTOM WEAR PLATE) (RING TYPE) H BUCKET 0.8 (JIS 94) H BUCKET 0.8 (JIS 94) <SUPER V TOOTH> К BUCKET 0.8 (JIS 94) BUCKET 0.91 (JIS 94) BUCKET 1.1 (JIS 94) BUCKET 1.2 (J IS 94) SIDE-PIN Type BUCKET 0.8 (JIS 94) RIPPER BUCKET 0.6 (JIS 94) ONE-POINT RIPPER SLOPE-FINISHING BLADE V-TYPE BUCKET 0.4 (JIS 94) HOSE RUPTURE VALVE PIPING (MONO BOOM) :1 (ISO SPEC) HOSE RUPTURE VALVE PIPING (MONO BOOM) :2 (ISO SPEC) HOSE RUPTURE VALVE PIPING (MONO BOOM) :3 (ISO SPEC) HOSE RUPTURE VALVE PIPING (ARM) (ISO SPEC) (MONO BOOM) :1 HOSE RUPTURE VALVE PIPING (ARM) (ISO SPEC) (MONO BOOM) :2 2P-B00M <210, N,240> ARM 2.03M <210, N,240> ARM 2.42M <210, N,240> ARM 3. 51M <210,N,240> FRONT PIPING (2P-B00M) <210,N,240> ARM CYLINDER (2P-B00M) <210, N,240> POSITIONING CYLINDER (2P-B00M) <210, N,240> LUBRICATE PIPING (2P-B00M) <210,N,240> CONTROL PEDAL (2P-B00M) <210, N,240> CONTROL PEDAL (2P-B00M) <210, H,240> PILOT PIPING (2P-B00M) <210, N,240> PILOT PIPING (2P-B00M/PT0) <210, N,240> MAIN PIPING (2P-B00M) <210, N,240> HOSE RUPTURE VALVE PIPING (2P-B00M) :1 (ISO SPEC) HOSE RUPTURE VALVE PIPING (2P-B00M) :2 (ISO SPEC) HOSE RUPTURE VALVE PIPING (2P-B00M) :3 (ISO SPEC) HOSE RUPTURE VALVE PIPING (ARM) (ISO SPEC) (2P-B00M) :1 HOSE RUPTURE VALVE PIPING (ARM) (ISO SPEC) (2P-B00M) :2 HOSE RUPTURE VALVE PIPING (POSITIONING) (ISO SPEC) (2P-B00M) :1 HOSE RUPTURE VALVE PIPING (POSITIONING) (ISO SPEC) (2P-B00M) :2 BOOM BOTTOM PIPING (RIVER MAINTENANCE) BOOM (TYPE 15) ARM (TYPE 15) BUCKET 0.4 (JIS 94) BUCKET 0.5 (JIS 94) DITCH CLEANING BUCKET 0.5 (JIS 94) (WITHOUT POINTS) DITCH CLEANING BUCKET 0.5 (JIS 94) (WITH POINTS) FRONT PIPING (1) (TYPE 15) FRONT PIPING (2) (TYPE 15) FRONT PIPING (3) (TYPE 15) LUBRICATE PIPING (1) (TYPE 15) LUBRICATE PIPING (2) (TYPE 15) CONTROL PEDAL (BREAKER & CRUSHER) PILOT PIPING (BREAKER & CRUSHER) MAIN PIPING (BREAKER & CRUSHER) <200, E, H, K> MAIN PIPING (BREAKER & CRUSHER) <210,N,240> BOOM PIPING (BREAKER & CRUSHER) <200,E, H, K> BOOM PIPING (BREAKER & CRUSHER) (MONO BOOM) <210,N,240> BOOM PIPING (BREAKER & CRUSHER) (2P-B00M) :1 <210,N,240> BOOM PIPING (BREAKER & CRUSHER) (2P-B00M) :2 <210, N,240> ARM PIPING (BREAKER & CRUSHER) <200, E, H, K> ARM PIPING (2.03M ARM) (BREAKER & CRUSHER) <210,N,240> ARM PIPING (2.42M ARM) (BREAKER & CRUSHER) <210,N,240> ARM PIPING (2.91M ARM) (BREAKER & CRUSHER) <210,N,240> ARM PIPING (3.51M ARM) (BREAKER & CRUSHER) <210, N,240> NPK COMMON PIPING (BREAKER & CRUSHER) <200, E, H, K> HSB COMMON PIPING (BREAKER & CRUSHER) (MONO BOOM) HSB BREAKER PIPING (BREAKER & CRUSHER) (2P-B00M) <210, N,240> HSB COMMON PIPING (BREAKER & CRUSHER) (2P-B00M) <210,N,240> PILOT PIPING (FLOW RATE SELECTOR) -1 PILOT PIPING (FLOW RATE SELECTOR) -2 ELECTRIC PARTS (FLOW RATE SELECTOR) LINE FILTER (for Saudi Arabia) LINE FILTER (for Saudi Arabia) TRAVEL HEAT PARTS <TRAVEL HEAT> TRAVEL HEAT ARTICLE <TRAVEL HEAT> PILOT PIPING (C-2) (AUTO. ENGINE CONTROL) <TRAVEL HEAT> PILOT PIPING (J) <TRAVEL HEAT> TRAVEL PIPING (STD. TRACK) <TRAVEL HEAT> TRAVEL PIPING (LC TRACK) <TRAVEL HEAT> MAIN PIPING (PTO) (MONO BOOM) <N,240> PILOT PIPING (PTO/V, FLOW RATE SELECTOR) <N,240> ADD. GEAR PUMP (30L) PIPING <210> ADD. GEAR PUMP (30L) PIPING <N,240> ADD. GEAR PUMP (50L) PIPING <210, N,240> ELECTRIC TYPE CONTROL PARTS (PTO) (MONO BOOM) <N,240> QUICKHITCH PIPING (MAIN) <210,N,240> QUICKHITCH PIPING (PILOT) <210,N,240> QUICKHITCH PIPING (MONO BOOM) <210, N,240> QUICKHITCH PIPING (2P-B00M) :1 <210, N,240> QUICKHITCH PIPING (2P-B00M) :2 <210,N,240> QUICKHITCH PIPING (2.03M ARM) <210, N,240> QUICKHITCH PIPING (2.42M ARM) <210, N,240> QUIGKHITGH PIPING (2.91M ARM) <210, N,240> QUICKHITCH PIPING (3.51M ARM) <210, N,240> ASSIST PIPING (MONO BOOM) <210,N,240> ASSIST PIPING (2P-B00M) :1 <210, N,240> ASSIST PIPING (2P-B00M) :2 <210,N,240> ASSIST PIPING (2.03M ARM) <210, N,240> ASSIST PIPING (2.42M ARM) <210, N,240> ASSIST PIPING (2.91M ARM) <210, N,240> ASSIST PIPING (3.51M ARM) <210,N,240> QUICKHITCH / ASSIST COMMON PARTS (MONO BOOM) <210,N,240> QUICKHITCH / ASSIST COMMON PARTS (2P-B00M) :1 <210,N,240> QUICKHITCH / ASSIST COMMON PARTS (2P-B00M) :2 <210,N,240> CLAMSHELL PIPING (2.03M ARM) <210,N,240> CLAMSHELL PIPING (2.42M ARM) <210,N,240> CLAMSHELL PIPING (2.91M ARM) <210,N,240> CLAMSHELL PIPING (3.51M ARM) <210, N,240> 2 WAY MULTI LEVER (STD) 2 WAY MULT I LEVER PIPING (STD) 4 WAY MULT I LEVER (STD) 4 WAY MULT I LEVER PIPING (STD) FILTER KIT TOOLS

8074127

8089062

1

3

3

3

3

4

4

4

4

Позиция на иллюстрации	Заводской номер детали		Название детали
8074127	8074127		BRACKET
8089062	8089062		BRACKET
1	8074128		BRACKET
3	J921640		BOLT
4	А590916		WASHER, SPRING

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
