00
00A
00B
00C
01
02
04
04
05
06
07

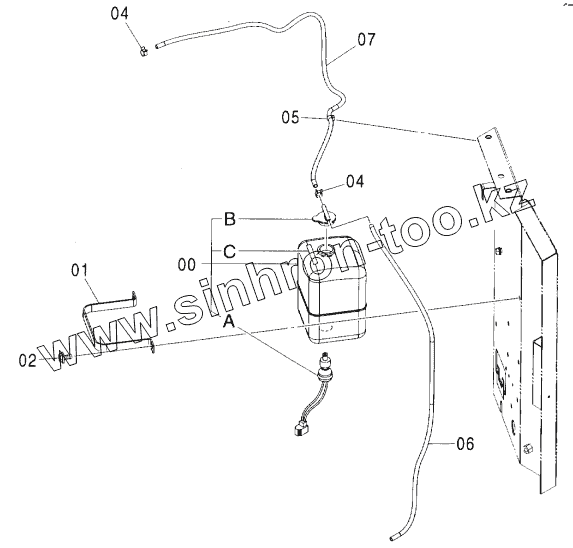

Позиция на иллюстрации
Заводской номер детали
Название детали
00
4130139
TANK, WATER
00A
4153251
SWITCH, LEVEL
00B
4396809
CAP
00C
4288260
NAME-PLATE
01
4180555
CLAMP
02
J020820
BOLT, SEMS
04
4425139
CLAMP, HOSE
05
4254600
CLIP
06
4142844
HOSE, VINYL
07
4384188
HOSE, WATER
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
