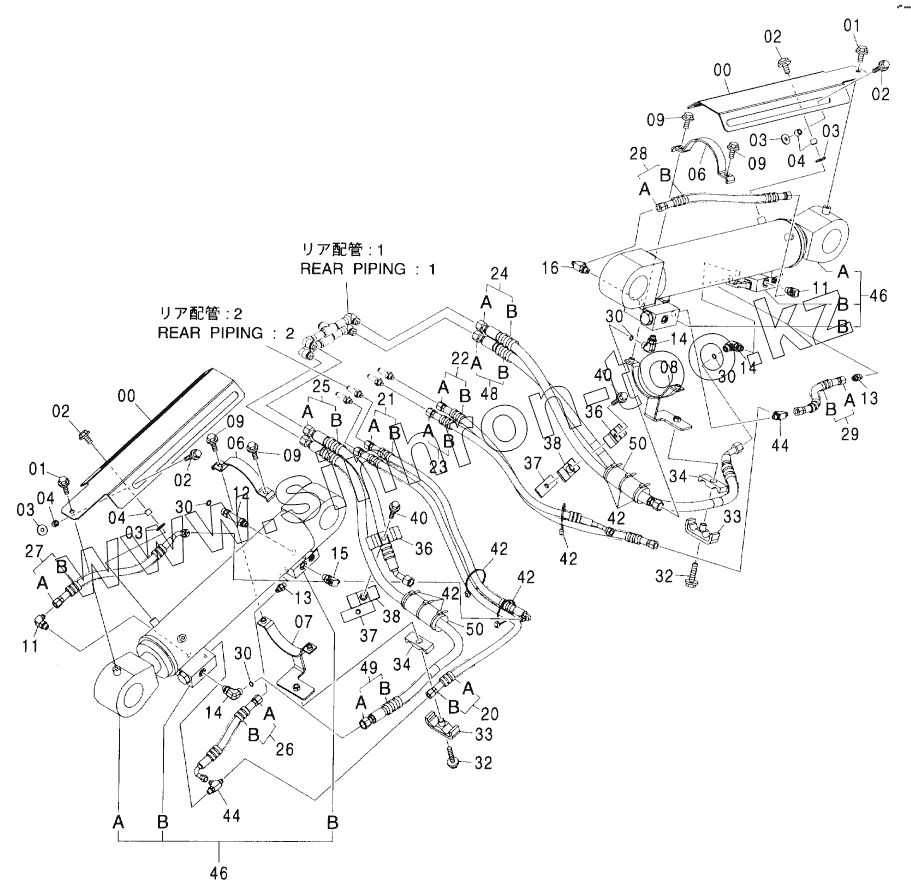

Каталог запасных частей к технике: Hitachi ZX-160W. OUTRIGER PIPING (CARRIER)
00
00
01
01
02
02
02
02
03
03
03
03
04
04
04
06
06
07
08
09
09
09
09
11
11
11A
12
12A
13
13
13A
14
14
14
14A
15
15A
16
16A
20
20A
20B
21
21A
21B
22
22A
22B
23
23A
23B
24
24A
24B
25
25A
25B
26
26A
26B
27
27A
27B
28
28A
28B
29
29A
29B
30
30
30
30
32
32
33
33
34
34
36
36
37
37
38
38
40
40
42
42
42
42
42
44
44
44A
44A
46
46
46A
46A
46B
46B
46B
46B
48
48A
48B
49
49A
49B
50
50
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 00 | 3097573 | COVER, CYL. | |
| 01 | J021025 | BOLT, SEMS | |
| 02 | J031040 | BOLT, SEMS | |
| 03 | J217083 | WASHER | |
| 04 | 4488863 | COLLAR | |
| 06 | 3050114 | CLAMP | |
| 07 | 8092349 | CLAMP | |
| 08 | 8092350 | CLAMP | |
| 09 | J021035 | BOLT, SEMS | |
| 11 | А852333 | ELBOW, S | |
| 11A | 4509180 | O-RING | |
| 12 | 4342171 | ADAPTERS | |
| 12A | 4509180 | O-RING | |
| 13 | А852123 | ADAPTER, S | |
| 13A | 957366 | O-RING | |
| 14 | 4202112 | ELBOW, S | |
| 14A | 4509180 | O-RING | |
| 15 | А852533 | TEE, S | |
| 15A | 4509180 | O-RING | |
| 16 | А852433 | TEE, S | |
| 16A | 4509180 | O-RING | |
| 20 | 9201346 | HOSE ASSY | |
| 20A | 4327293 | PROTECTOR | |
| 20B | 4464524 | HOSE | |
| 21 | 9227679 | HOSE ASSY | |
| 21A | 4453023 | HOSE | |
| 21B | 4327293 | PROTECTOR | |
| 22 | 9227680 | HOSE ASSY | |
| 22A | 4605162 | HOSE | |
| 22B | 4327293 | PROTECTOR | |
| 23 | 9227682 | HOSE ASSY | |
| 23A | 4605164 | HOSE | |
| 23B | 4327293 | PROTECTOR | |
| 24 | 9183926 | HOSE ASSY | |
| 24A | 4285801 | HOSE | |
| 24B | 4327294 | PROTECTOR | |
| 25 | 9227684 | HOSE ASSY | |
| 25A | 4605165 | HOSE | |
| 25B | 4327294 | PROTECTOR | |
| 26 | 9223465 | HOSE ASSY | |
| 26A | 4487172 | HOSE | |
| 26B | 4327293 | PROTECTOR | |
| 27 | 9223916 | HOSE ASSY | |
| 27A | 4489604 | HOSE | |
| 27B | 4327293 | PROTECTOR | |
| 28 | 9223911 | HOSE ASSY | |
| 28A | 4489599 | HOSE | |
| 28B | 4327293 | PROTECTOR | |
| 29 | 9223467 | HOSE ASSY | |
| 29A | 4489054 | HOSE | |
| 29B | 4327293 | PROTECTOR | |
| 30 | 4138938 | O-RING | |
| 32 | J021275 | BOLT, SEMS | |
| 33 | 8082431 | CLAMP | |
| 34 | 4285722 | RUBBER | |
| 36 | 4202103 | CLAMP | |
| 37 | 9738975 | CLAMP | |
| 38 | 9727634 | CLAMP | |
| 40 | J021250 | BOLT, SEMS | |
| 42 | 4055312 | CLIP, BAND | |
| 44 | А852423 | TEE, S | |
| 44A | 957366 | O-RING | |
| 46 | 9224867 | OUTRIGGER CYL. ASSY | |
| 46A | 4486405 | CYL., OUTRIGGER | |
| 46B | 9220919 | VALVE, CHECK | |
| 48 | 9230892 | HOSE ASSY | |
| 48A | 4300032 | HOSE | |
| 48B | 4327294 | PROTECTOR | |
| 49 | 9230893 | HOSE ASSY | |
| 49A | 4285804 | HOSE | |
| 49B | 4327294 | PROTECTOR | |
| 50 | 4219918 | BUSHING, RUBBER |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
