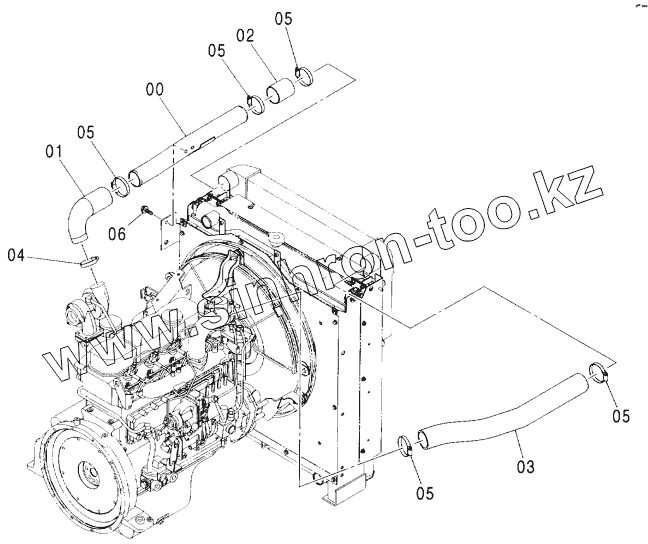

Каталог запасных частей к технике: Hitachi ZX-160W. INTER COOLER PIPING

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано EX-100-2 (2000) EX-100-3 (2008) EX-100WD (2008) EX-120 (2008) EX-120-2 (2008) EX-160WD (2008) EX-200 (2008) EX-200-2 (2008) EX-200-3 EX-220 (2008) EX-220-2 (2008) EX-270 (2008) EX-300 (2008) EX-300-2 (2000) EX-400 Type A (2006) EX-400 Type B (2006) EX-60 (2003) EX-60-2 (2000) EX-60-3 (2008) EX-70 (2017) LX-110-7 (2008) LX-130-7 (2008) LX-150-2 (2008) LX-160-7 (2008) LX190-7/LX230-7 (2008) Zaxis 190-3 ZAXIS 200-5A (2018) ZAXIS 200LC-5A (2018) ZAXIS 210H-5A (2018) ZAXIS 210K-5A (2018) ZAXIS 210LCH-5A (2018) ZAXIS 210LCK-5A (2018) ZAXIS 330-5G (2017) ZAXIS 350H-5G (2017) ZAXIS 48U-5A (2020) ZAXIS 850-3 ZAXIS 870H-3 ZX-110 (2008) ZX-160W (2008) ZX-200 (2008) ZX-230 (2008) ZX-25 (2008) ZX-270 (2008) ZX-330 (2010) ZX-330-3 (Part № PIHH-I-3) (2008) ZX-330-3 (Part № PIHH-I-5) (2013) ZX-330-3G (2008) ZX-400R-3 (2010) ZX-450 (2006) ZX-600 (2007) Компоненты EX-100-2 (2000) Компоненты EX-100WD (2008) Компоненты EX-120 (2008) Компоненты EX-120-2 (2008) Компоненты EX-160WD (2008) Компоненты EX-200 (2008) Компоненты EX-200-2 (2008) Компоненты EX-200-3(LC, H) Компоненты EX-220 (2008) Компоненты EX-220-2 (2008) Компоненты EX-270 (2008) Компоненты EX-300 (2008) Компоненты EX-300-2 (2000) Компоненты EX-400 Type A (2006) Компоненты EX-400 Type B (2006) Компоненты EX-60 (2003) Компоненты EX-60-2 (2000) Компоненты EX-60-3 (2008) Компоненты ZAXIS 450, 470, 500, 520 (2010) Компоненты ZX-110 (2008) Компоненты ZX-120 (130) (2008) Компоненты ZX-160W (2008) Компоненты ZX-200 (2008) Компоненты ZX-230 (2008) Компоненты ZX-270 (2008) Компоненты ZX-330 (2008) Компоненты ZX-450 (2006)

Схема > Не выбрано FRAME BOOM FOOT PIN CENTER JOINT PARTS (UPPERSTRUCTURE) COUNTERWEIGHT ENGINE ENGINE SUPPORT OIL FILTER PIPING INTER COOLER PIPING INTER COOLER NET RADIATOR RADIATOR SUPPORT RADIATOR COVER RESERVE TANK AIR CLEANER AIR CLEANER SUPPORT MUFFLER FUEL TANK FUEL TANK SUPPORT FUEL PIPING FUEL FEED PUMP PUMP DEVICE PUMP DEVICE SUPPORT SWING DEVICE SWING DEVICE SUPPORT OIL TANK SUCTION PIPING DELIVERY PIPING RETURN PIPING (1) RETURN PIPING (2) DRAIN PIPING MAIN PIPING (1) MAIN PIPING (2) MAIN PIPING (3) MAIN PIPING (4) MAIN PIPING (5) MAIN PIPING (6) BOOM BOTTOM PIPING STEERING PIPING (UPPERSTRUCTURE) STEERING PIPING (UPPERSTRUCTURE) ENGINE CONTROL ENGINE CONTROL MOTOR ENGINE STOP CABLE CONTROL LEVER (FRONT, SWING) BLADE LEVER CONTROL PEDAL (ACCELERATOR & BRAKE) SPARE PEDAL FOOT REST STEERING DEVICE COLUMN BOX INDICATOR PANEL LOCK LEVER SWING LOCK CONTROL VALVE CONTROL VALVE SUPPORT SOLENOID VALVE PILOT PIPING (A) PILOT PIPING (B) PILOT PIPING (C-1) PILOT PIPING (C-2) PILOT PIPING (D-1) PILOT PIPING (D-2) PILOT PIPING (D-3) PILOT PIPING (E-1) PILOT PIPING (E-2) PILOT PIPING (F-1) PILOT PIPING (F-2) PILOT PIPING (G) PILOT PIPING (H) PILOT PIPING (I) PILOT PIPING (J) BRAKE PIPING (1) BRAKE PIPING (2) BRAKE PIPING (3) TRANSMISSION PIPING (1-1) TRANSMISSION PIPING (1-2) CONSOLE CONSOLE COVER RIGHT COVER RADIO (AM/FM) RADIO LESS PARTS CONTROL UNIT ELECTRIC PARTS (A) ELECTRIC PARTS (B) ELECTRIC PARTS (C) ELECTRIC PARTS (D) ELECTRIC PARTS (E) SWITCH BOX (OR) SATELLITE DATA COMMUNICATOR PARTS FRONT HEAD LAMP (2 LAMP) FRONT HEAD LAMP (2 LAMP WITH SUNSHADE) FRONT HEAD LAMP (4 LAMP) FRONT HEAD LAMP (4 LAMP WITH SUNSHADE) REAR HEAD LAMP (1 LAMP) <EU> REAR HEAD LAMP (2 LAMP) ROTATING BEACON BOOM LIGHT HARNESS (MONO BOOM) BOOM LIGHT HARNESS (2P-B00M) BOOM LIGHT (R) HORN AIR CONDITIONER (1) AIR-CON. UNIT AIR CONDITIONER (2) AIR CONDITIONER (3) AIR CONDITIONER (4) COMPRESSOR CONDENSER NET HEATER PIPING CAR HEATER DUCT (AIR-CON.) DUCT (HEATER) REAR BOX (AIR-CON.) REAR BOX (HEATER) REAR BOX (HEATER LESS) REAR BOX (12V POWER SUPPLY) POWER UNIT (12V) CAB GROUP CAB (STD) CAB (WITH GUARD SEAT) CAB (WITH VANDAL HOOK) CAB (OPG) CAB (1) CAB (2) CAB (3) CAB (3) (WITH VANDAL HOOK) CAB (4) CAB (5) CAB (6) CAB (7) CAB (8) (OPG) CAB GUARD CAB GUARD WINDOW GUARD REARVIEW MIRROR (LEFT) <EU> REAR VIEW MIRROR (RIGHT) <EU> WINDOW WASHER SUNSHADE SUNVISOR FLOOR PARTS FLOOR PARTS (HEATER LESS) FLOOR PLATE SUSPENSION SEAT (WITHOUT HEATER) SUSPENSION SEAT (WITH HEATER) AIR-SUSPENSION SEAT (WITH HEATER) HEATER SEAT PARTS ARM REST SEAT BELT SEAT STAND COVER (1) COVER (2) COVER (3) COVER (4) DOOR LOCK (1) DOOR LOCK (2) ENGINE COVER TOOL COVER UNDER COVER CHASSIS SWING BEARING SWING BEARING PARTS POWER TRAIN AXLE WIDE TRAVEL MOTOR 20K TIRE STOPPER TOOL BOX STEP RIGHT TOOL BOX CENTER JOINT CENTER JOINT SUPPORT (CARRIER) STEERING PIPING (CARRIER) FRONT PIPING FRONT PIPING REAR PIPING REAR PIPING BRAKE PIPING (CARRIER) TRANSMISSION PIPING (CARRIER) RAM PIPING TRAVEL PIPING CLAM PIPE PARTS MONO BOOM ARM 2.01M (MONO BOOM) <JPN> <EXPORT> ARM 2. 22M (MONO BOOM) <EU> ARM 2. 58M (MONO BOOM) ARM 3.10M LINK A LINK A (WITH HOOK) LINK В FRONT PIPING (MONO BOOM) BOOM CYLINDER (R) (MONO BOOM) BOOM CYLINDER (L) (MONO BOOM) ARM CYLINDER (MONO BOOM) BUCKET CYLINDER LUBRICATE PIPING (MONO BOOM) BUCKET 0.52 (JIS 94) BUCKET 0.60 (JIS 94) BUCKET 0.70 (JIS 94) BUCKET 0.82 (JIS 94) RIPPER BUCKET 0.6 (JIS 94) ONE-POINT RIPPER SLOPE-FINISHING BLADE V-TYPE BUCKET 0.4 (JIS 94) HOSE RUPTURE VALVE PIPING (BOOM) (MONO BOOM) HOSE RUPTURE VALVE PIPING (ARM) (MONO BOOM) OVER LOAD ALARM DEVICE (MONO BOOM) 2P-B00M ARM 2.21M (2P-B00M) <EU> ARM 2. 50M (2P-B00M) <EU> FRONT PIPING (2P-B00M) FRONT PIPING (WITH BALL VALVE) (2P-B00M) BOOM CYLINDER (R) (2P-B00M) BOOM CYLINDER (L) (2P-B00M) ARM CYLINDER (2P-B00M) BOOM CYLINDER PIPING (WITH BALL VALVE) (2P-B00M) POSITIONING CYLINDER LUBRICATE PIPING (2P-B00NI) SPARE MAIN PIPING (2P-B00M) SPARE PILOT PIPING (2P-B00M) SPARE FLOW PATE SELECTOR (2P-B00M) HOSE RUPTURE VALVE PIPING (BOOM) (2P-B00M) HOSE RUPTURE VALVE PIPING (ARM) (2P-B00M) HOSE RUPTURE VALVE PIPING (POSITIONING) OVER LOAD ALARM DEVICE (2P-B00M) BLADE WIDE BLADE BLADE PIPING PTO PARTS (BLADE & OUTRIGGER) OUTRIGGER OUTRIGGER PIPING OUTRIGGER PIPING OUTRIGGER PIPING OUTRIGGER PIPING OUTRIGER PIPING (CARRIER) PILOT PIPING (OR) PILOT PIPING (ATT) MAIN PIPING (BREAKER & CRUSHER) SPARE PILOT PIPING (BREAKER & CRUSHER) BOOM PIPING (BREAKER & CRUSHER) <JPN> <EXPORT> BOOM PIPING (BREAKER & CRUSHER) <EU> BOOM PIPING (BREAKER & CRUSHER) (2P-B00M) <EU> ARM PIPING (BREAKER & CRUSHER) (2.21M, 2. 22M ARM) <EU> ARM PIPING (BREAKER & CRUSHER) (2.50M ARM) <EU> ARM PIPING (BREAKER & CRUSHER) (2.58M ARM) <JPN> <EXPORT> ARM PIPING (BREAKER & CRUSHER) (2.58M ARM) <EU> ARM PIPING (BREAKER & CRUSHER) (3.10M ARM) <EU> HSB BREAKER PIPING (MONO BOOM) HSB BREAKER PIPING (2P-B00M) HSB COMMON PIPING (BREAKER & CRUSHER) (MONO BOOM) HSB COMMON PIPING (BREAKER & CRUSHER) (2P-B00M) QUICKHITCH PIPING (MONO BOOM) <EU> QUICKHITCH PIPING (2P-B00M) <EU> QUICKHITCH PIPING (2.21M, 2. 22M ARM) <EU> QUICKHITCH PIPING (2.50M ARM) <EU> QUICKHITCH PIPING (2.58M ARM) <EU> QUICKHITCH PIPING (3.10M ARM) <EU> ASSIST PIPING (MONO BOOM) <EU> ASSIST PIPING (2P-B00M) <EU> ASSIST PIPING (2.21M, 2.22M ARM) <EU> ASSIST PIPING (2.50M ARM) <EU> ASSIST PIPING (2.58M ARM) <EU> ASSIST PIPING (3.10M ARM) <EU> QUICKHITCH / ASSIST COMMON PARTS (MONO BOOM) QUICKHITCH / ASSIST COMMON PARTS (2P-B00M) CLAMSHELL PIPING (2.21M. 2.22M ARM) <EU> CLAMSHELL PIPING (2.50M, 2.58M ARM) <EU> CLAMSHELL PIPING (3.10M ARM) <EU> QUICKHITCH / CLAMSHELL COMMON PARTS (ARM) TOOLS NAME PLATE 1 NAME PLATE 2 NAME PLATE 3 NAME PLATE 4

8082537

1

2

3

4

5

5

5

5

5

6

Позиция на иллюстрации	Заводской номер детали		Название детали
8082537	8082537		PIPE, AIR
1	4423995		HOSE, AIR
2	4411793		HOSE, AIR
3	4447871		H0SE, AIR
4	4504199		CLAMP, HOSE
5	4504491		CLAMP, HOSE
6	J021030		BOLT, SEMS

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
