9134245
3085050
4172348
1
3
4
5
6
7
8
102
103

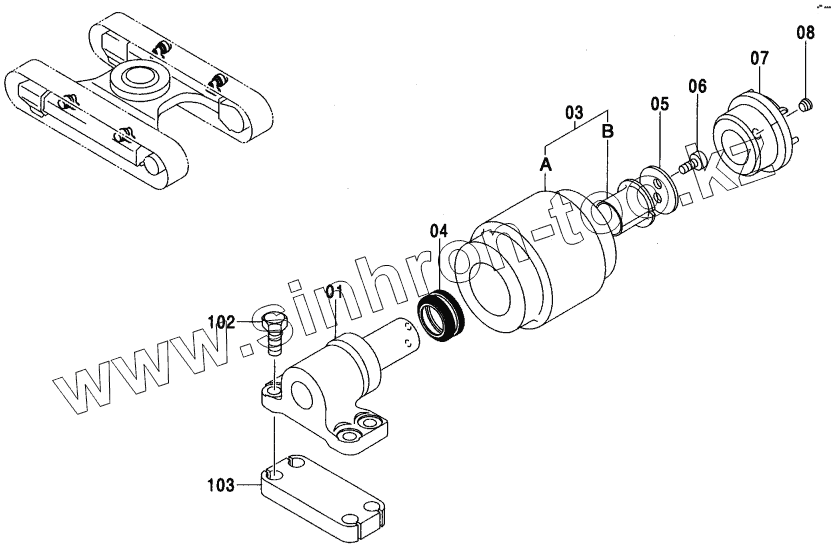

Позиция на иллюстрации
Заводской номер детали
Название детали
9134245
9134245
ROLLER, UPPER ASSY
3085050
3085050
ROLLER
4172348
4172348
BUSHING
1
9089659
BRACKET ASSY
3
9178332
ROLLER ASSY
4
4317584
SEAL, GROUP
5
4282842
WASHER
6
М351018
BOLT, SOCKET
7
3070078
COVER
8
4315607
PLUG
102
J931670
BOLT
103
4449817
SPACER
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
