4262265
4262265

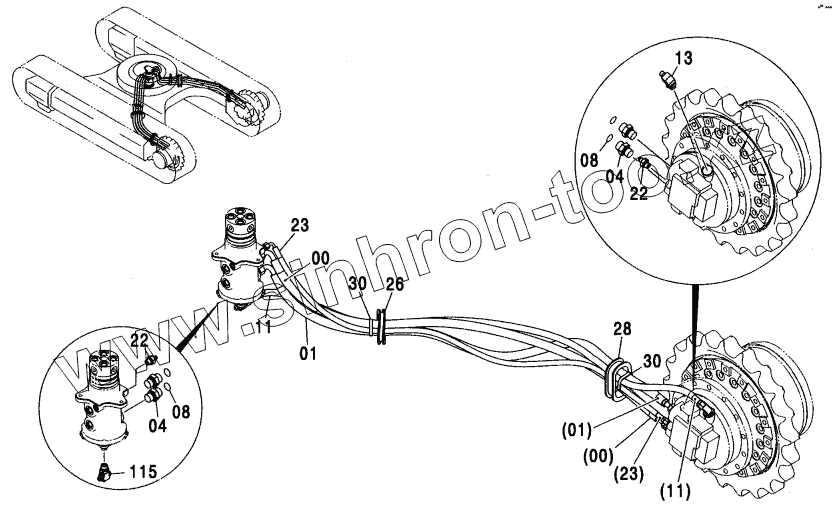

TRAVEL PIPING
1
1
4
4
8
8
11
11
13
14
22
22
23
23
26
28
30
30
41
115
116
220
Позиция на иллюстрации
Заводской номер детали
Название детали
4262265
4262265
HOSE
TRAVEL PIPING
TRAVEL PIPING
TRAVEL PIPING
1
4262269
HOSE
4
А853144
ADAPTER, S
8
4138938
O-RING
11
4447476
HOSE, PLASTIC
13
А852333
ELBOW, S
14
4509180
O-RING
22
А852122
ADAPTER, S
23
4447490
HOSE, PLASTIC
26
4445210
BUSHING, RUBBER
28
4426662
BUSHING, RUBBER
30
4121859
CLIP, BAND
41
4506418
O-RING
115
А852543
TEE, S
116
4506418
O-RING
220
957366
O-RING
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
Дополнительная информация
×
Название:
Номер:
Примечание:
